Seat Belt Warning System: Notes

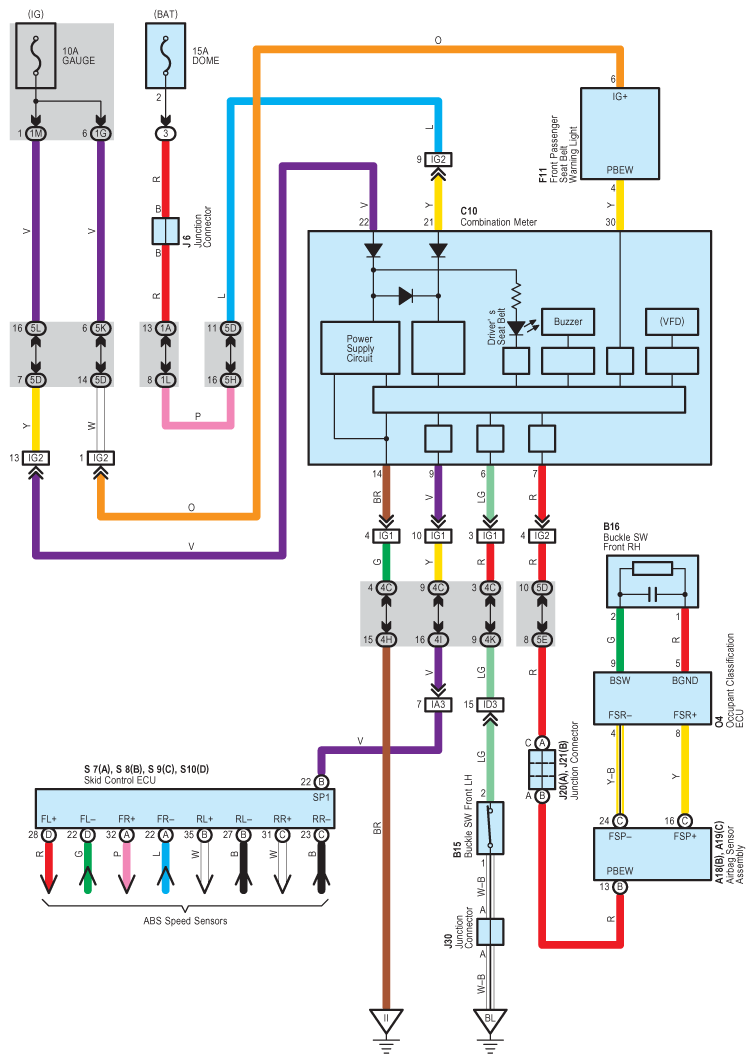

Fig 1: Seat Belt Warning - Circuit Diagram
G07577029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
