General Maintenance

HINT:

Work in a well-lighted area. Turn the front wheels fully to the right or left before beginning the inspection.

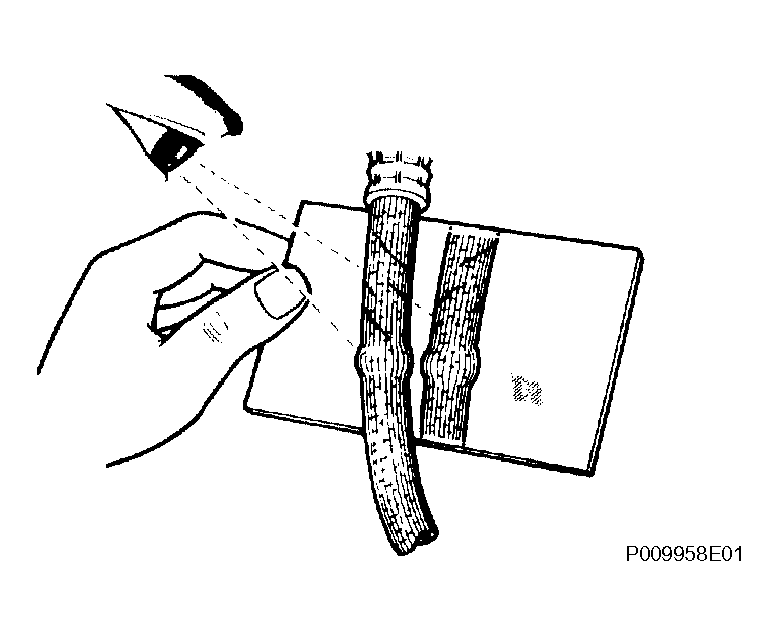

Fig 1: Inspecting Condition Of Brake Lines And Hoses

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a mirror, check the entire circumference and length of the brake lines and hoses for:
   • Damage
   • Wear
   • Deformation
   • Cracks
   • Corrosion
   • Leaks
   • Bends
   • Twists
2. Check all the clamps for tightness and the connections for leakage.
3. Check that the hoses and lines are not near sharp edges, moving parts or the exhaust system.
4. Check that the lines are installed properly and pass through the center of the grommets.

1. See INSPECTION

1. Check the front brake pads and discs. (See INSPECTION

1. Check the rear brake pads and discs. (See INSPECTION

(See INSPECTION

1. Inspect or change the brake fluid. (See ON-VEHICLE INSPECTION

   Fluid:

   SAE J1703 or FMVSS No. 116 DOT3
