Home >> Toyota >> 2008 >> Sequoia Platinum, RWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control/Dynamic Control Systems >> Brake Actuator >> Components

Brake Actuator: Components

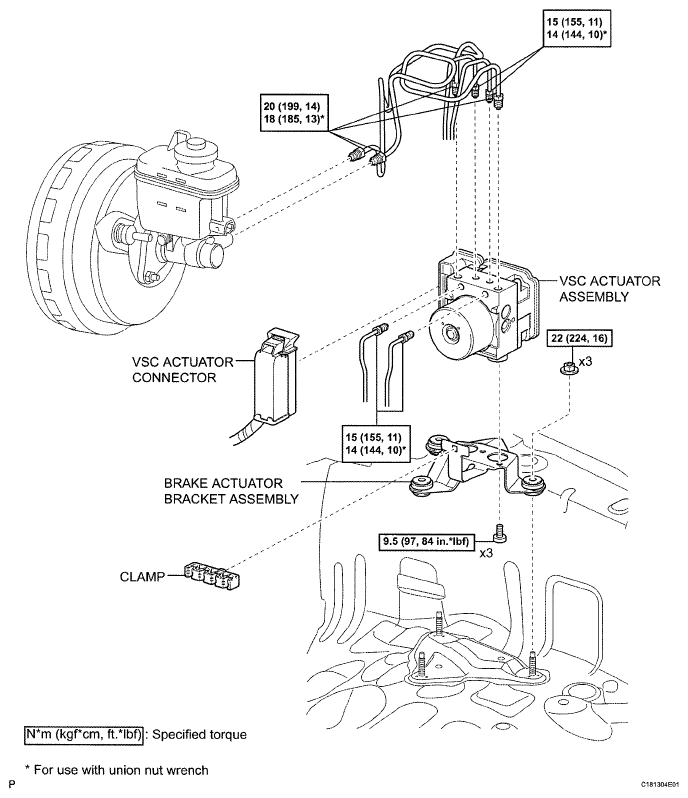

Fig 1: Brake Actuator Replacement Components With Torque Specifications

G05649592

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
