Skid Control Buzzer: Components

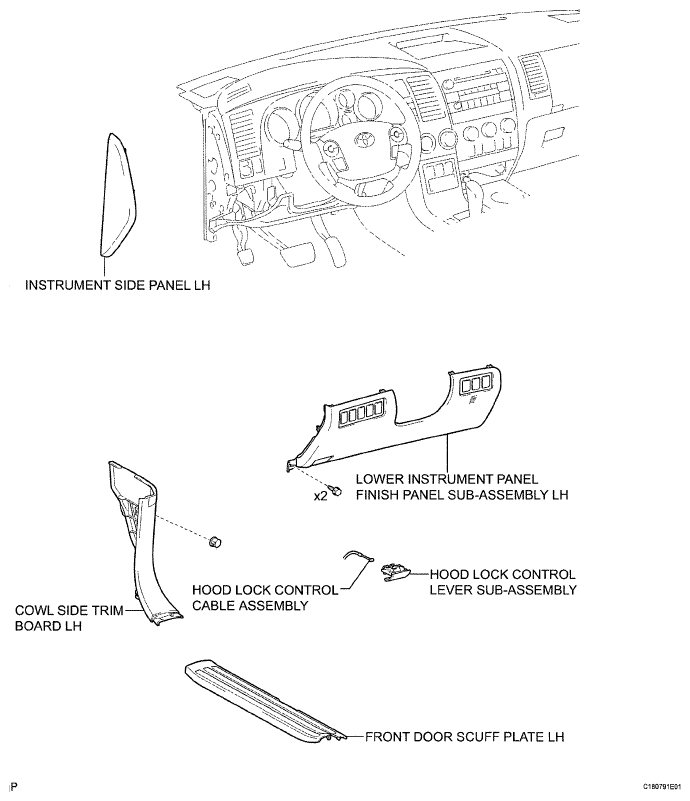

Fig 1: Identifying Skid Control Buzzer Replacement Components (1 Of 2)
G05649621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

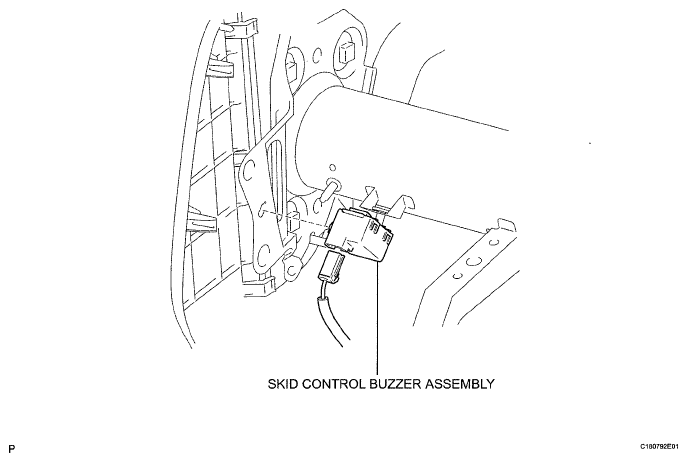

Fig 2: Identifying Skid Control Buzzer Replacement Components (2 Of 2)
G05649622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
