Home >> Toyota >> 2008 >> Sequoia Platinum, RWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control/Dynamic Control Systems >> Steering Angle Sensor >> Components

Steering Angle Sensor: Components

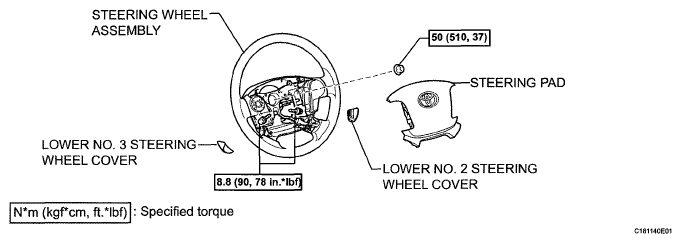

Fig 1: Identifying Steering Angle Sensor Replacement Components With Torque Specifications (1 Of 2)
G05649617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

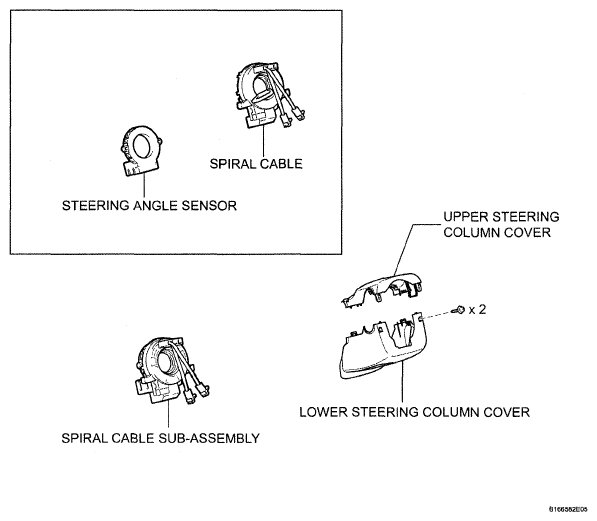

Fig 2: Identifying Steering Angle Sensor Replacement Components With Torque Specifications (2 Of 2)
G05159873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
