Home >> Toyota >> 2008 >> Sequoia Platinum, RWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control/Dynamic Control Systems >> Yaw Rate And Deceleration Sensor >> Components

Yaw Rate And Deceleration Sensor: Components

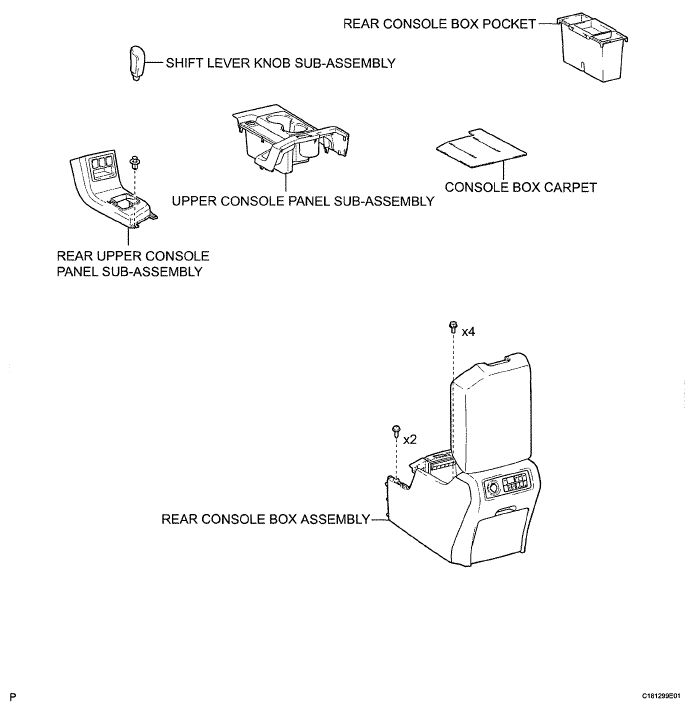

Fig 1: Identifying Yaw Rate And Deceleration Sensor Replacement Components With Torque Specifications (1 Of 2)
G05649613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

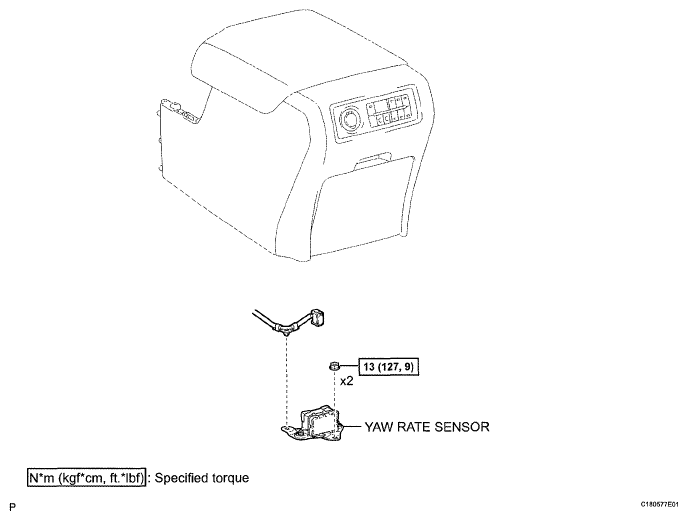

Fig 2: Identifying Yaw Rate And Deceleration Sensor Replacement Components With Torque Specifications (2 Of 2)
G05649614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
