System Diagram

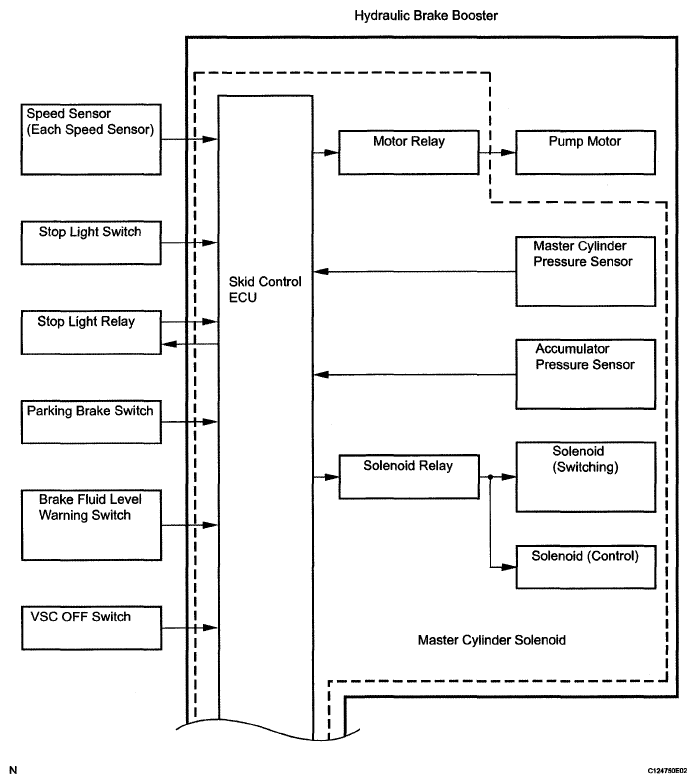

Fig 1: Vehicle Stability Control System Diagram (1 Of 2)
G05199161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

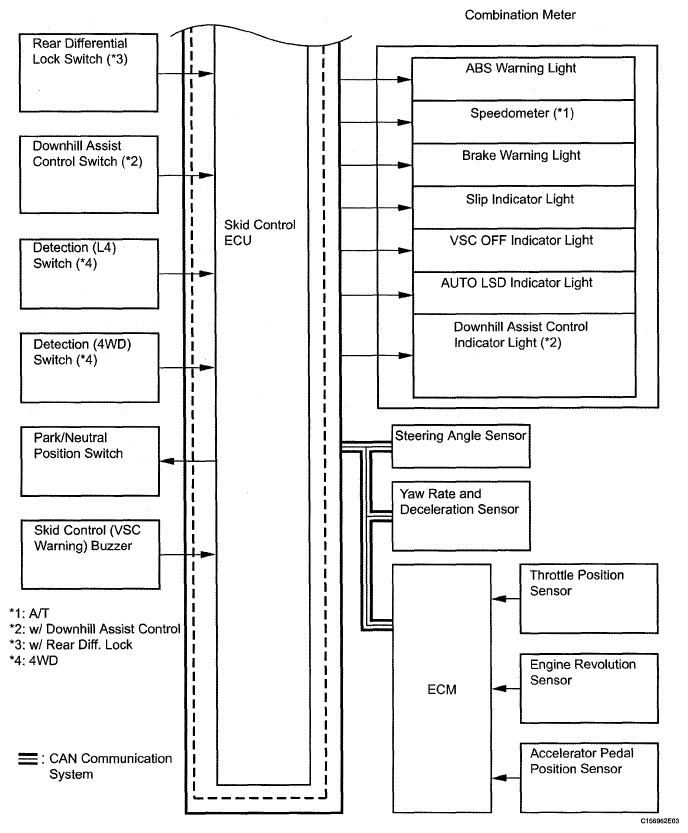

Fig 2: Vehicle Stability Control System Diagram (2 Of 2)
G05678077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TRANSMITTER SIGNALS REFERENCE

Transmitting ECU (Transmitter) Receiving ECU Signals Communication Method
ECM Skid control ECU Throttle position signal CAN communication system
ECM Skid control ECU Engine revolution signal CAN communication system
ECM Skid control ECU Accelerator pedal position signal CAN communication system
ECM Skid control ECU Intake temperature signal CAN communication system
Skid control ECU ECM Yaw rate and deceleration signal CAN communication system
Skid control ECU ECM Steering angle signal CAN communication system
Skid control ECU ECM Throttle opening angle request signal CAN communication system
