Front Speed Sensor: Removal

  1. REMOVE FRONT WHEEL
  2. REMOVE FRONT FENDER LINER LH
  3. REMOVE FRONT SPEED SENSOR
    1. Disconnect the speed sensor connector and clamp.
      Fig 1: Locating Speed Sensor Connector And Clamp
      G05001628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and separate the speed sensor harness from the body and shock absorber assembly.

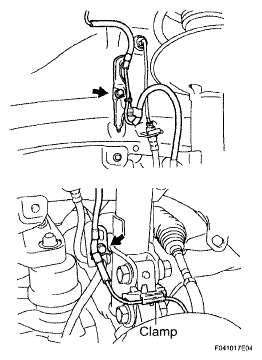

      Fig 2: Locating Speed Sensor Bolts
      G05001629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the clamp from the steering knuckle.
    4. Remove the bolt and the front speed sensor.
    NOTE:
    • Prevent foreign matter from attaching to the sensor tip.
    • Clean the installation hole and surface for the speed sensor every time the speed sensor is removed.
      Fig 3: Locating Front Speed Sensor Bolt
      G05001630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
