Power Window: Notes

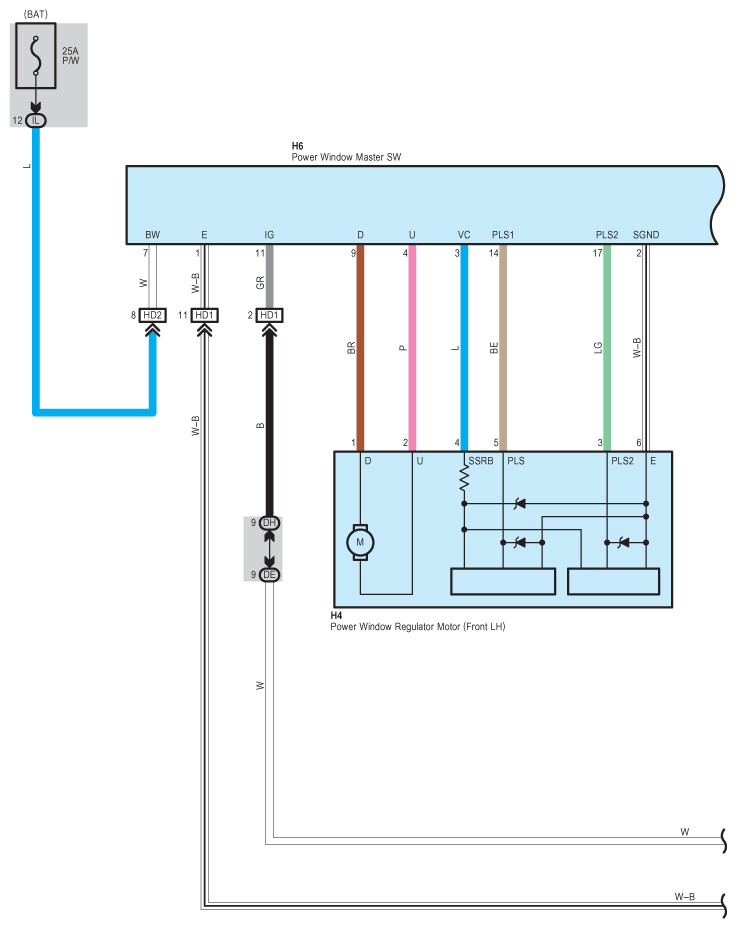

Fig 1: Power Window - Circuit Diagram (1 Of 4)
G07615169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

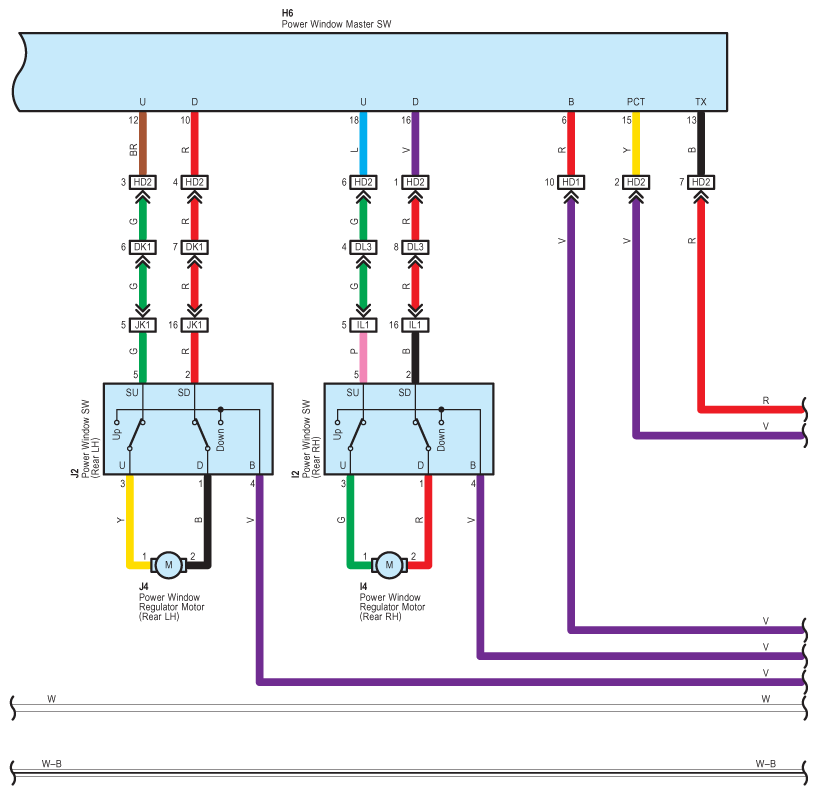

Fig 2: Power Window - Circuit Diagram (2 Of 4)
G07615170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

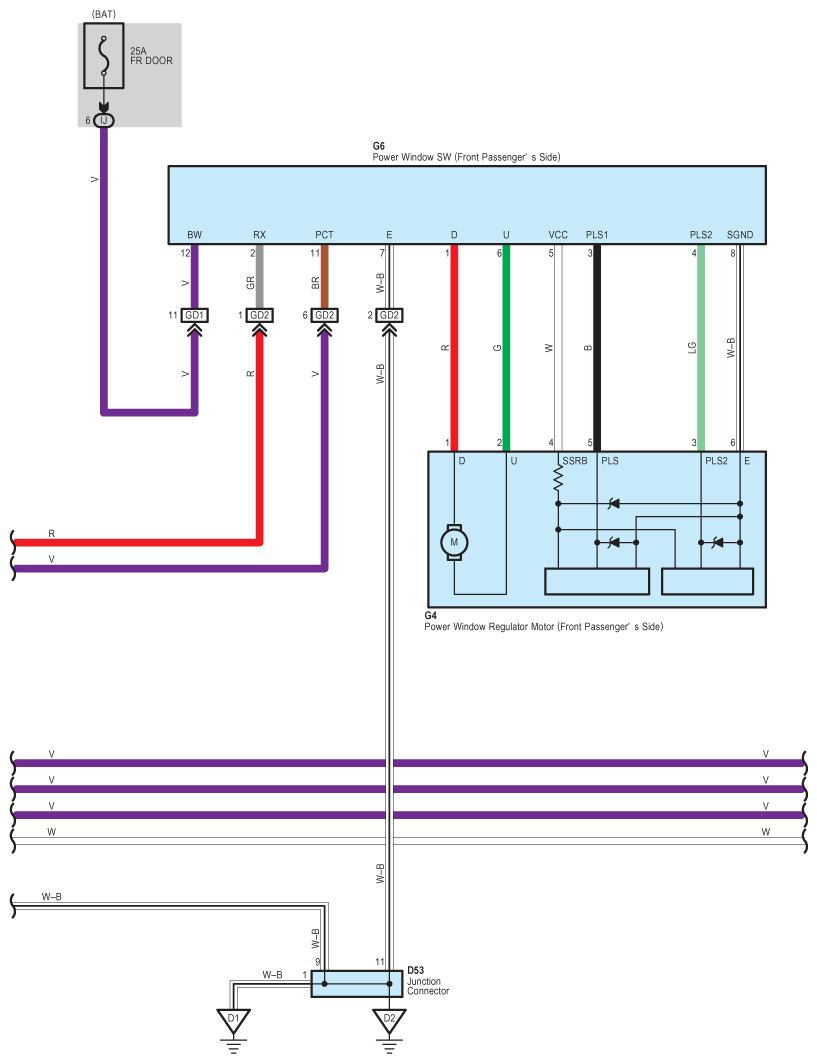

Fig 3: Power Window - Circuit Diagram (3 Of 4)
G07615171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

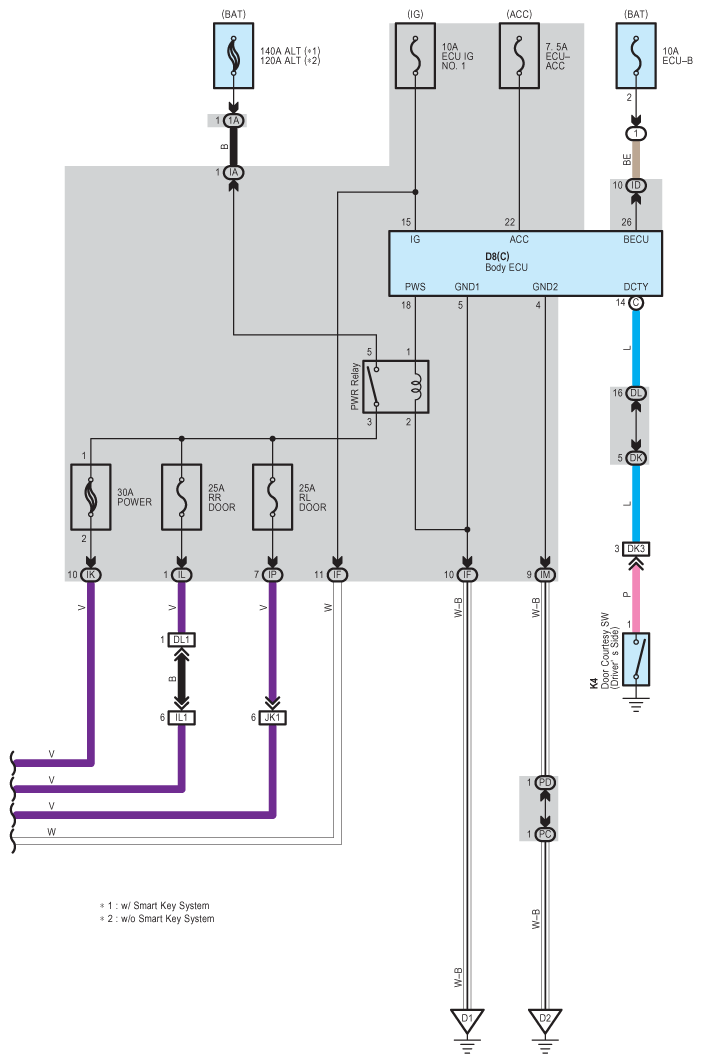

Fig 4: Power Window - Circuit Diagram (4 Of 4)
G07615172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
