Sliding Roof: Notes

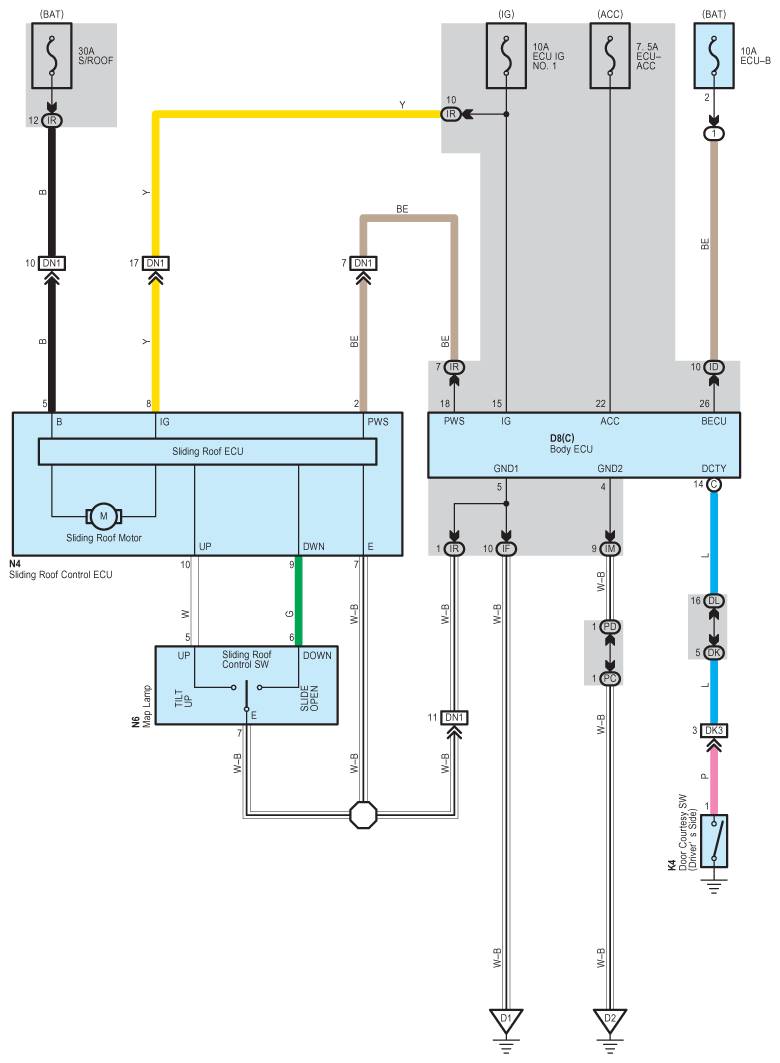

Fig 1: Sliding Roof - Circuit Diagram
G07615270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
