Knock Sensor: Components

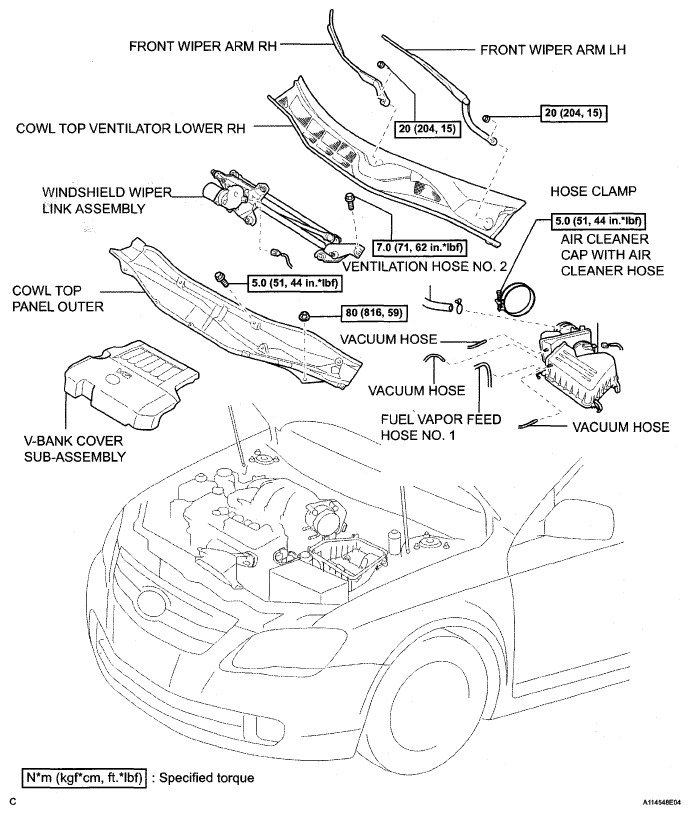

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications (1 Of 2)
G04996549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

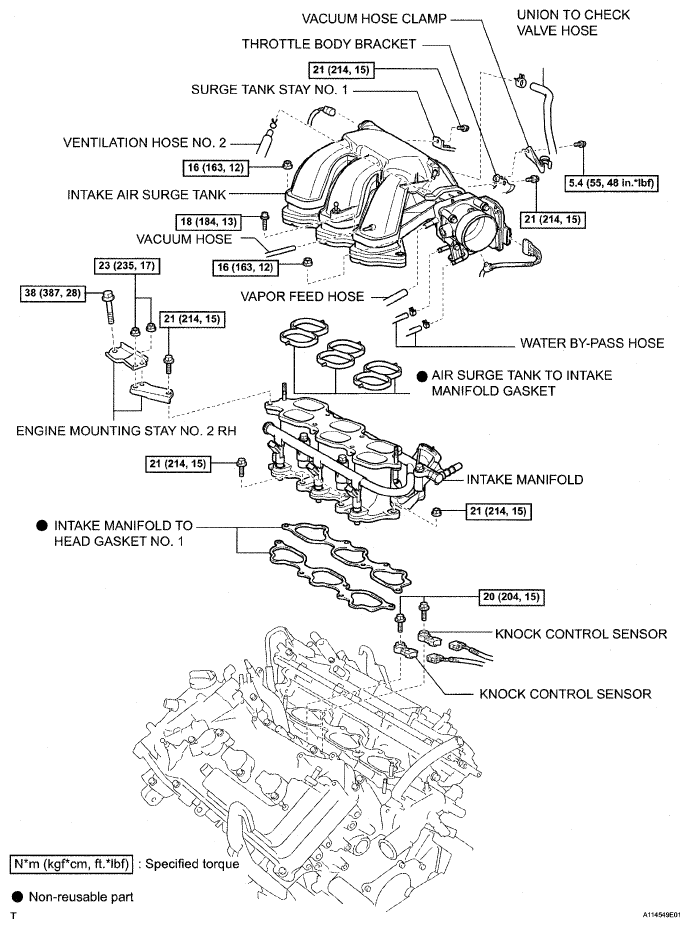

Fig 2: Identifying Knock Sensor Replacement Components With Torque Specifications (2 Of 2)
G04996550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
