Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00467266

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Dash & Center Console

G00467267

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Vehicle Overview

G00467268

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Front Seats

G00467269

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Engine Room R/B

G00467270

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Instrument Panel J/B

G00467271

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Engine Room R/B No. 7

G00467274

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Instrument Panel R/B No. 8

G00467275

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Compartment (1.8L)

G00467276

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine (1.8L)

G00467277

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Compartment (2.4L)

G00467278

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

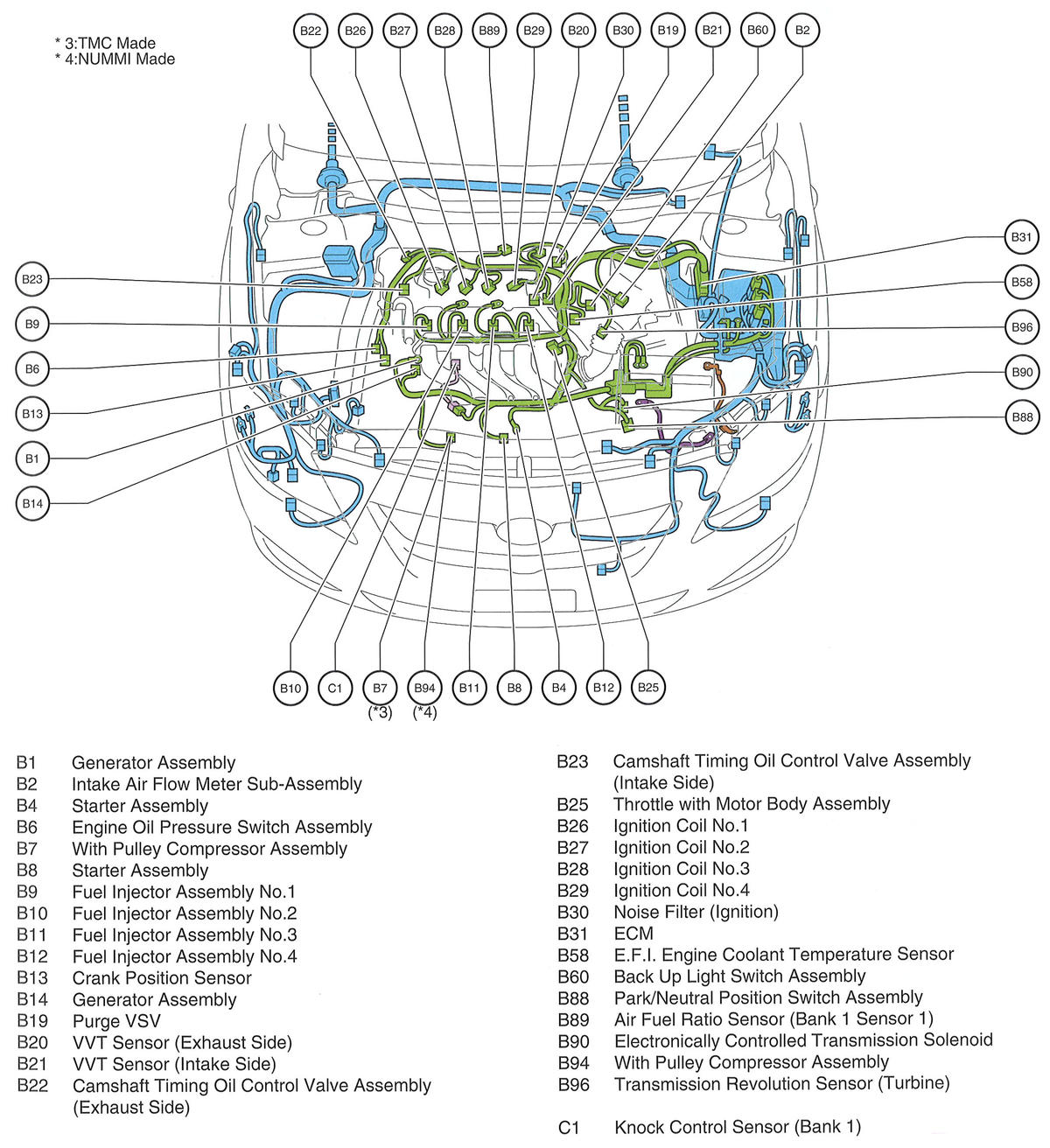

Fig 12: Engine (2.4L)

G00467279

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

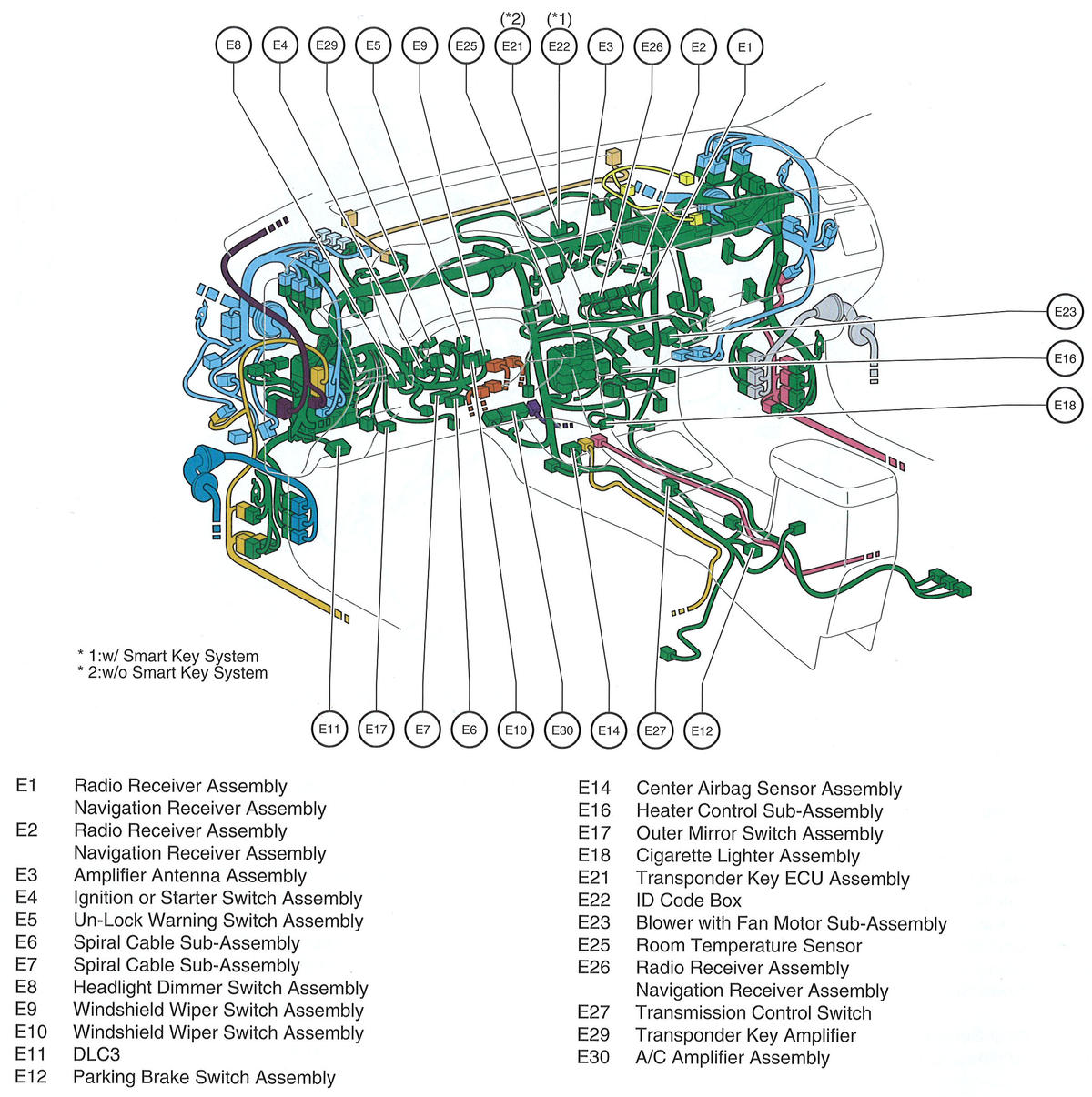

Fig 13: Dash & Center Console

G00467280

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

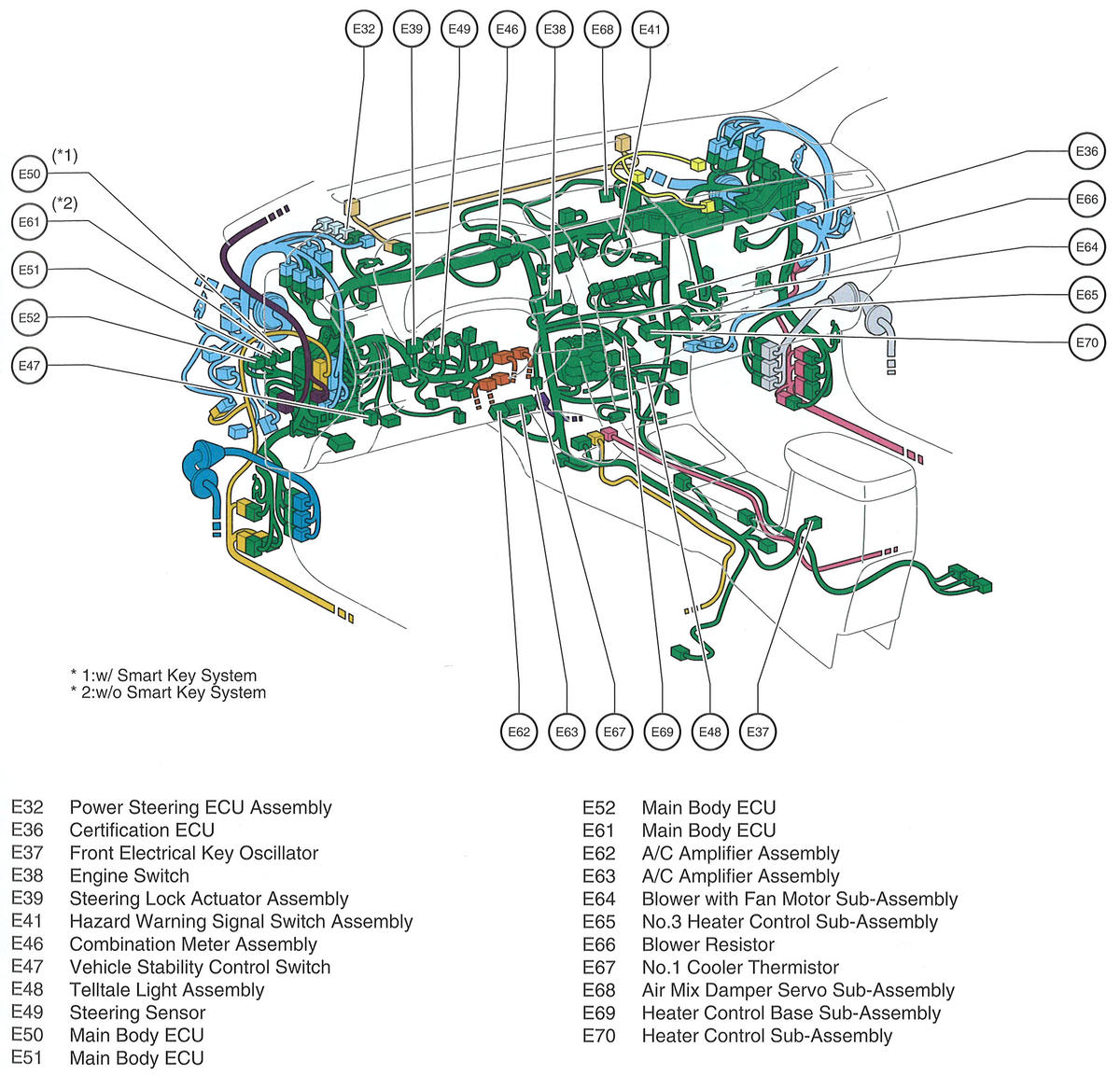

Fig 14: Dash & Center Console

G00467281

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

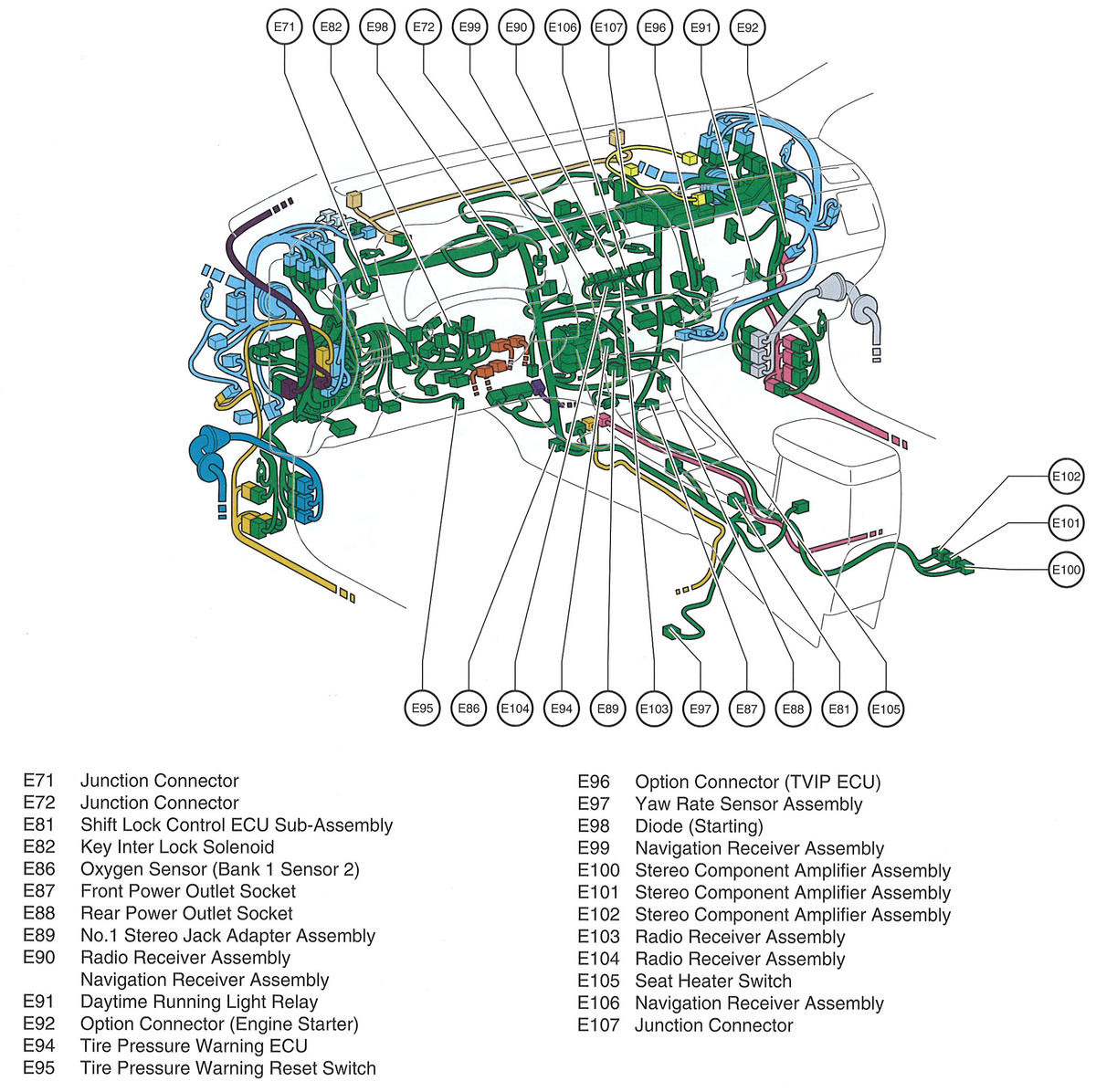

Fig 15: Dash & Center Console

G00467282

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Dash & Center Console

G00467283

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Doors

G00467284

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

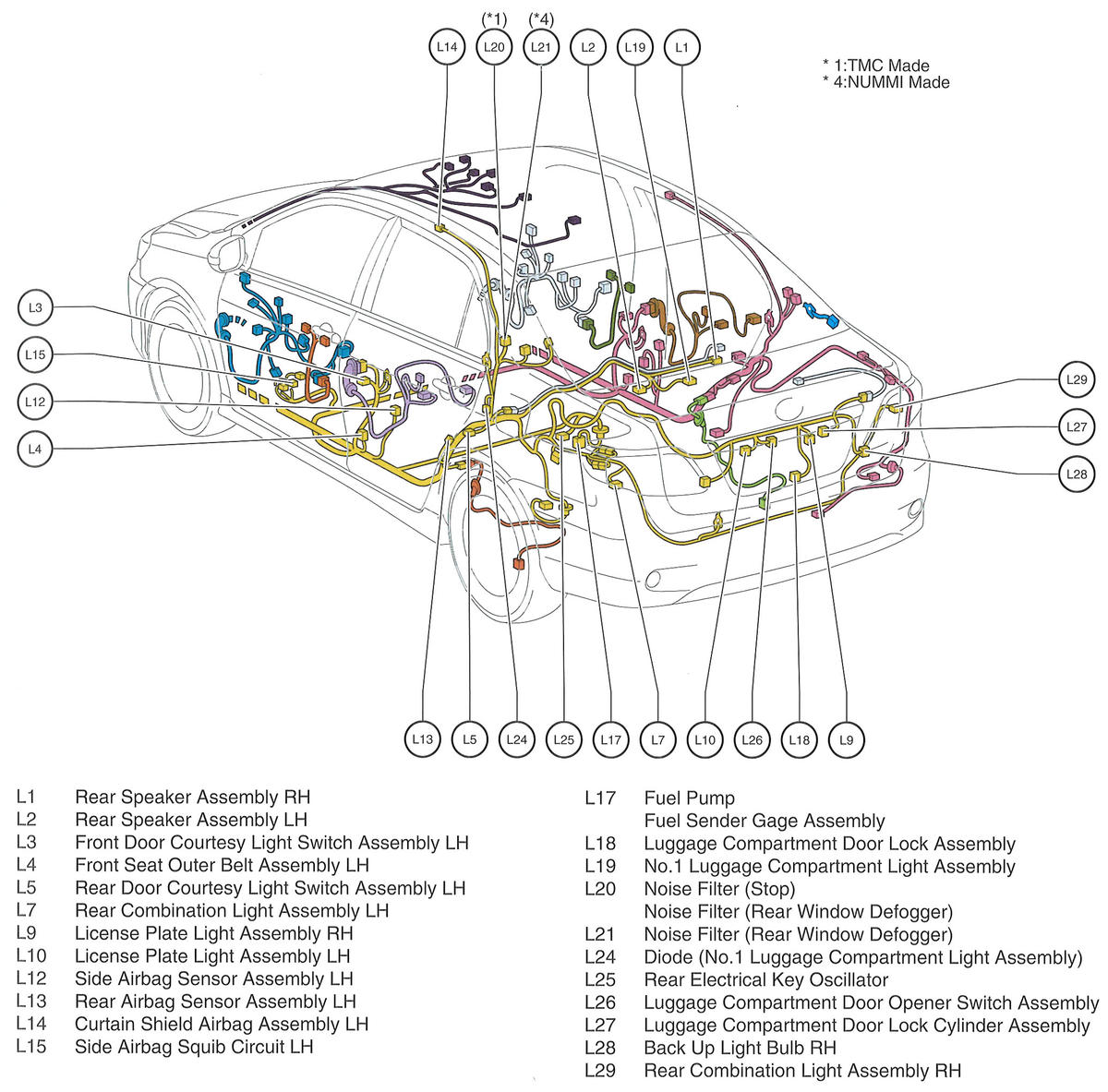

Fig 18: Vehicle Overview

G00467285

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Vehicle Overview

G00467286

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

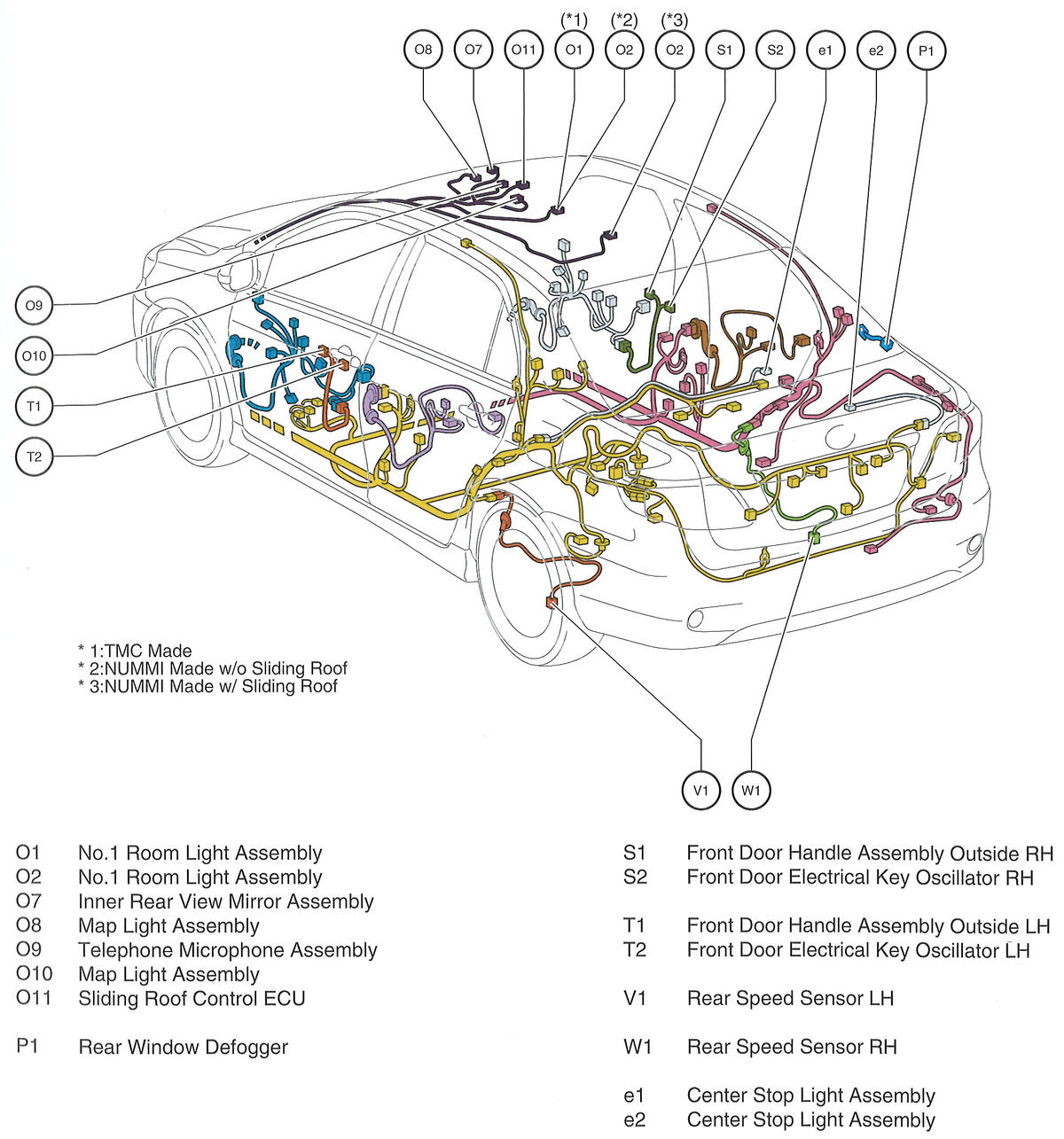

Fig 20: Vehicle Overview

G00467287

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Front Seats

G00467288

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Engine Compartment (1.8L)

G00467289

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Engine Compartment (2.4L)

G00467290

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: Dash & Center Console

G00467272

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 25: Dash & Center Console

G00467291

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

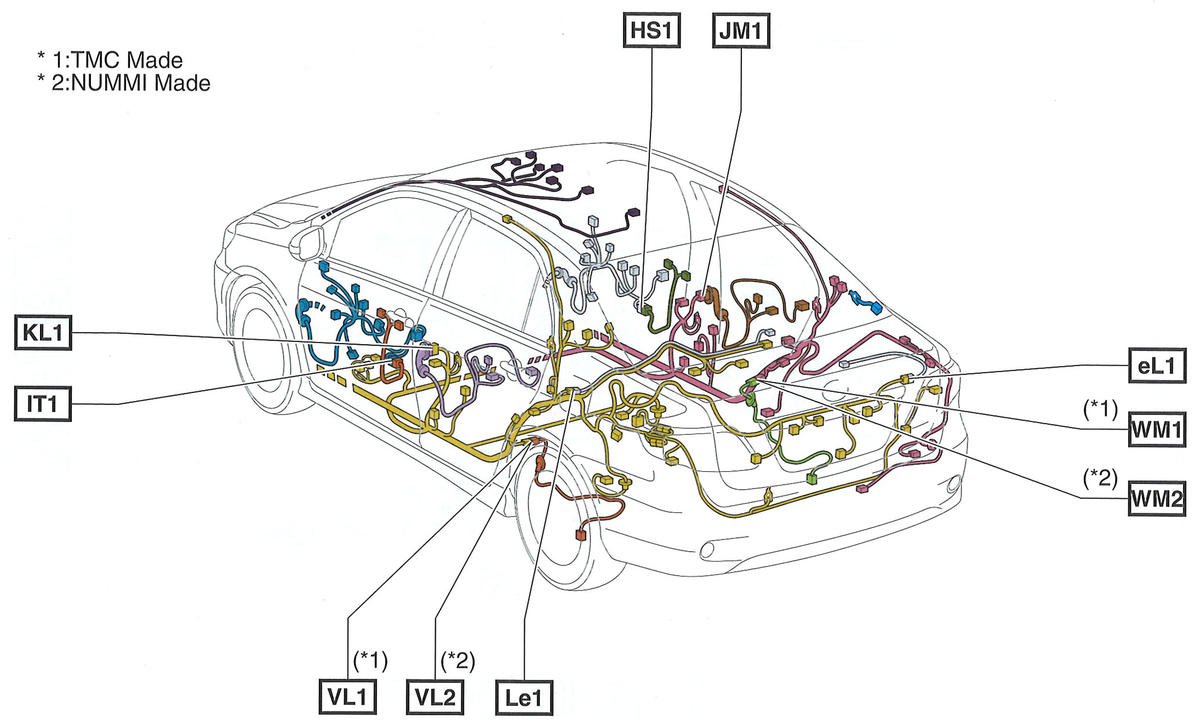

Fig 26: Vehicle Overview

G00467273

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 27: Vehicle Overview

G00467292

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 28: Front Seats

G00467293

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
