Steering Angle Sensor: Components

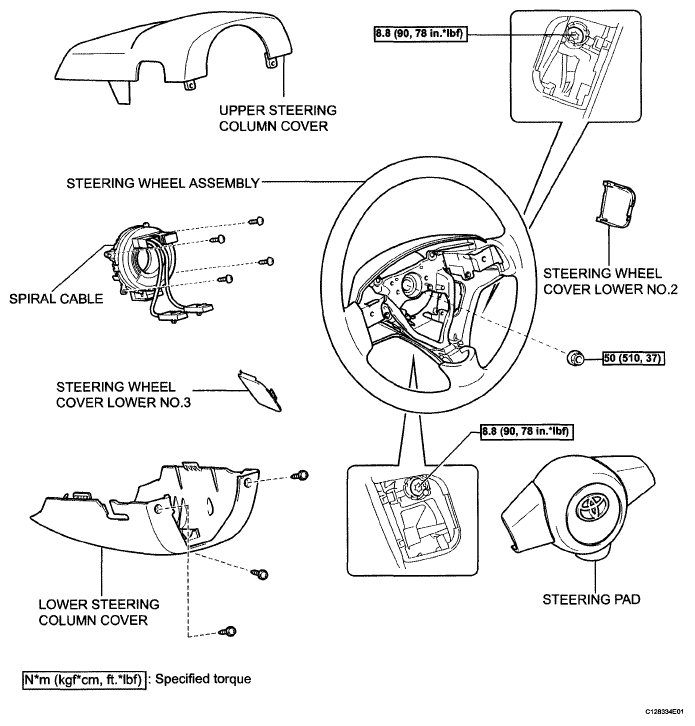

Fig 1: Identifying Steering Angle Sensor Replacement Components With Torque Specifications (1 Of 2)
G05112390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

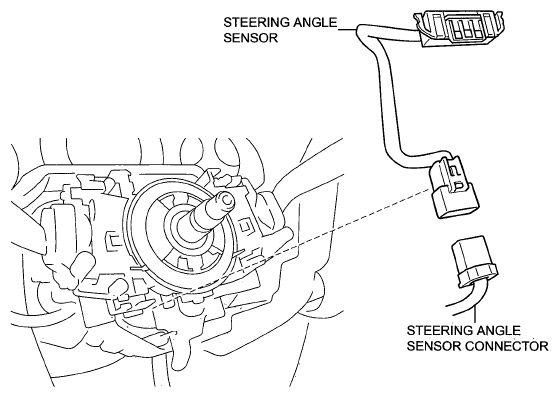

Fig 2: Identifying Steering Angle Sensor Replacement Components (2 Of 2)
G05579934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
