Home >> Toyota >> 2009 >> FJ Cruiser RWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control System >> Yaw Rate And Deceleration Sensor >> Components

Yaw Rate And Deceleration Sensor: Components

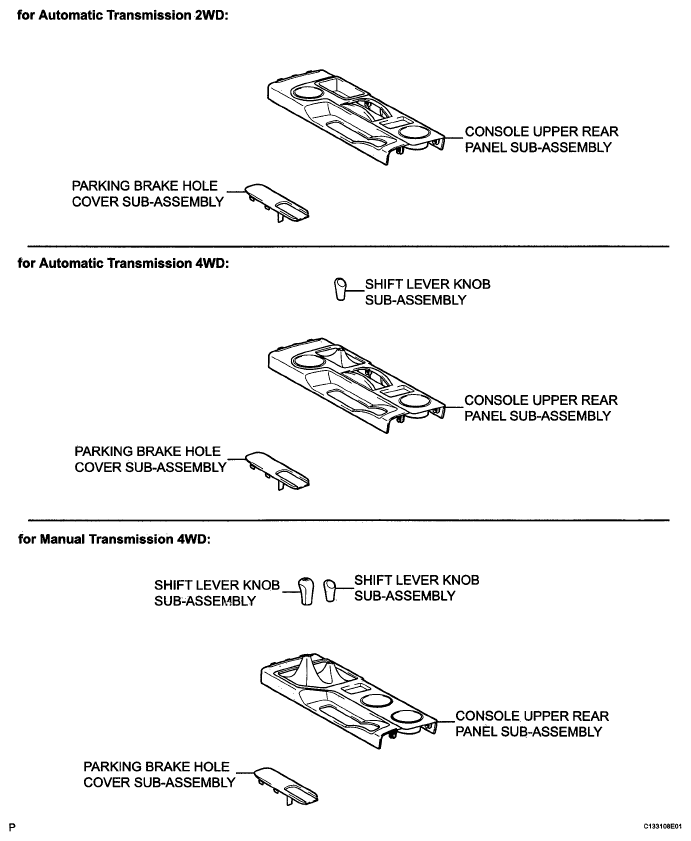

Fig 1: Identifying Yaw Rate And Deceleration Sensor Replacement Components (1 Of 2)
G05579929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

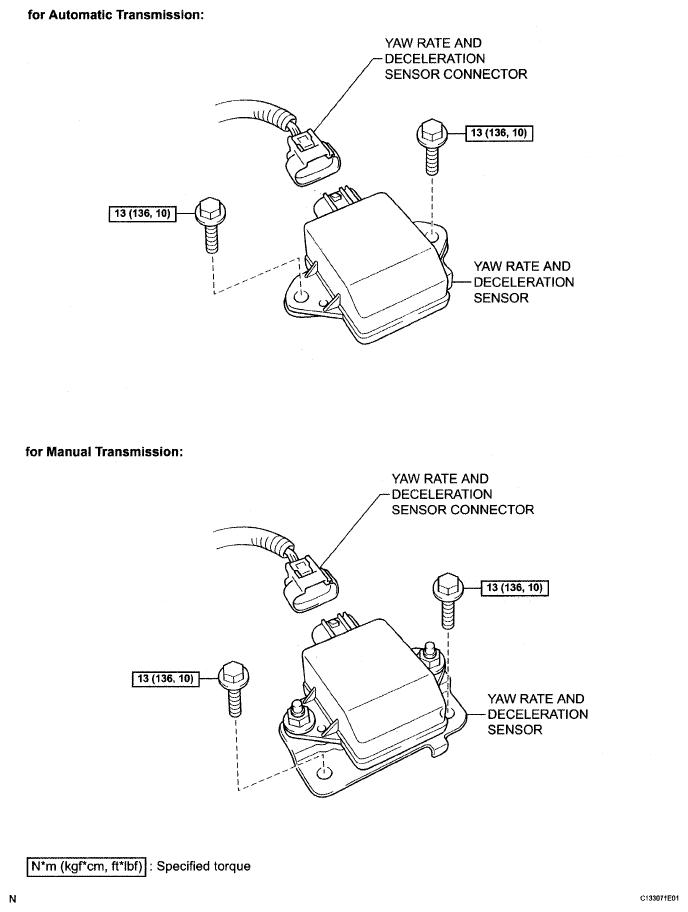

Fig 2: Identifying Yaw Rate And Deceleration Sensor Replacement Components With Torque Specifications (2 Of 2)
G05112387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
