Rear Speed Sensor
>>
Components
Rear Speed Sensor: Components

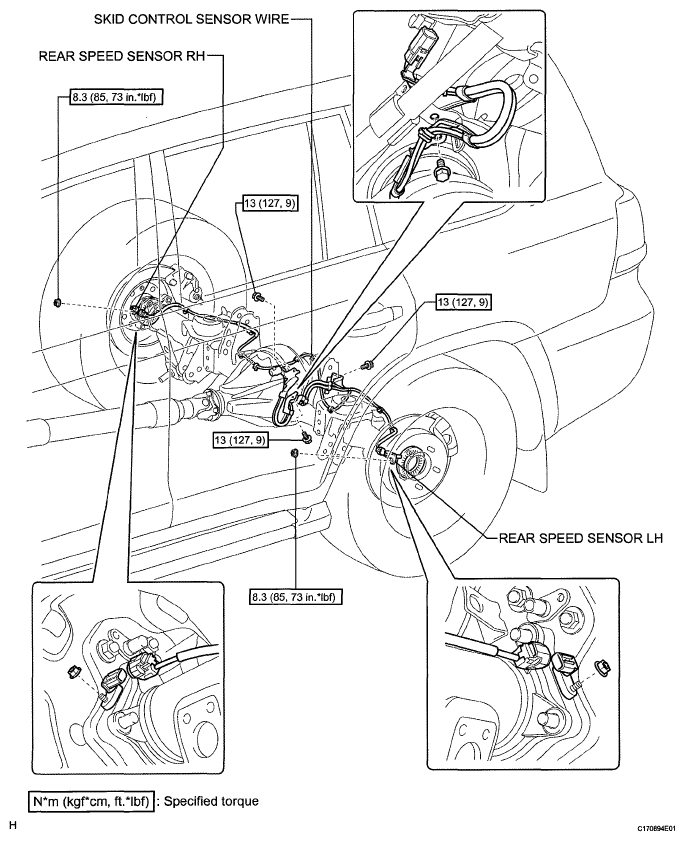

Fig 1: Rear Speed Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
