Towing Converter Relay: Components

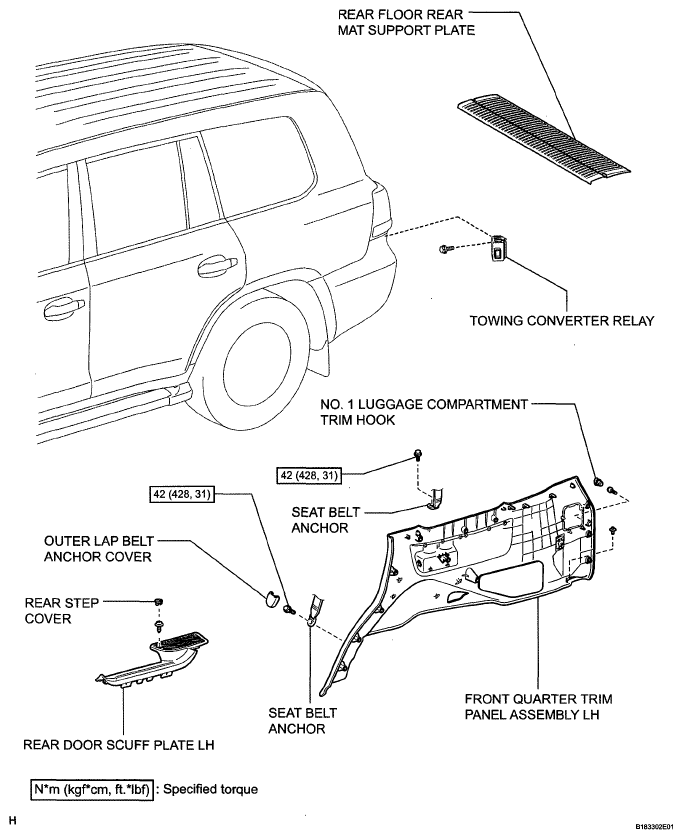

Fig 1: Towing Converter Relay With Torque Specification

G05637234

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
