Engine Oil Cooler: Components

Fig 1: Identifying Engine Oil Cooler Replacement Components With Torque Specifications (1 Of 3)
G05638268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

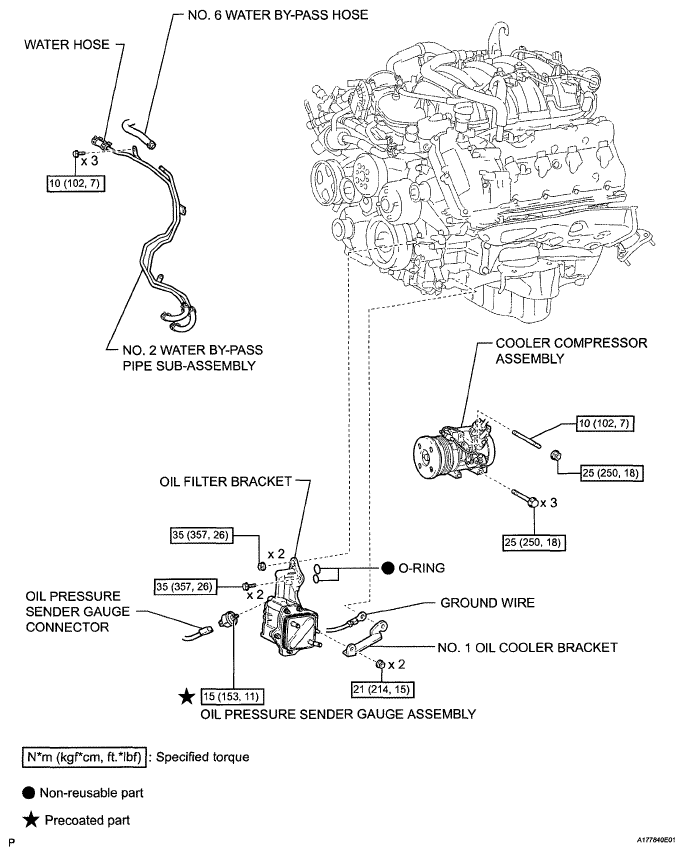

Fig 2: Identifying Engine Oil Cooler Replacement Components With Torque Specifications (2 Of 3)
G05638269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

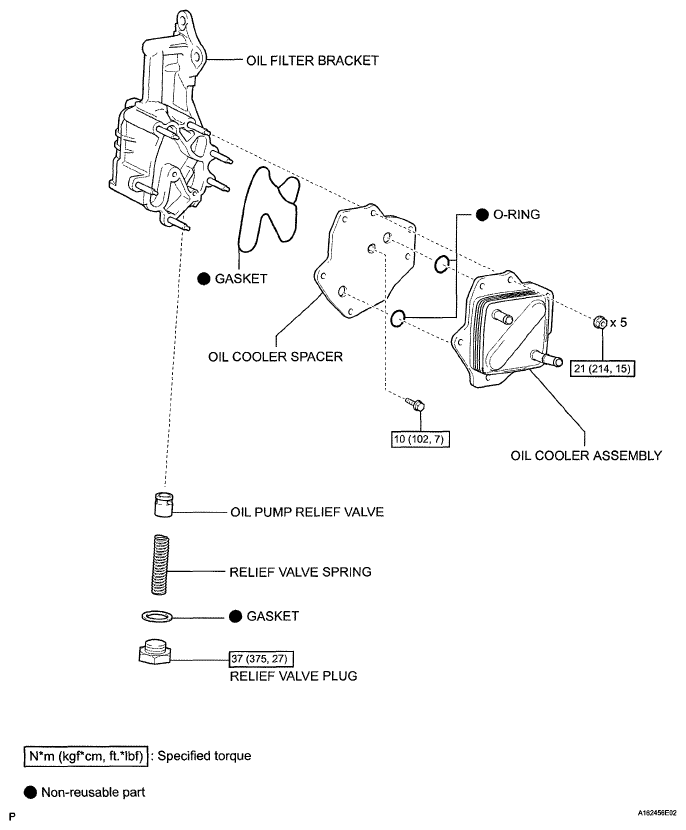

Fig 3: Identifying Engine Oil Cooler Replacement Components With Torque Specifications (3 Of 3)
G05638270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
