Oil Pump: Components

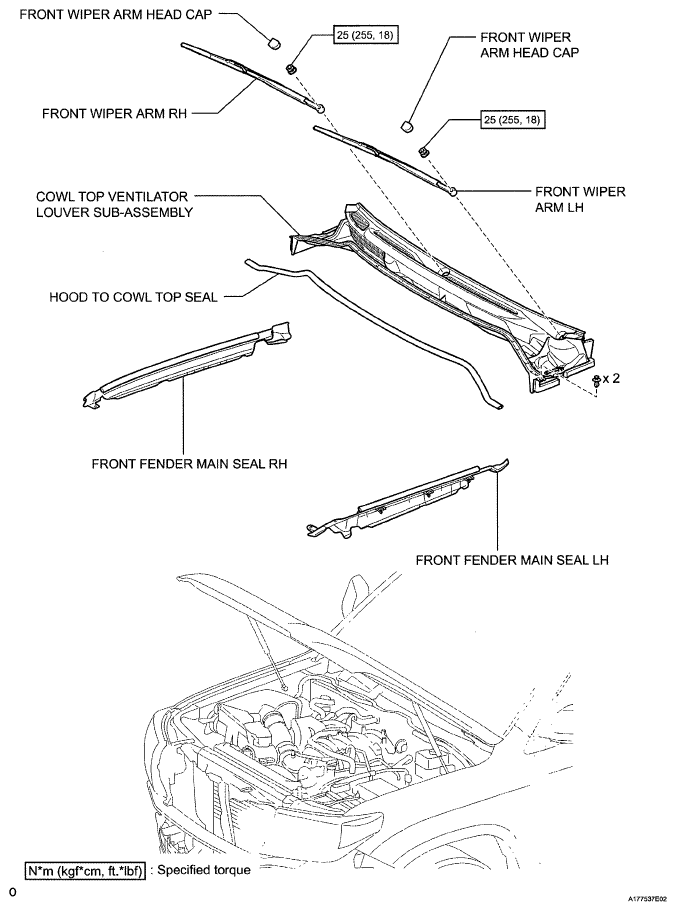

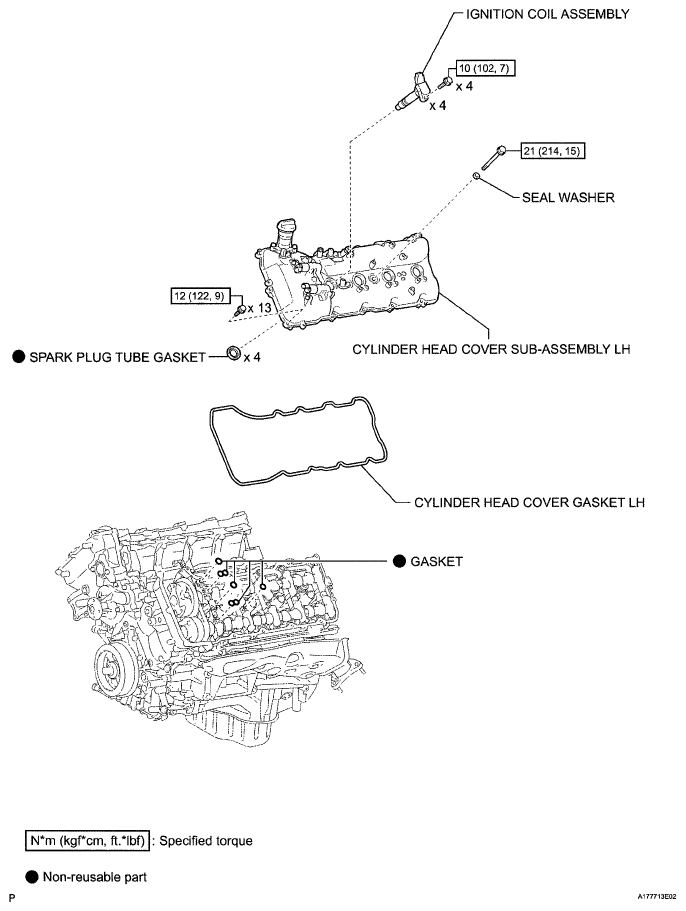

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

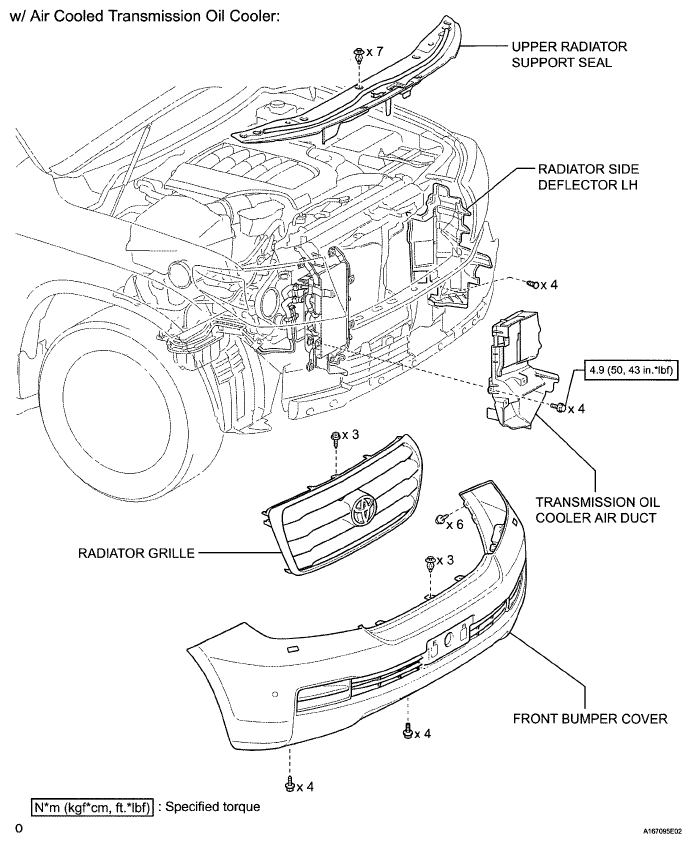

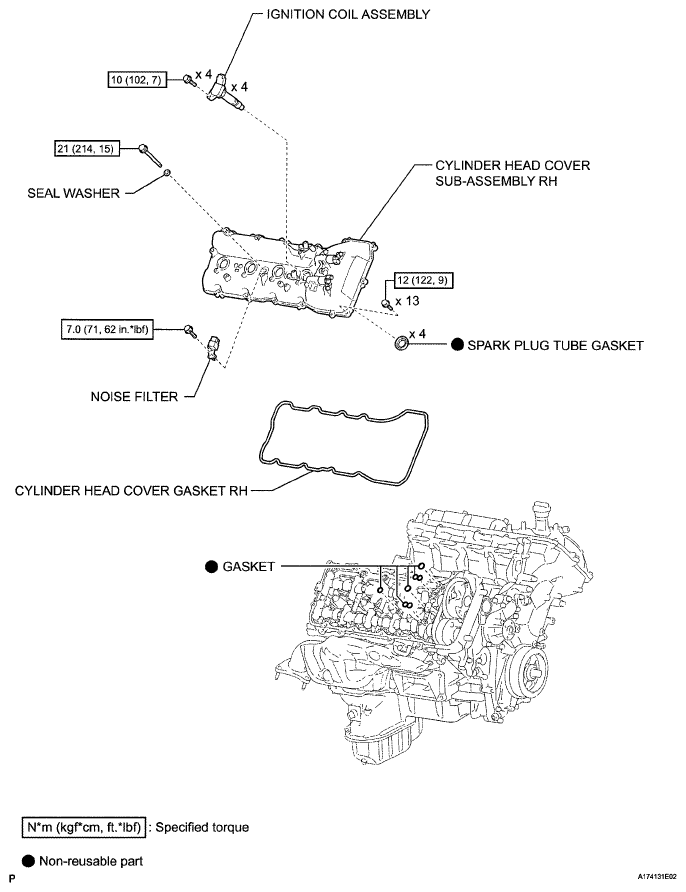

Fig 2: Identifying Oil Pump Replacement Components With Torque Specifications (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

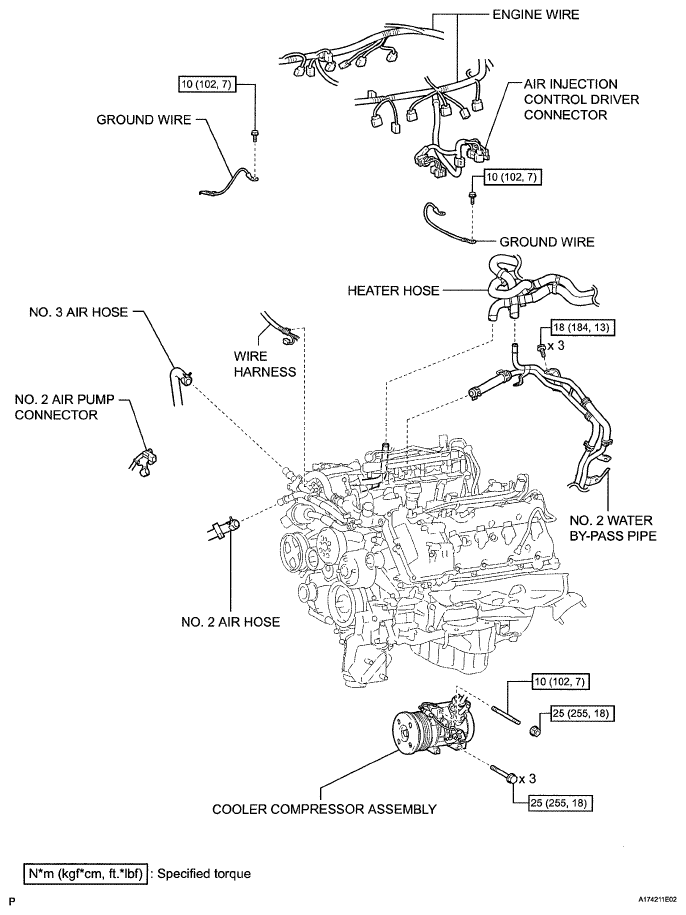

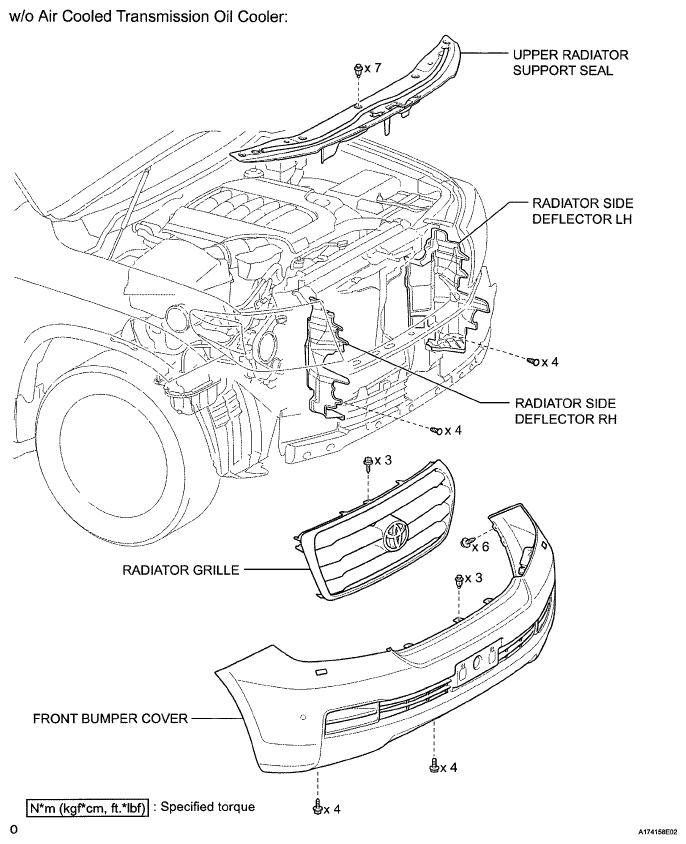

Fig 3: Identifying Oil Pump Replacement Components With Torque Specifications (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

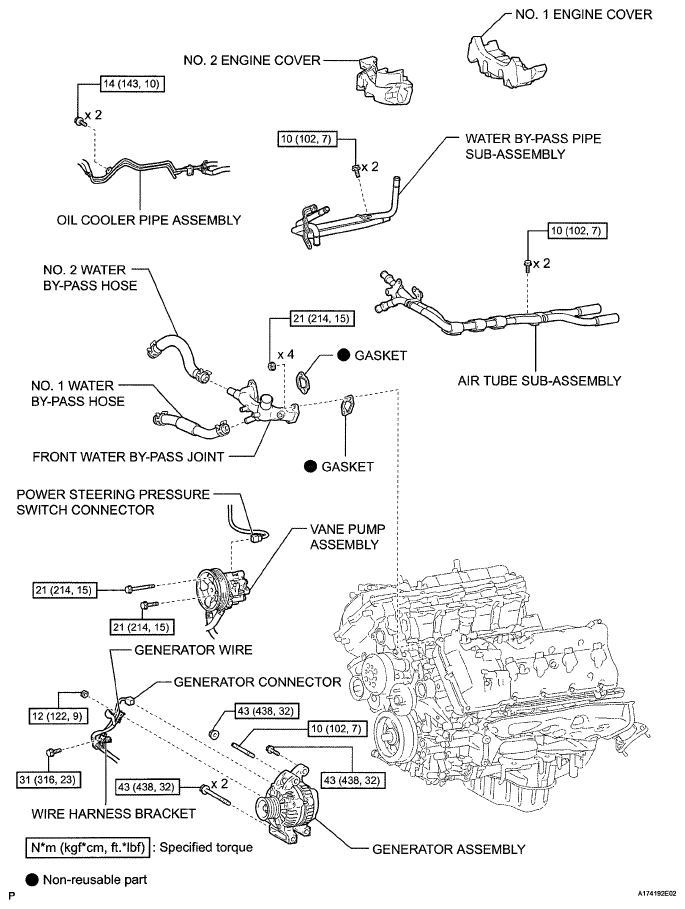

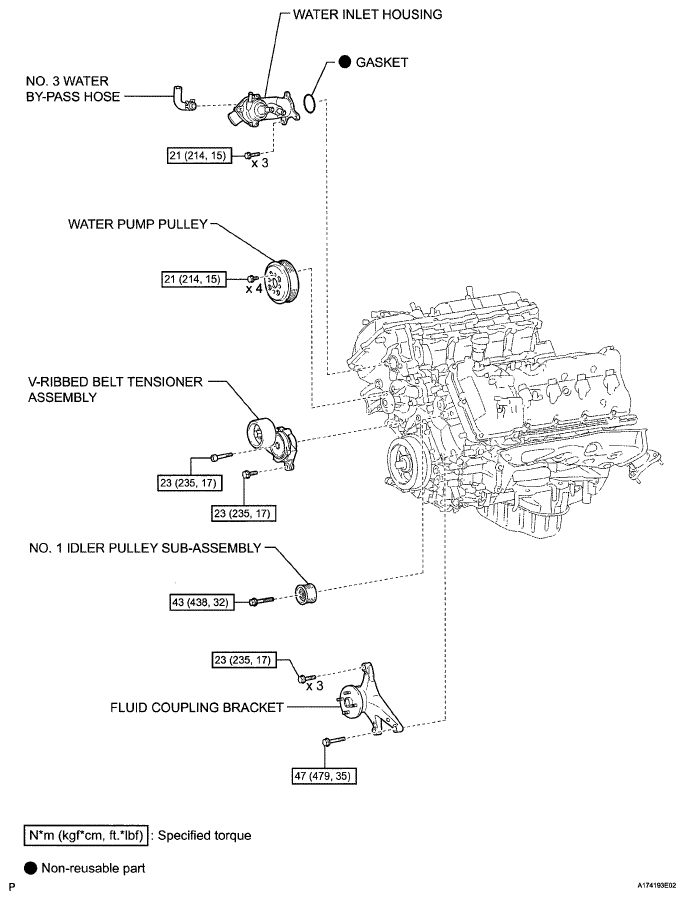

Fig 4: Identifying Oil Pump Replacement Components With Torque Specifications (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

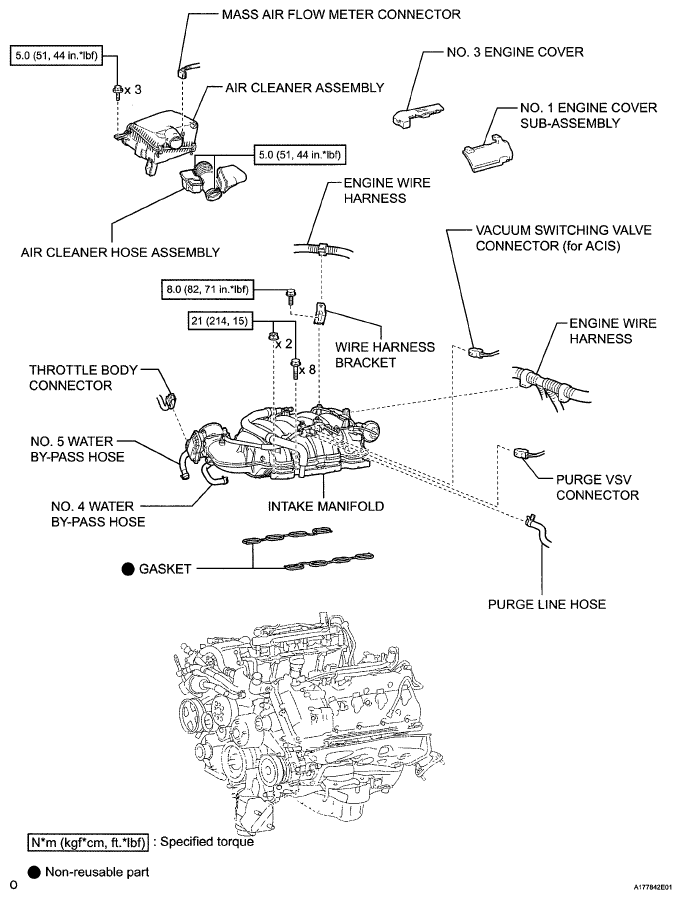

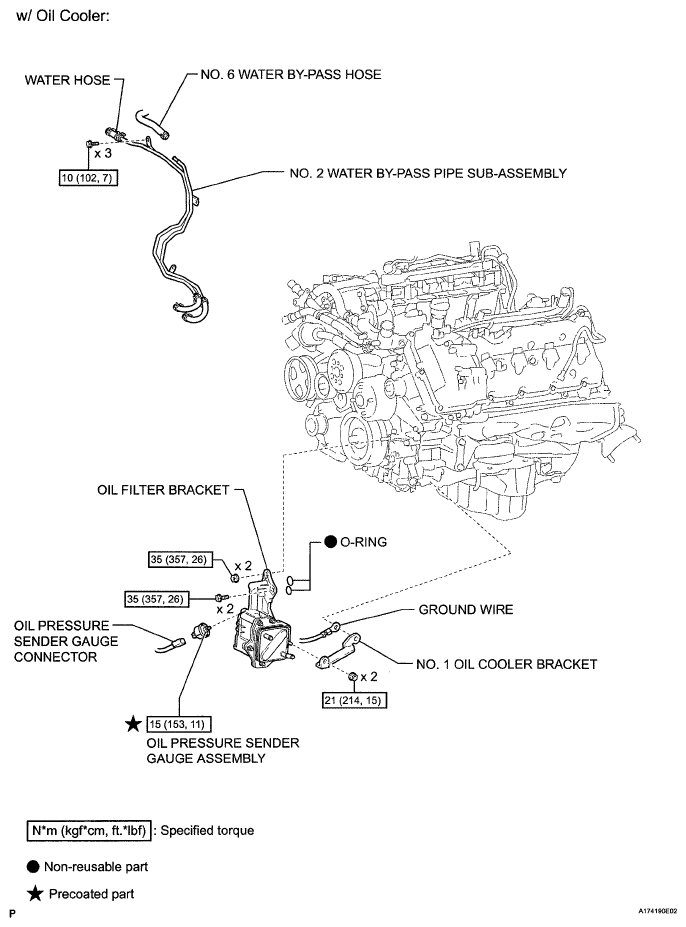

Fig 5: Identifying Oil Pump Replacement Components With Torque Specifications (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

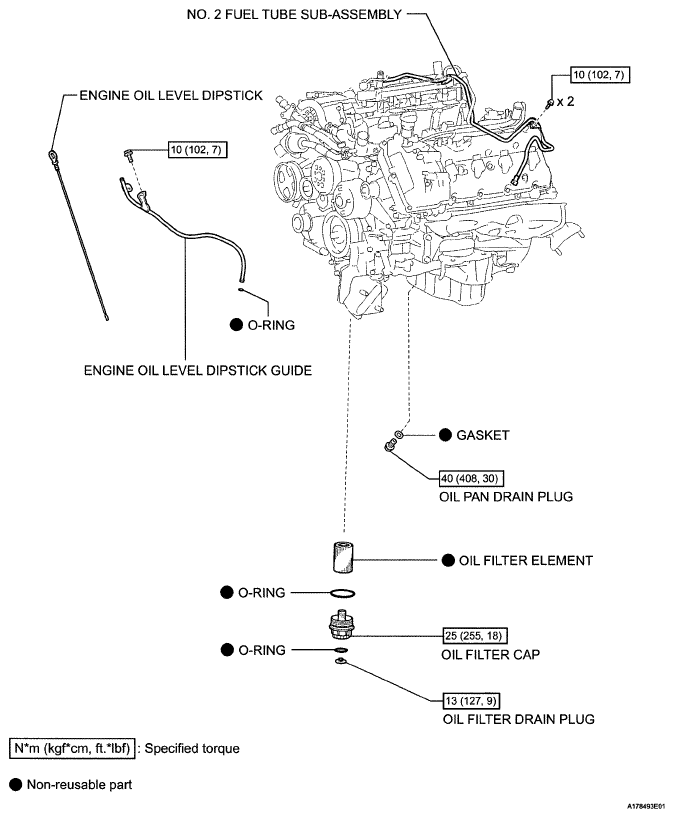

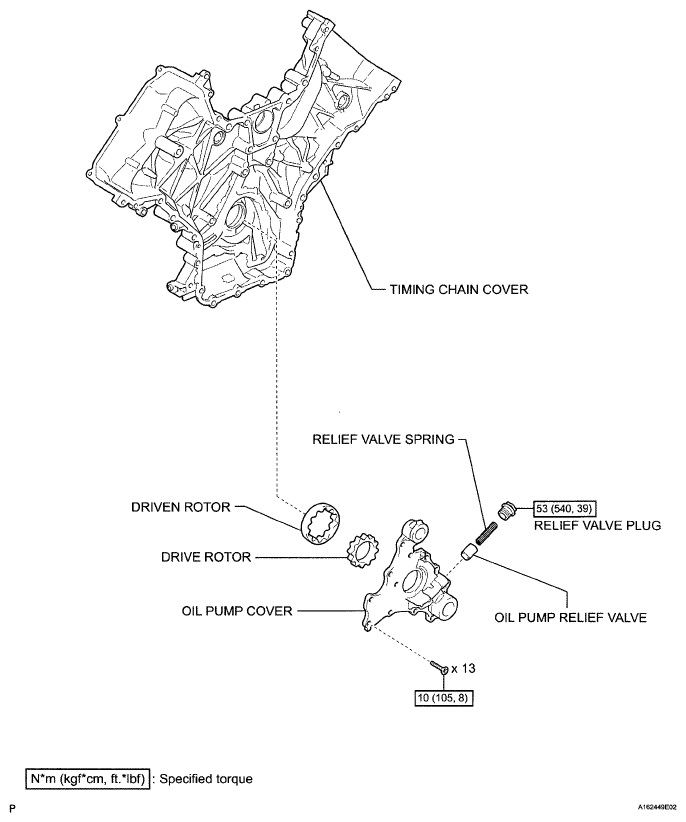

Fig 6: Identifying Oil Pump Replacement Components With Torque Specifications (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

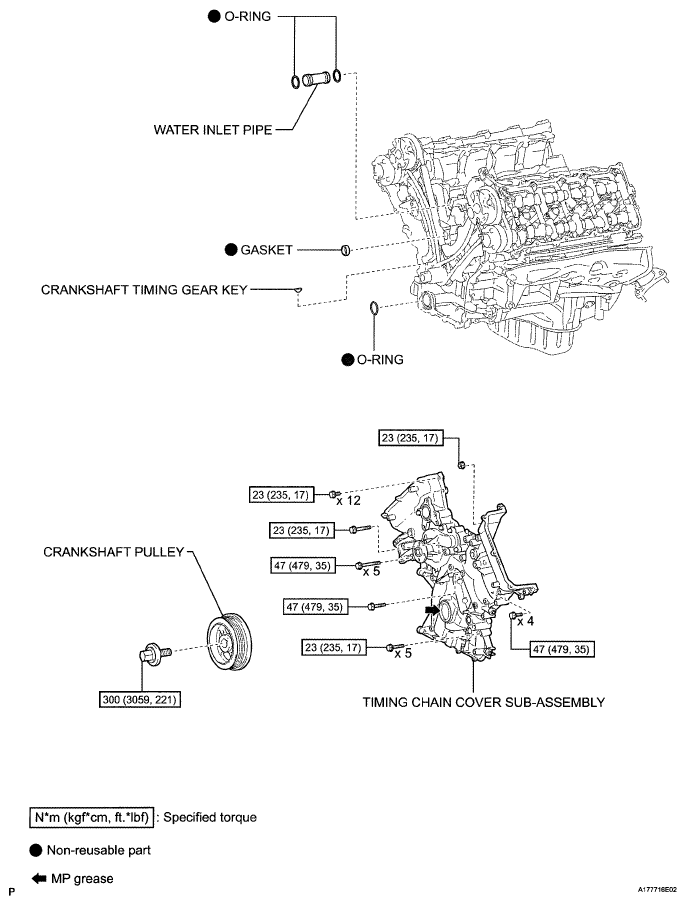

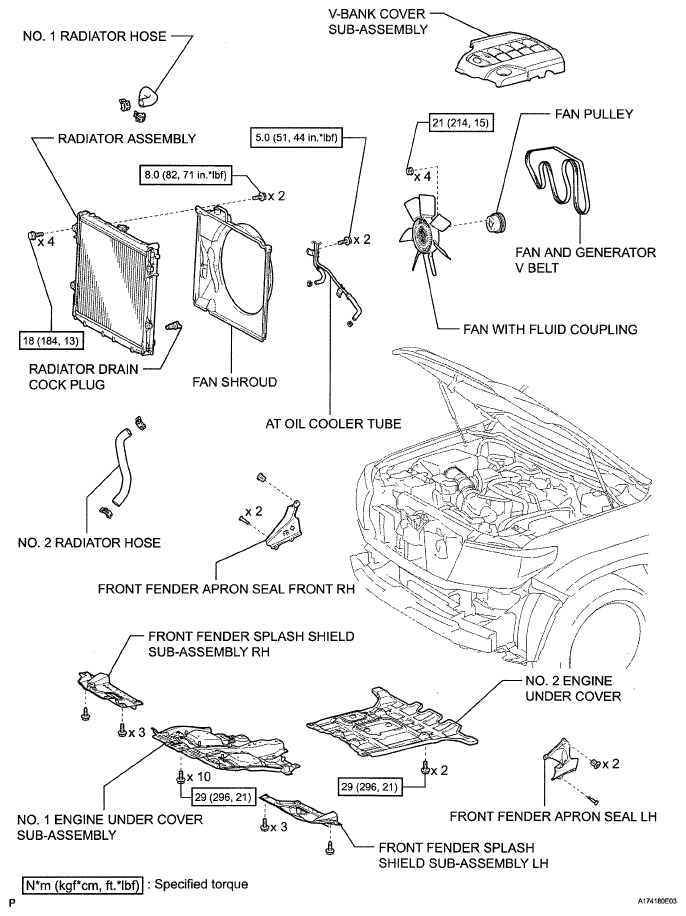

Fig 7: Identifying Oil Pump Replacement Components With Torque Specifications (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

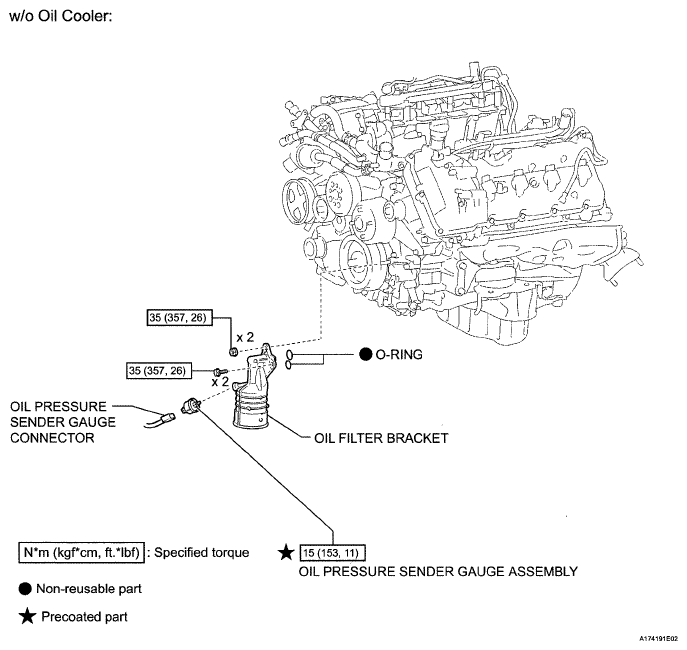

Fig 8: Identifying Oil Pump Replacement Components With Torque Specifications (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Identifying Oil Pump Replacement Components With Torque Specifications (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Identifying Oil Pump Replacement Components With Torque Specifications (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Identifying Oil Pump Replacement Components With Torque Specifications (11 Of 15)

Fig 12: Identifying Oil Pump Replacement Components With Torque Specifications (12 Of 15)

Fig 13: Identifying Oil Pump Replacement Components With Torque Specifications (13 Of 15)

Fig 14: Identifying Oil Pump Replacement Components With Torque Specifications (14 Of 15)

Fig 15: Identifying Oil Pump Replacement Components With Torque Specifications (15 Of 15)
