Stabilizer Control Valve: Components

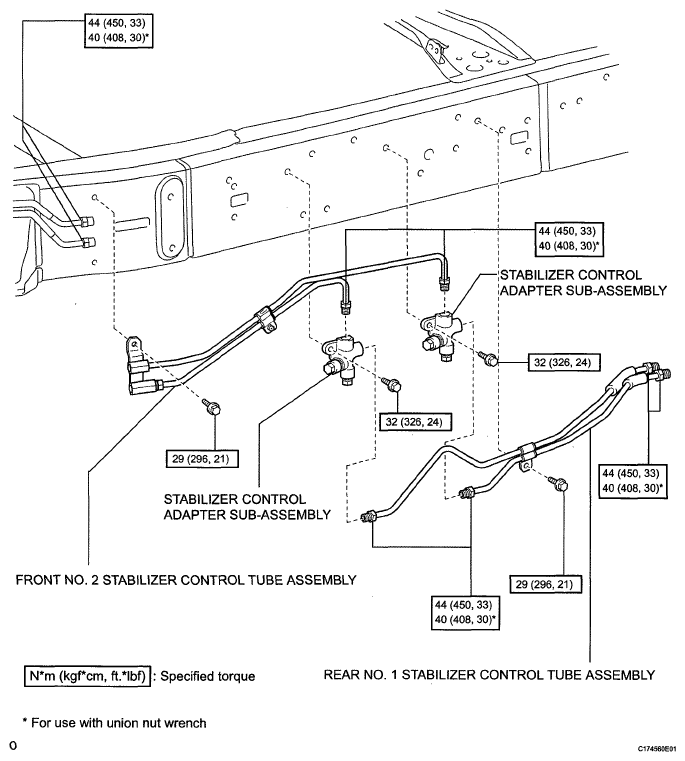

Fig 1: Identifying Stabilizer Control Valve Replacement Components With Torque Specification (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

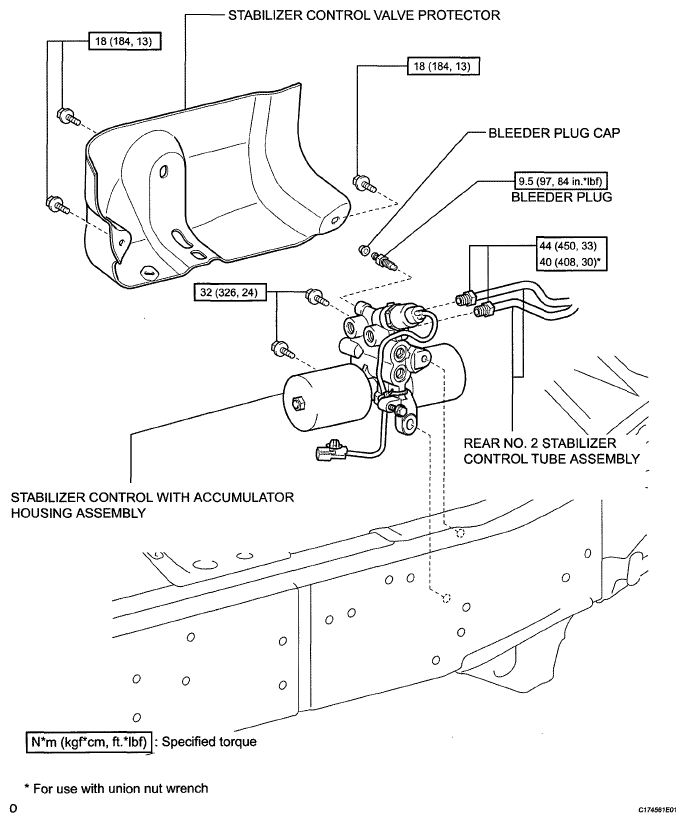

Fig 2: Identifying Stabilizer Control Valve Replacement Components With Torque Specification (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Stabilizer Control Valve Replacement Components With Torque Specification (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

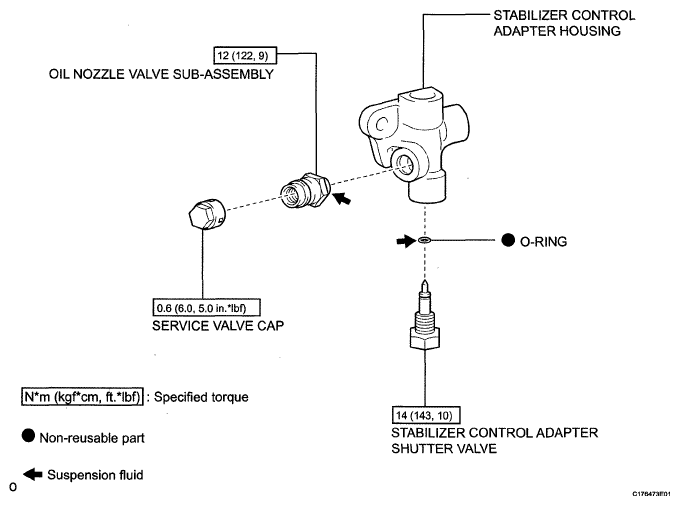

Fig 4: Exploded View Of Stabilizer Control Valve

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
