Transfer Assembly: Reassembly

HINT:

Coat all of the sliding and rotating surfaces with gear oil before reassembly.

1. INSTALL REAR TRANSFER OUTPUT SHAFT
   1. Install a new needle roller bearing.
      Fig 1: Identifying Needle Roller Bearing From Output Shaft

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Using SST and a press, press in a new bearing.

      SST 09527-10011

      NOTE: Set the snap ring groove of the bearing to the front side.
      Fig 2: Pressing Bearing

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL TRANSFER DRIVE SPROCKET BEARING
   1. Install the bearing to the output shaft.
   Fig 3: Identifying Transfer Drive Sprocket Bearing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL TRANSFER DRIVE SPROCKET SUBASSEMBLY
   1. Install the drive sprocket to the output shaft.
   Fig 4: Identifying Drive Sprocket From Output Shaft

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL TRANSFER OUTPUT SHAFT SPACER
   1. Install the straight pin to the output shaft.
      Fig 5: Identifying Straight Pin

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Align the straight pin with the straight pin groove of the output shaft spacer, and slide on the output shaft spacer.
      Fig 6: Identifying Straight Pin Groove Of Output Shaft Spacer

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Using a screwdriver and hammer, tap on the snap ring.
   Fig 7: Identifying Snap Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSPECT TRANSFER DRIVE SPROCKET SUBASSEMBLY
   1. Using a feeler gauge, measure the drive sprocket thrust clearance.

      Standard Clearance:

      0.10 to 0.47 mm (0.00394 to 0.0185 in.)

      Maximum Clearance:

      0.47 mm (0.0185 in.)

      If the clearance is more than the maximum, replace the drive sprocket sub-assembly.

      Fig 8: Measuring Drive Sprocket Thrust Clearance

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL CENTER DIFFERENTIAL CASE
   1. Using SST and a hammer, tap in a new needle roller bearing until its surface is 0 to 0.5 mm (0 to 0.0197 in.) from the center differential case upper surface.

      SST 09950-60020 (09951-00710), 09950-70010 (09951-07100)

      NOTE:

      • Be careful not to damage the center differential case.
      • Install the bearing so that the mark is on the outside.

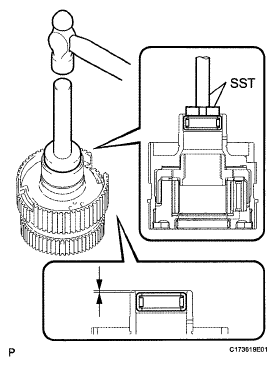

      Fig 9: Tapping Needle Roller Bearing Until Surface

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Using SST and a hammer, tap in a new needle roller bearing until its surface is 1.5 to 2.0 mm (0.0591 to 0.0787 in.) from the center differential case upper surface.

      SST 09950-60010 (09951-00460), 09950-70010 (09951-07100)

      NOTE:

      • Be careful not to damage the center differential case.
      • Install the bearing so that the mark is on the outside.

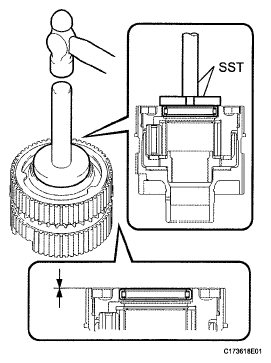

      Fig 10: Tapping Needle Roller Bearing Until Surface

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Install the synchromesh shifting key spring and No. 2 synchromesh shifting keys as shown in the illustration (Fig 11).
      Fig 11: Identifying Synchromesh Shifting Keys

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Using a snap ring expander, install the snap ring.
      Fig 12: Removing Snap Ring

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Install the center differential case to the output shaft.
   Fig 13: Identifying Center Differential Case From Output Shaft

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL NO. 1 TRANSFER OUTPUT SHAFT SPACER
   1. Install the straight pin to the output shaft.
      Fig 14: Identifying Straight Pin

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Install a new seal ring to the output shaft spacer.
      Fig 15: Identifying Seal Ring From Output Shaft Spacer

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Align the pin with the straight pin groove of the output shaft spacer, and slide on the output shaft spacer.
      Fig 16: Identifying Straight Pin Groove Of Output Shaft Spacer

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Using a screwdriver and hammer, tap on the snap
   Fig 17: Identifying Snap Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. INSTALL TRANSFER INPUT SHAFT PLUG
   1. Install the 2 output shaft washers to the output shaft.
   Fig 18: Identifying Transfer Output Shaft Washer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. INSTALL TRANSFER INPUT SHAFT PLUG
   1. Using SST and a hammer, tap in a new input shaft plug until its surface is 1.0 to 1.8 mm (0.0394 to 0.0709 in.) from the input shaft upper surface.

      SST 09950-60010 (09951-00410), 09950-70010 (09951-07150)

      NOTE: Be careful not to damage or deform the input shaft plug when tapping it.

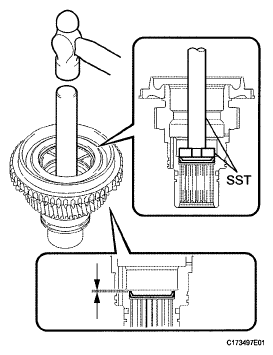

      Fig 19: Tapping Input Shaft

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. INSTALL TRANSFER INPUT SHAFT BIMETAL FORMED BUSH
    1. Using SST and a hammer, tap in a new bush until its surface is 5.5 to 5.9 mm (0.217 to 0.232 in.) from the input shaft upper surface.

       SST 09950-70010 (09951-07150), 09950-60010 (09951-00610)

       NOTE: Be careful not to damage the input shaft.

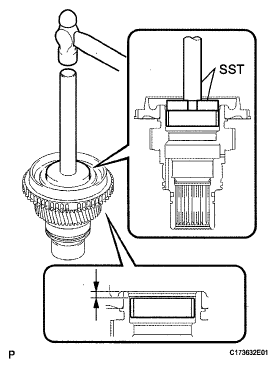

       Fig 20: Tapping Bush Until Surface

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. INSTALL TRANSFER INPUT SHAFT BEARING
    1. Install the low planetary gear bearing and low planetary gear to the input shaft.
       NOTE:

       • Make sure the low planetary gear bearing is installed in the correct direction.
       • Install the low planetary gear bearing so that its temper color side faces the low planetary gear.
       Fig 21: Identifying Temper Color Side

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the low planetary gear bearing and a new input shaft bearing to the input shaft.
       NOTE:

       • Make sure the input shaft bearing is installed in the correct direction.
       • Make sure the low planetary gear bearing is installed in the correct direction.
       • Install the low planetary gear bearing so that its temper color side faces the low planetary gear.
       Fig 22: Identifying Temper Color Side

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST and a press, press in the bearing.

       SST 09513-36040, 09515-21010

       NOTE: After press-fitting the bearing to the input shaft, check that the bearing moves smoothly.
       Fig 23: Pressing Bearing With SST

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Select a snap ring that allows for minimum axial play and install it to the shaft.

       Standard Snap Ring Thickness

       SNAP RING THICKNESS SPECIFICATION



       Mark	Specified Condition
       C	2.13 to 2.18 mm (0.0839 to 0.0858 in.)
       D	2.18 to 2.23 mm (0.0858 to 0.0878 in.)
       E	2.23 to 2.28 mm (0.0878 to 0.0898 in.)
       F	2.28 to 2.33 mm (0.0898 to 0.0917 in.)
       G	2.33 to 2.38 mm (0.0917 to 0.0937 in.)
       H	2.38 to 2.43 mm (0.0937 to 0.0957 in.)
       J	2.43 to 2.48 mm (0.0957 to 0.0976 in.)

       Fig 24: Identifying Snap Ring

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a snap ring expander, install the snap ring.
    NOTE: Make sure that the snap ring is firmly installed to the groove.
12. INSTALL NO. 1 TRANSFER INPUT SHAFT SEAL RING
    1. Apply transfer oil to a new seal ring.
    2. Install the seal ring to the input shaft.

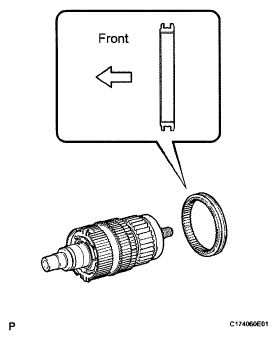

    Fig 25: Identifying Seal Ring From Input Shaft

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. INSTALL TRANSFER DRIVEN SPROCKET BEARING
    1. Install a new bearing to the front transfer case in the direction shown in the illustration (Fig 26).
       NOTE: Make sure the bearing is installed in the correct direction.
       Fig 26: Identifying Transfer Driven Sprocket Bearing

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, install the snap ring.
       Fig 27: Identifying Snap Ring

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. INSTALL TRANSFER LOW PLANETARY RING GEAR
    1. Using a snap ring expander, install the snap ring to the front transfer case.
       Fig 28: Identifying Snap Ring From Front Transfer Case

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the low planetary ring gear to the front transfer case.
       NOTE: Make sure to install the low planetary ring gear in the correct direction.
       Fig 29: Identifying Low Planetary Ring Gear

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a screwdriver, install the snap ring.
       NOTE: Make sure that the snap ring is firmly installed to the groove.
       Fig 30: Identifying Snap Ring

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. INSTALL INPUT SHAFT ASSEMBLY
    1. While expanding the snap ring, install the input shaft to the front transfer case.
    2. Apply adhesive to the threads of the 2 case plugs.

       Adhesive:

       Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

       NOTE: Install the plugs within 3 minutes of application.
       Fig 31: Expanding Snap Ring

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a 14 mm hexagon wrench, install the 2 case plugs.

       Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

       Fig 32: Locating Front Transfer Case Plugs

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. INSTALL TRANSFER CASE MAGNET
    1. Install the magnet to the oil separator.
17. INSTALL TRANSFER OIL SEPARATOR SUBASSEMBLY
    1. Install a new O-ring to the oil separator.
       Fig 33: Locating Magnet From Oil Separator

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the oil separator with the 3 bolts.

       Torque: 18 N*m (178 kgf*cm, 13 ft.*lbf)

       Fig 34: Locating Oil Separator Bolts

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
18. INSTALL SIDE GEAR SHAFT HOLDER BEARING
    1. Using SST and a hammer, tap in a new bearing to the rear transfer case.

       SST 09950-60010 (09951-00590), 09950-70010 (09951-07100)

       Fig 35: Tapping Bearing To Rear Transfer Case

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, install the snap ring.
    Fig 36: Identifying Snap Ring

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
19. INSTALL FRONT DRIVE CLUTCH SLEEVE
    1. Apply gear oil to the connecting areas of the clutch sleeve and center differential case.
    2. Install the clutch sleeve onto the output shaft.
    NOTE: Make sure that the clutch sleeve is installed facing the correct direction.

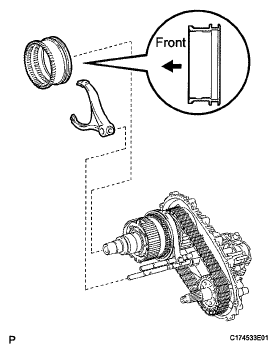

    Fig 37: Identifying Front Drive Clutch Sleeve

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
20. INSTALL REAR TRANSFER OUTPUT SHAFT ASSEMBLY
    1. Install the snap ring to the rear transfer case.
       Fig 38: Identifying Snap Ring From Rear Transfer Case

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the output shaft, drive chain and driven sprocket.
       NOTE: Do not drop the output shaft washers.
       Fig 39: Identifying Drive Chain And Driven Sprocket

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a snap ring expander, install the snap ring to the output shaft.
    NOTE: Make sure that the snap ring is firmly installed to the groove.
    Fig 40: Expanding Snap Ring

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
21. INSTALL TRANSFER SHIFT ACTUATOR ASSEMBLY
    1. Install a new O-ring to the shift actuator.
       Fig 41: Identifying O-Ring From Shift Actuator

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Set the No. 1 gear shift fork to the front drive clutch sleeve.
    3. Set the washer and straight pin to the rear transfer case.
       Fig 42: Identifying Shift Actuator, Gear Shift Fork, Washer, And Straight Pin From Rear Transfer Case

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the shift actuator to the rear transfer case with the 3 bolts.

       Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

       Fig 43: Locating Transfer Shift Actuator Assembly Bolts

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the No. 1 gear Shift fork to the shift actuator with the bolt.

    Torque: 24 N*m (245 kgf*cm, 18 ft.*lbf)

    Fig 44: Locating Gear Shift Fork Bolt

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
22. INSTALL NO. 2 TRANSFER GEAR SHIFT FORK
    1. Set the No. 2 gear shift fork together with the high and low clutch sleeve to the shift actuator.
       Fig 45: Identifying Transfer Gear Shift Fork

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the No. 2 gear shift fork to the shift actuator with the bolt.

       Torque: 24 N*m (245 kgf*cm, 18 ft.*lbf)

       Fig 46: Locating Gear Shift Fork Bolt

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a screwdriver and hammer, tap the 4 shift fork shaft snap rings to the shift fork shaft.
    Fig 47: Locating Snap Rings To Shift Fork Shaft

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
23. INSTALL FRONT TRANSFER OUTPUT SHAFT NEEDLE ROLLER BEARING
    1. Install the needle roller bearing and spacer to the output shaft.
    Fig 48: Identifying Needle Roller Bearing And Spacer From Output Shaft

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
24. INSTALL NO. 1 SYNCHRONIZER RING
    1. Align the protrusion of the synchronizer ring with the notch on the differential case and install it.
    Fig 49: Identifying Synchronizer Ring

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
25. INSTALL REAR TRANSFER CASE ASSEMBLY
    1. Apply seal packing to the rear transfer case as shown in the illustration (Fig 50).

       Seal Packing:

       Toyota Genuine Seal Packing 1281, Three Bond 1281 or equivalent

       Fig 50: Identifying Seal Packing To Rear Transfer Case

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       NOTE: If the removed rear transfer case will be reused: After removing the rear transfer case, be sure to perform the following before reinstalling it: 1) using a knife, cut off any old FIPG material on the rear transfer case contact surface, 2) clean off any remaining old FIPG material from the rear transfer case contact surface, and 3) reapply seal packing to the rear transfer case.
    2. Install the rear transfer case with the 14 bolts.

       Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)

       NOTE: Tighten the bolts within 10 minutes of applying the seal packing. The seal packing will dry very quickly.
       Fig 51: Locating Rear Transfer Case Assembly Bolts

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
26. INSTALL TRANSFER CASE PLUG
    1. Apply adhesive to the threads of the plug.

       Adhesive:

       Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

       NOTE: Install the plug within 3 minutes of application.
    2. Using a 6 mm hexagon wrench, install the plug.

       Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

       Fig 52: Locating Transfer Case Plug

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
27. INSTALL NO. 1 TRANSFER CASE PLUG
    1. Install the pin and compression spring to the front transfer case.
    2. Apply adhesive to the threads of the plug.

       Adhesive:

       Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

       NOTE: Install the plug within 3 minutes of application.
    3. Install the plug.

       Torque: 19 N*m (190 kgf*cm, 14 ft.*lbf)

       Fig 53: Identifying Transfer Case Plug

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
28. INSTALL TRANSFER CASE REAR OIL SEAL  (See REPLACEMENT  )
29. INSTALL REAR OUTPUT SHAFT COMPANION FLANGE SUB-ASSEMBLY
    1. Install the companion flange onto the output shaft.
    2. Using SST to hold the companion flange, install a new O-ring and companion flange lock nut.

       SST 09330-00021

       Torque: 127 N*m (1299 kgf*cm, 94 ft.*lbf)

       Fig 54: Removing Lock Nut

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a chisel and hammer, stake the companion flange lock nut.
30. INSTALL TRANSFER CASE FRONT OIL SEAL  (See REPLACEMENT  )
31. INSTALL FRONT OUTPUT SHAFT COMPANION FLANGE SUB-ASSEMBLY
    1. Install the companion flange onto the drive sprocket.
       Fig 55: Identifying Correct And Incorrect Companion Flange Lock Nut

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST to hold the companion flange, install a new O-ring and companion flange lock nut.

       SST 09330-00021

       Torque: 127 N*m (1299 kgf*cm, 94 ft.*lbf)

       Fig 56: Removing Companion Flange Lock Nut

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a chisel and hammer, stake the companion flange lock nut.
    Fig 57: Identifying Correct And Incorrect Companion Flange Lock Nut

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
32. INSTALL TRANSFER OIL PUMP PLATE OIL SEAL
    1. Using SST and a hammer, tap in a new oil seal until its surface is flush with the oil pump plate upper surface.

    SST 09950-60020 (09951-00680), 09950-70010 (09951-07100)

    NOTE: Be careful not to damage the oil pump plate.
    Fig 58: Tapping Oil Seal To Oil Pump Plate Upper Surface

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
33. INSTALL TRANSFER CASE PLUG
    1. Install the relief valve seat, ball and compression spring to the oil pump plate.
    2. Apply adhesive to the threads of the plug.

       Adhesive:

       Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

       NOTE: Install the plug within 3 minutes of application.
    3. Using a 10 mm hexagon wrench, install the plug.

    Torque: 29 N*m (300 kgf*cm, 22 ft.*lbf)

    Fig 59: Locating Transfer Case Plug

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
34. INSTALL TRANSFER CASE STRAIGHT PIN
    1. Install the 2 straight pins to the input shaft.
35. INSTALL TRANSFER OIL PUMP PLATE
    1. Apply transfer oil to a new O-ring, the drive rotor, driven rotor and a new transfer oil seal ring.
       Fig 60: Identifying Transfer Case Straight Pin

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the drive rotor to the input shaft.
       Fig 61: Identifying Oil Pump Drive Rotor

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the transfer oil seal ring to the input shaft.
    4. Install the O-ring to the oil pump plate.
       Fig 62: Locating Transfer Oil Seal Ring

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the oil pump plate and driven rotor to the front transfer case with the 4 bolts.

    Torque: 12 N*m (117 kgf*cm, 9 ft.*lbf)

    Fig 63: Identifying Oil Pump Plate Bolt

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
36. INSTALL PROPELLER SHAFT HEAT INSULATOR BRACKET SUB-ASSEMBLY
    1. Install the bracket to the rear transfer case with the bolt.

    Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    Fig 64: Locating Propeller Shaft Heat Insulator Bracket Bolt

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
