Stereo Component Amplifier: Components

Fig 1: Stereo Component Amplifier Replacement Components With Torque Specifications (1 Of 3)
G06035758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Stereo Component Amplifier Replacement Components With Torque Specifications (2 Of 3)
G06035759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

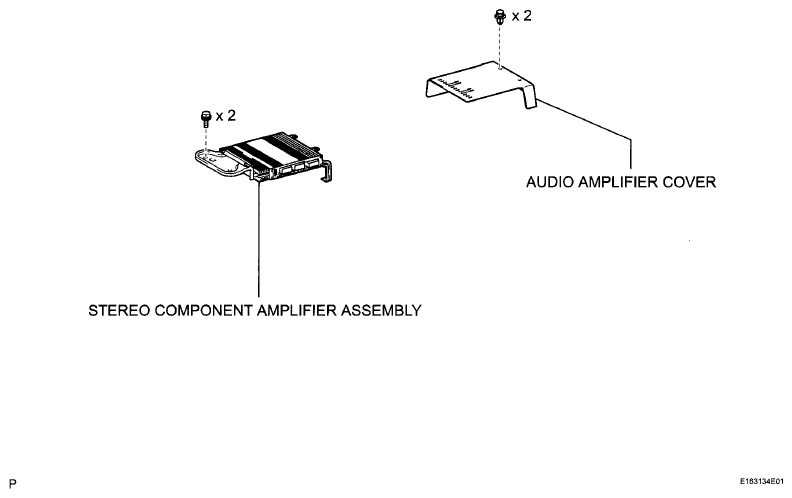

Fig 3: Identifying Stereo Component Amplifier Components (3 Of 3)
G06035760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
