Door Control Receiver: Installation

  1. INSTALL DOOR CONTROL RECEIVER
    1. Install the door control receiver with the bolt.
    2. Connect the connector.

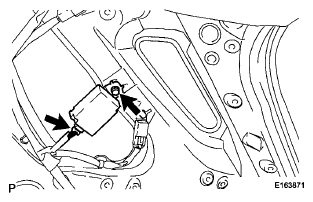

      Fig 1: Locating Door Control Receiver Connector Bolts
      G06036445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL ROOF SIDE INNER GARNISH RH

    HINT:

    Use the same procedure for the RH side and LH side (See INSTALLATION ).

  3. INSTALL QUARTER PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and LH side (See INSTALLATION ).

  4. INSTALL SIDE DECK TRIM PANEL ASSEMBLY RH (w/o Woofer)  (See INSTALLATION )
  5. INSTALL SIDE DECK TRIM PANEL ASSEMBLY RH (w/ Woofer)  (See INSTALLATION )
  6. INSTALL REAR COMBINATION LIGHT SERVICE COVER RH (w/ Woofer)  (See INSTALLATION )
  7. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side)

    HINT:

    Use the same procedure for the RH side and LH side (See INSTALLATION ).

  8. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure for the RH side and LH side (See INSTALLATION ).

  9. CONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH (See INSTALLATION )
  10. INSTALL REAR SEAT SIDE GARNISH RH (See INSTALLATION )
  11. INSTALL REAR SEATBACK HINGE SUB-ASSEMBLY (for RH Side) (See INSTALLATION )
  12. INSTALL REAR DECK TRIM COVER (See INSTALLATION )
  13. INSTALL LUGGAGE COMPARTMENT TRAY (See INSTALLATION )
  14. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR (See INSTALLATION )
  15. INSTALL DECK FLOOR BOX RH (See INSTALLATION )
  16. INSTALL DECK FLOOR BOX LH (See INSTALLATION )
  17. INSTALL JACK ASSEMBLY (See INSTALLATION )
  18. INSTALL JACK CARRIER ASSEMBLY
  19. INSTALL NO. 2 DECK BOARD (See INSTALLATION )
  20. INSTALL DECK BOARD ASSEMBLY (See INSTALLATION )
  21. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)
  22. INSTALL REAR SEATBACK ASSEMBLY RH (See INSTALLATION )
  23. INSTALL REAR SEATBACK INNER HINGE COVER (for RH Side) (See INSTALLATION )
  24. INSTALL REAR SEATBACK OUTER HINGE COVER (for RH Side) (See INSTALLATION )
  25. CONNECT REAR SEAT CENTER OUTER BELT ASSEMBLY (See INSTALLATION )
  26. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY
  27. INSTALL REAR SEAT HEADREST ASSEMBLY (for RH Side)
  28. INSTALL REAR SEAT CUSHION ASSEMBLY (See INSTALLATION )
  29. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH (See INSTALLATION )
  30. INSTALL REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure for the RH side and LH side (See INSTALLATION ).
