Door Control Switch: Installation

INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (for Driver Side)
1. Install the power window regulator master switch assembly with the 3 screws.
Fig 1: Locating Power Window Regulator Master Switch Assembly With Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DOOR CONTROL SWITCH ASSEMBLY (for Front Passenger Side)
1. Engage the 2 claws and install the door control switch assembly.
INSTALL FRONT ARMREST UPPER BASE PANEL (See REASSEMBLY )

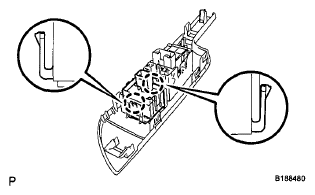

Fig 2: Identifying Door Control Switch Assembly Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
