Power Window Master Switch: Installation

  1. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
    1. Install the power window regulator master switch assembly with the 3 screws.
  2. INSTALL FRONT ARMREST UPPER BASE PANEL LH  (See REASSEMBLY )

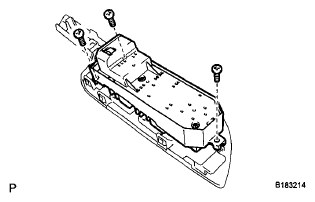

    Fig 1: Identifying Power Window Regulator Master Switch Assembly With Screws
    G06036373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
