Back-Up Light: Notes

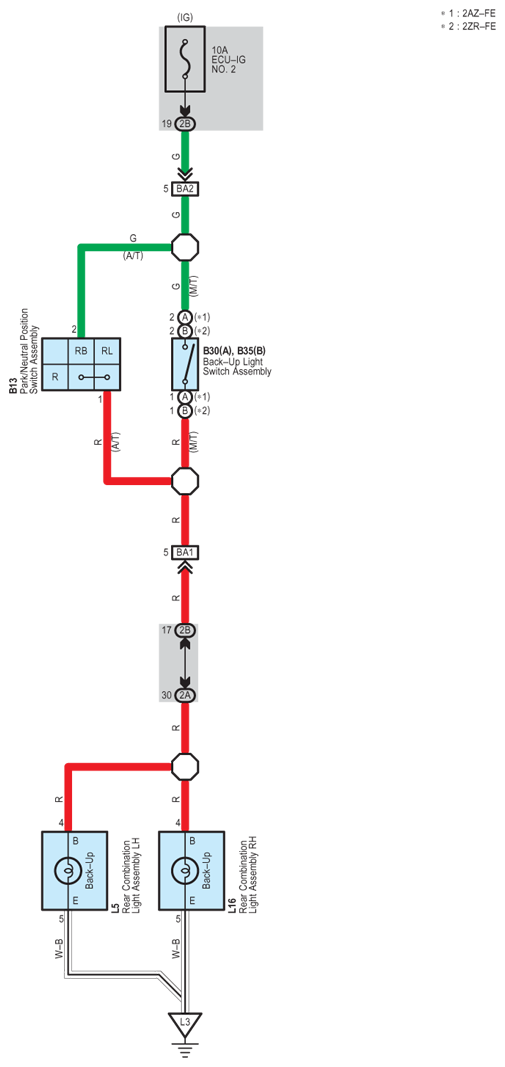

Fig 1: Back-Up Light - Circuit Diagram
G07606261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
