OEM System Circuits: Ignition: Notes

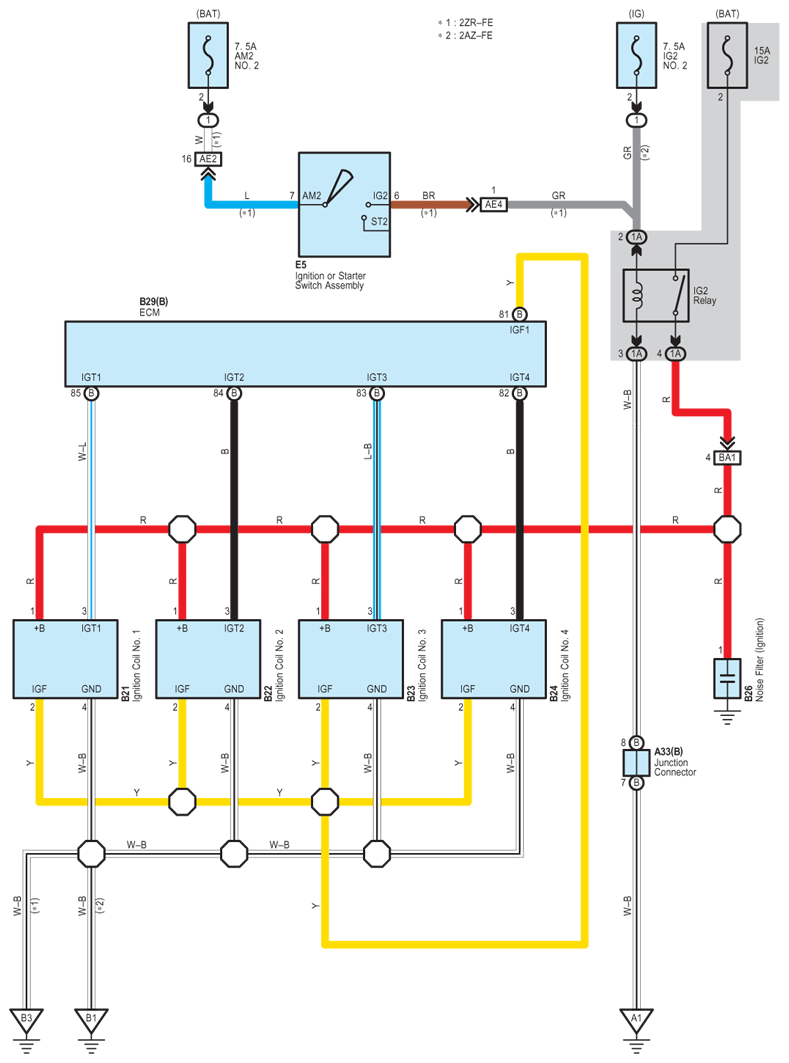

Fig 1: Ignition - Circuit Diagram
G07606217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
