Power Outlet for 115V: Notes

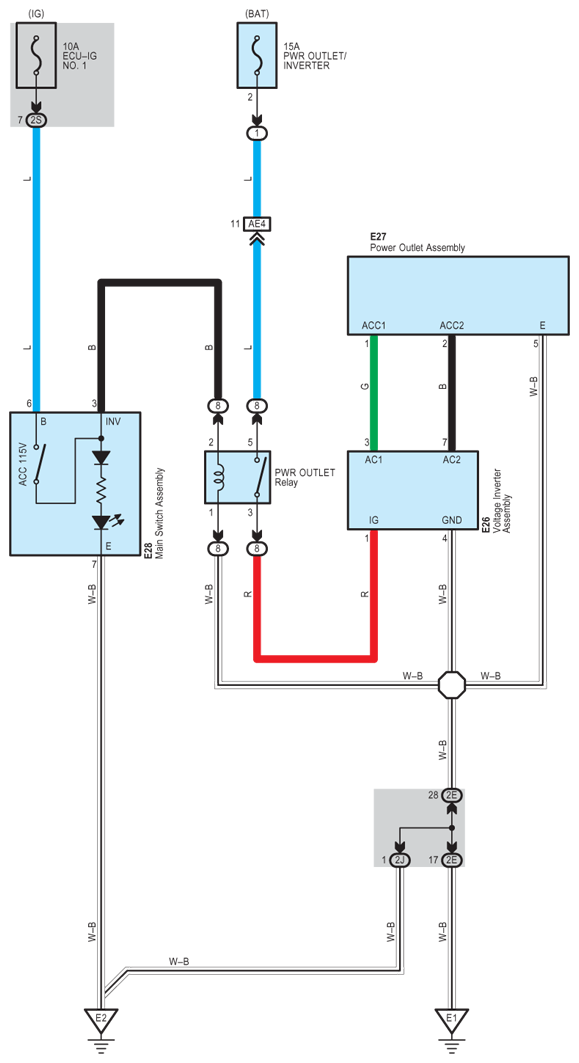

Fig 1: Power Outlet For 115V - Circuit Diagram
G07606352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
