Power Source: Notes

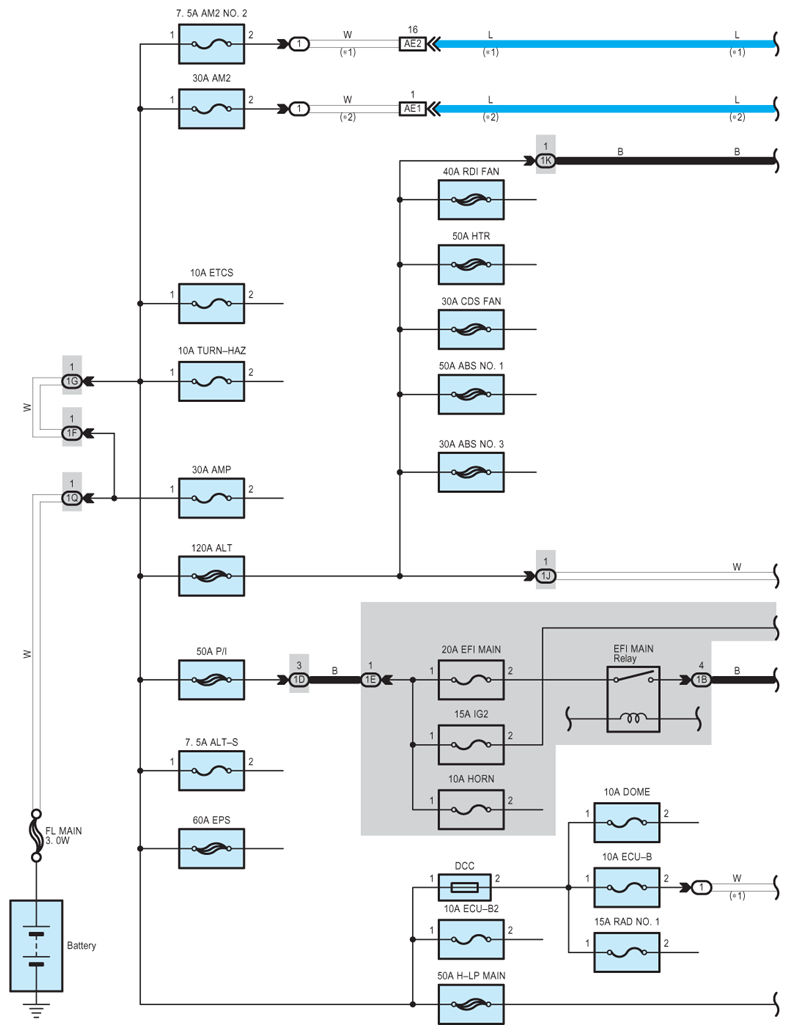

Fig 1: Power Source - Circuit Diagram (1 Of 4)
G07606211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

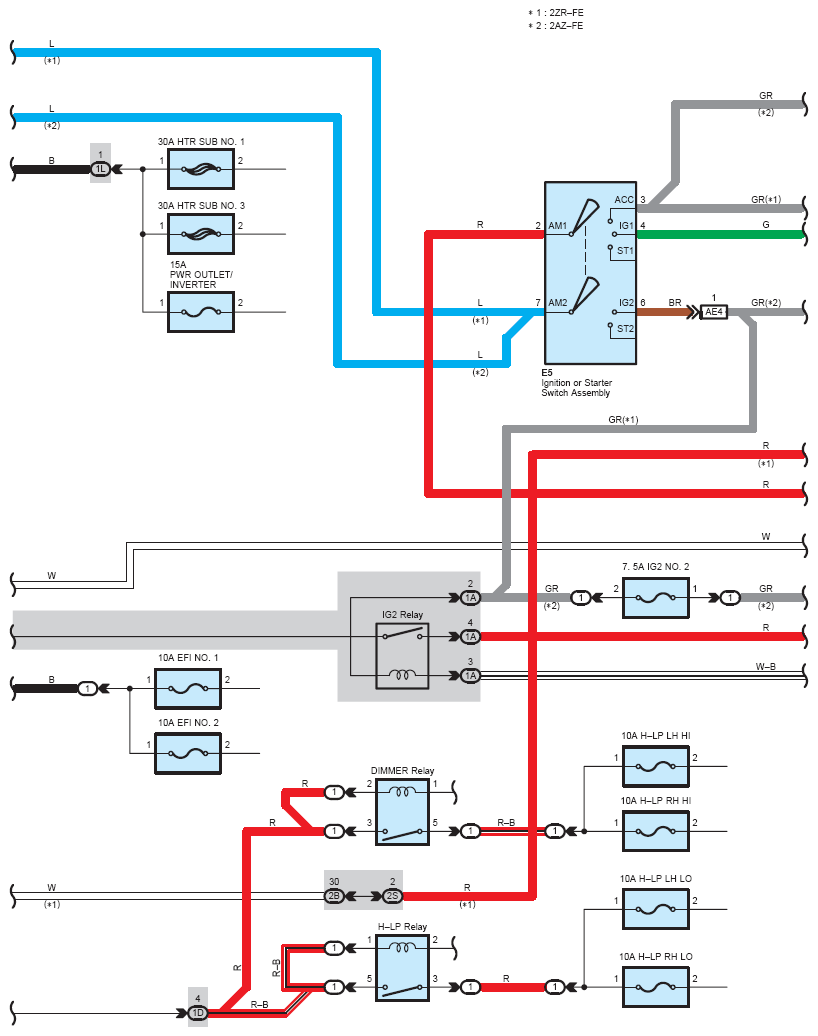

Fig 2: Power Source - Circuit Diagram (2 Of 4)
G07606212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

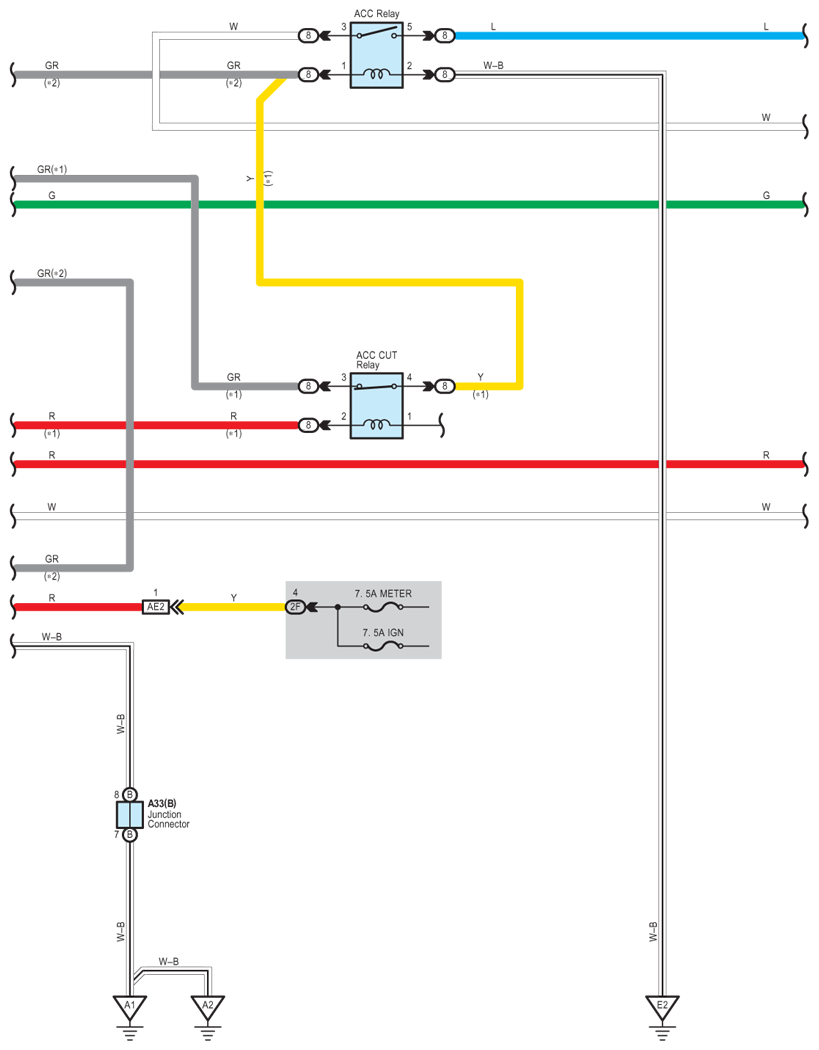

Fig 3: Power Source - Circuit Diagram (3 Of 4)
G07606213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

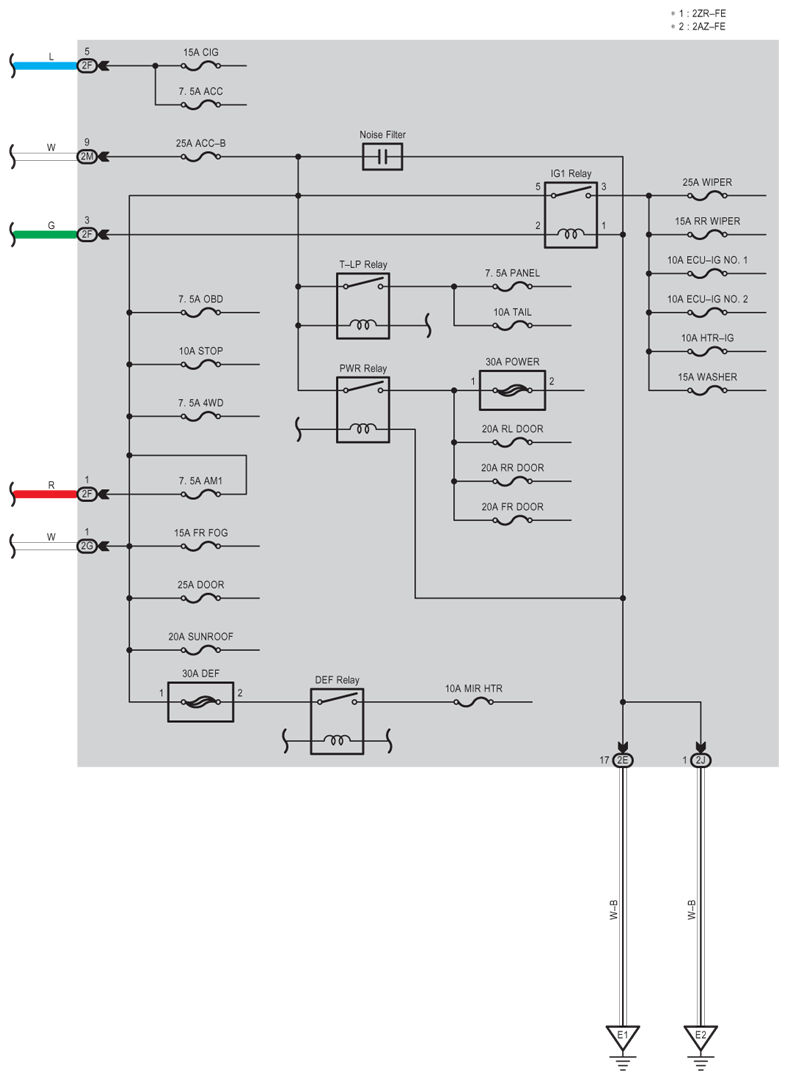

Fig 4: Power Source - Circuit Diagram (4 Of 4)
G07606214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
