Wireless Door Lock Control: Notes

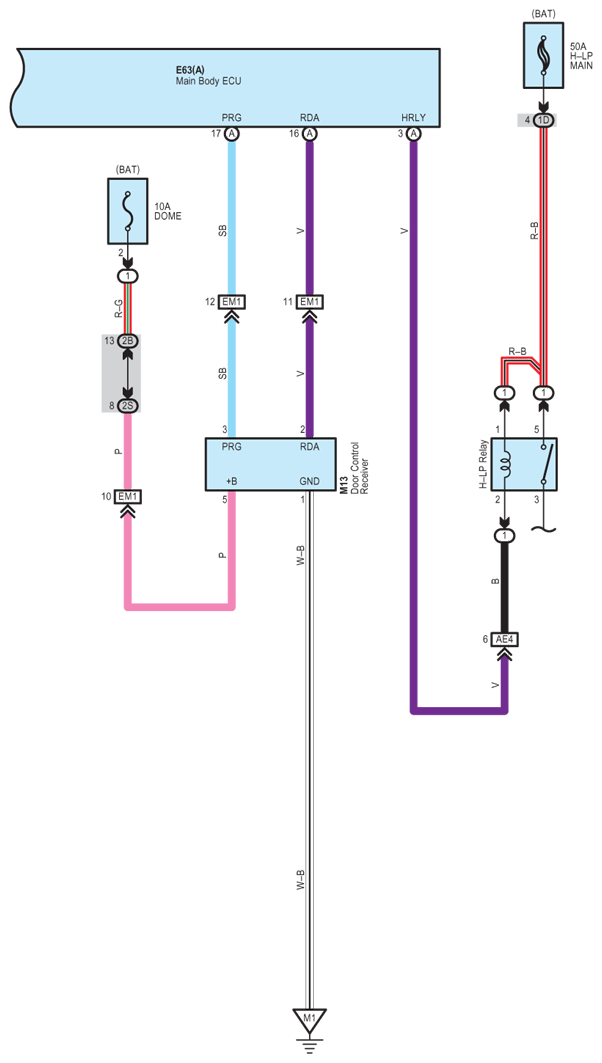

Fig 1: Wireless Door Lock Control - Circuit Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Wireless Door Lock Control - Circuit Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

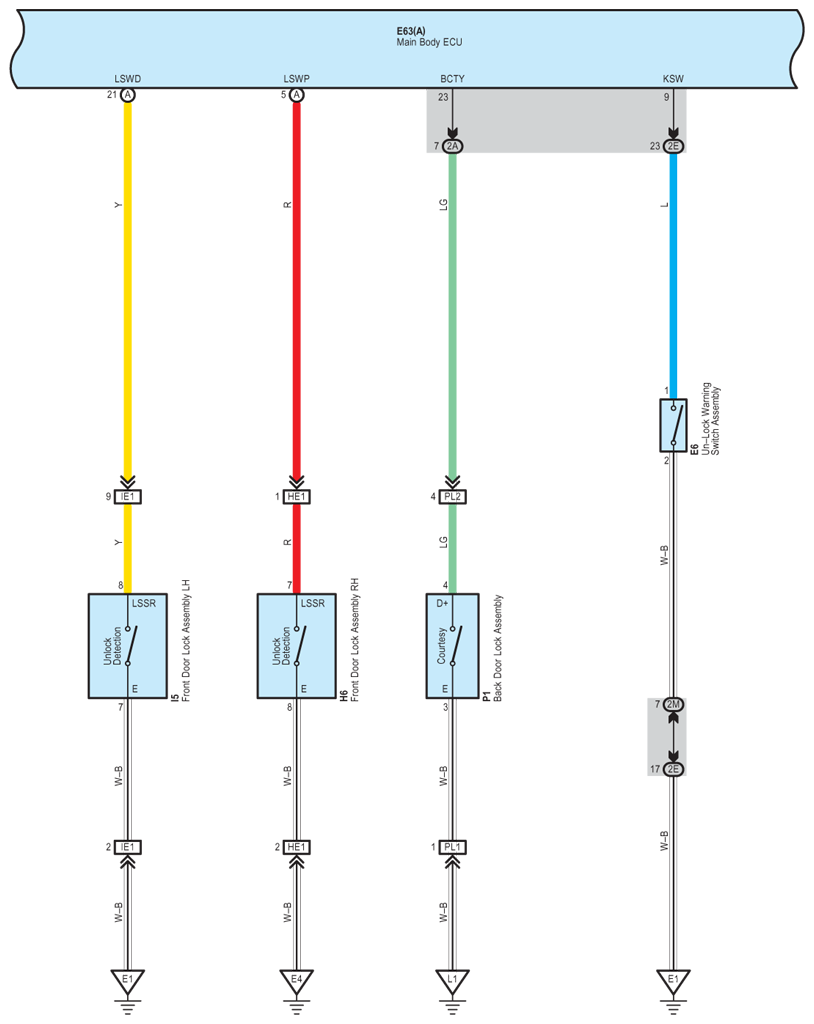

Fig 3: Wireless Door Lock Control - Circuit Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

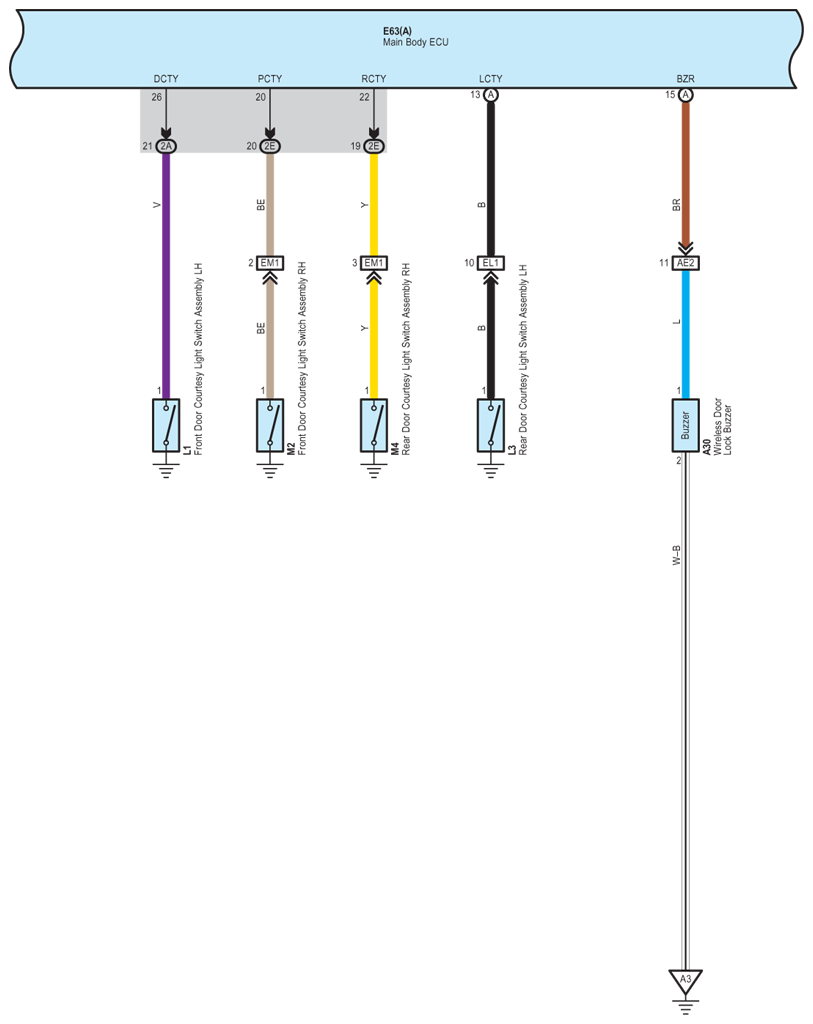

Fig 4: Wireless Door Lock Control - Circuit Diagram (4 Of 5)

Fig 5: Wireless Door Lock Control - Circuit Diagram (5 Of 5)
