Cigarette Lighter: Installation

  1. INSTALL CIGARETTE LIGHTER BEZEL STAY
    1. Engage the 2 claws to install the cigarette lighter bezel stay.

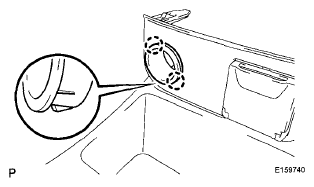

    Fig 1: Identifying Cigarette Lighter Bezel Stay And Claw
    G06037784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CIGARETTE LIGHTER ASSEMBLY
    1. Engage the claw to install the cigarette lighter assembly.

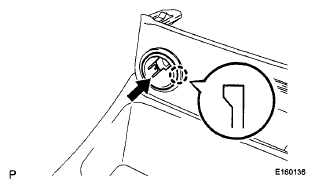

    Fig 2: Locating Cigarette Lighter Assembly
    G06037786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL CIGARETTE LIGHTER BULB
    1. Install the cigarette lighter bulb.

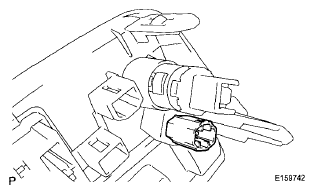

    Fig 3: Identifying Cigarette Lighter Bulb
    G06037782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL CIGARETTE LIGHTER COVER
    1. Engage the 2 claws to install the cigarette lighter cover.
  5. INSTALL CIGARETTE LIGHTER KNOB AND ELEMENT ASSEMBLY
  6. INSTALL NO. 2 SWITCH HOLE BASE  (See INSTALLATION )
  7. INSTALL FRONT UPPER CONSOLE BOX  (See INSTALLATION )

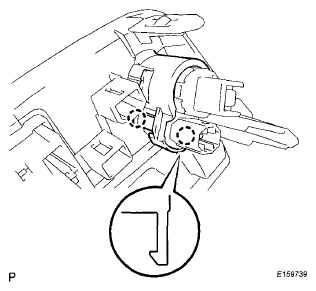

    Fig 4: Identifying Cigarette Lighter Cover And Claws
    G06037781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
