Power Outlet Socket: Removal

  1. REMOVE FRONT UPPER CONSOLE BOX  (See REMOVAL )
  2. REMOVE NO. 2 SWITCH HOLE BASE  (See REMOVAL )
  3. REMOVE POWER POINT SOCKET ASSEMBLY
    1. Disengage the claw and remove the power point socket assembly.

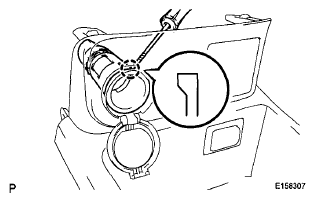

    Fig 1: Identifying Power Point Socket Assembly
    G06037790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE POWER OUTLET SOCKET COVER
    1. Disengage the 2 claws and remove the power outlet socket cover.
    Fig 2: Identifying Power Outlet Socket Cover And Claws
    G06037791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
