Oil Pump: Components

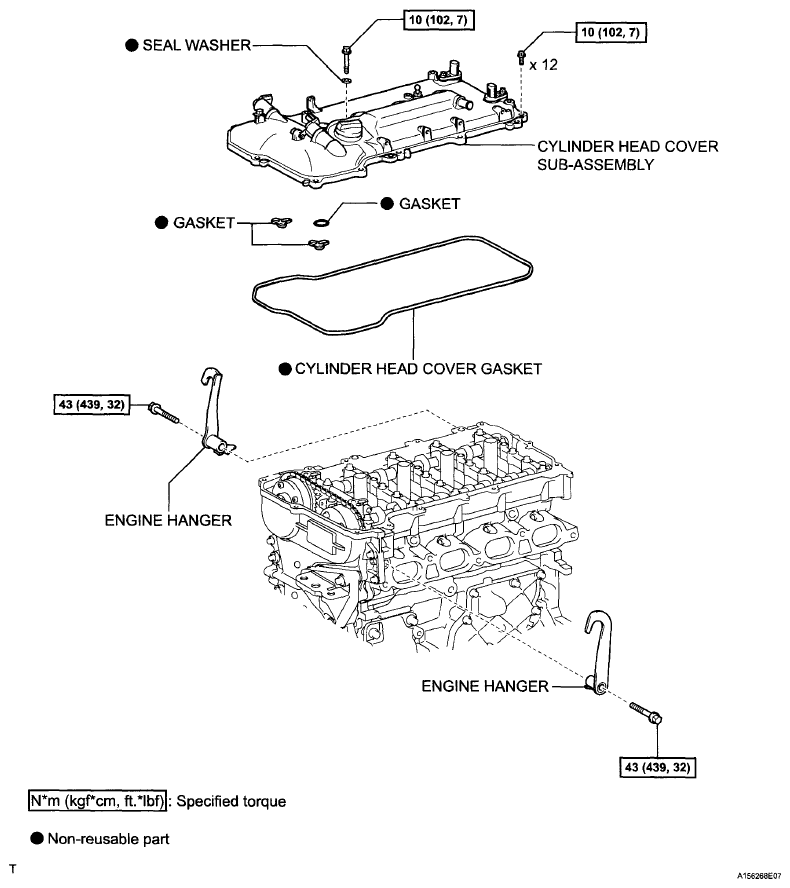

Fig 1: Engine Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

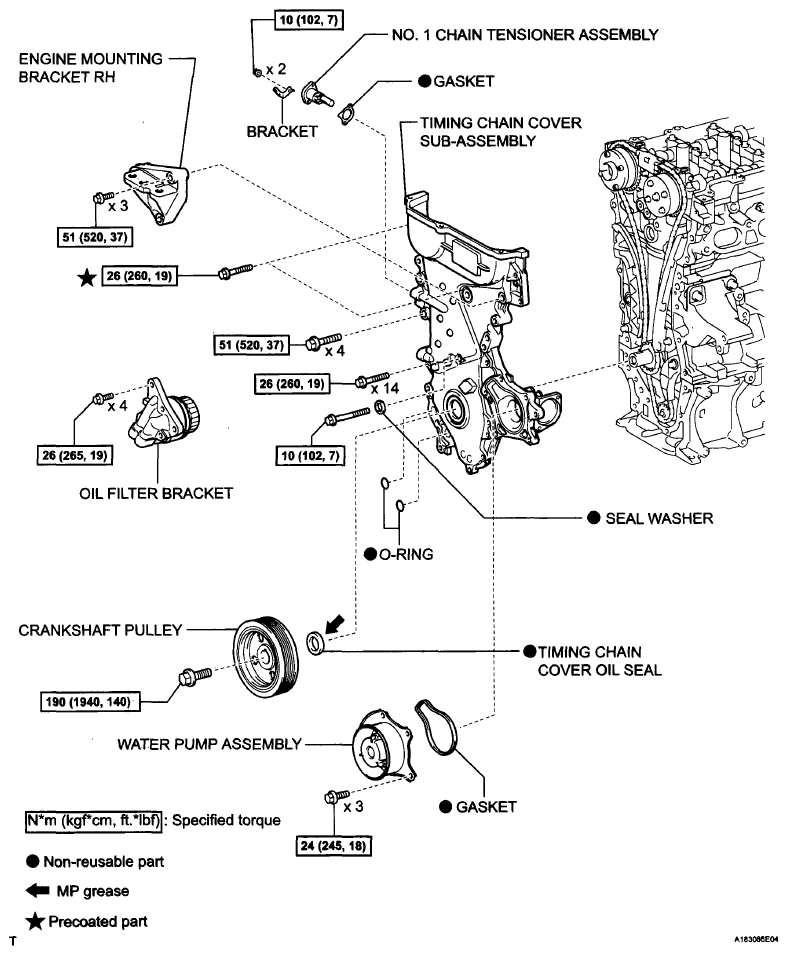

Fig 2: Engine Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

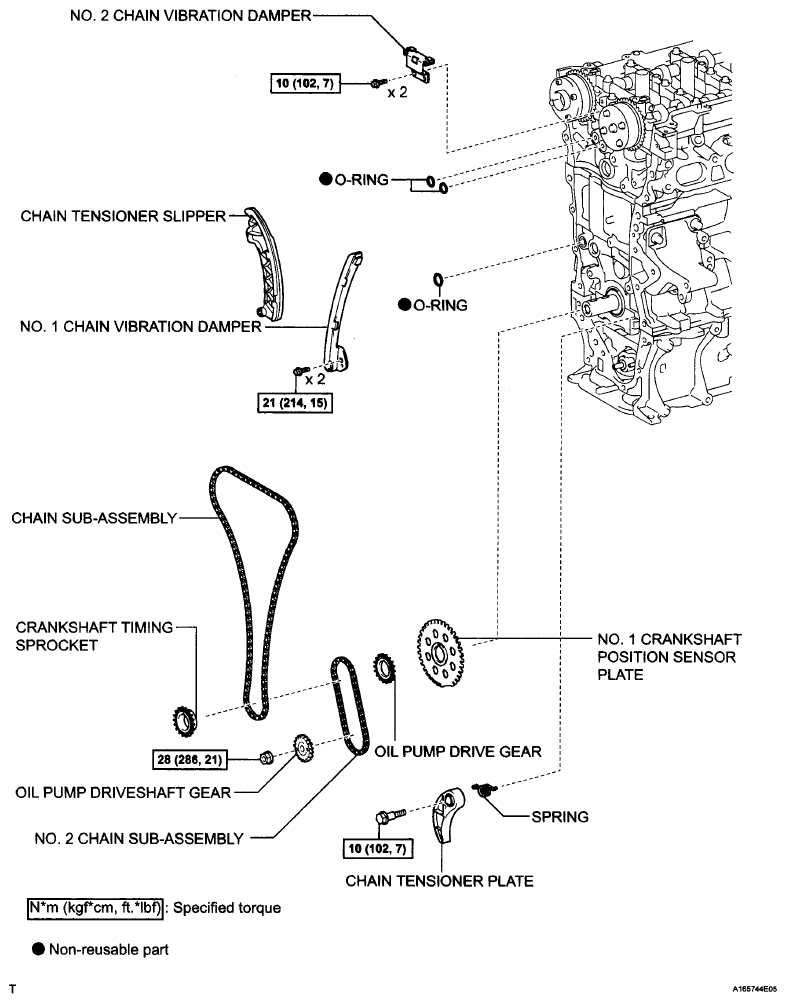

Fig 3: Engine Replacement Components With Torque Specifications (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

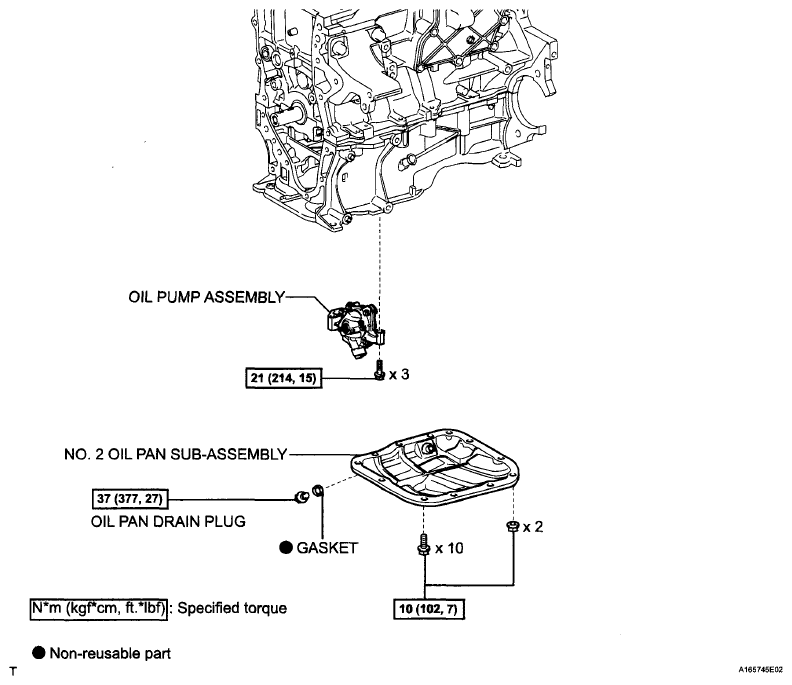

Fig 4: Engine Replacement Components With Torque Specifications (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Oil Pump Replacement Components With Torque Specifications (1 Of 3)

Fig 6: Oil Pump Replacement Components With Torque Specifications (2 Of 3)

Fig 7: Oil Pump Replacement Components With Torque Specifications (3 Of 3)
