Fuel Tank: Components

Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 2)
G06009930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

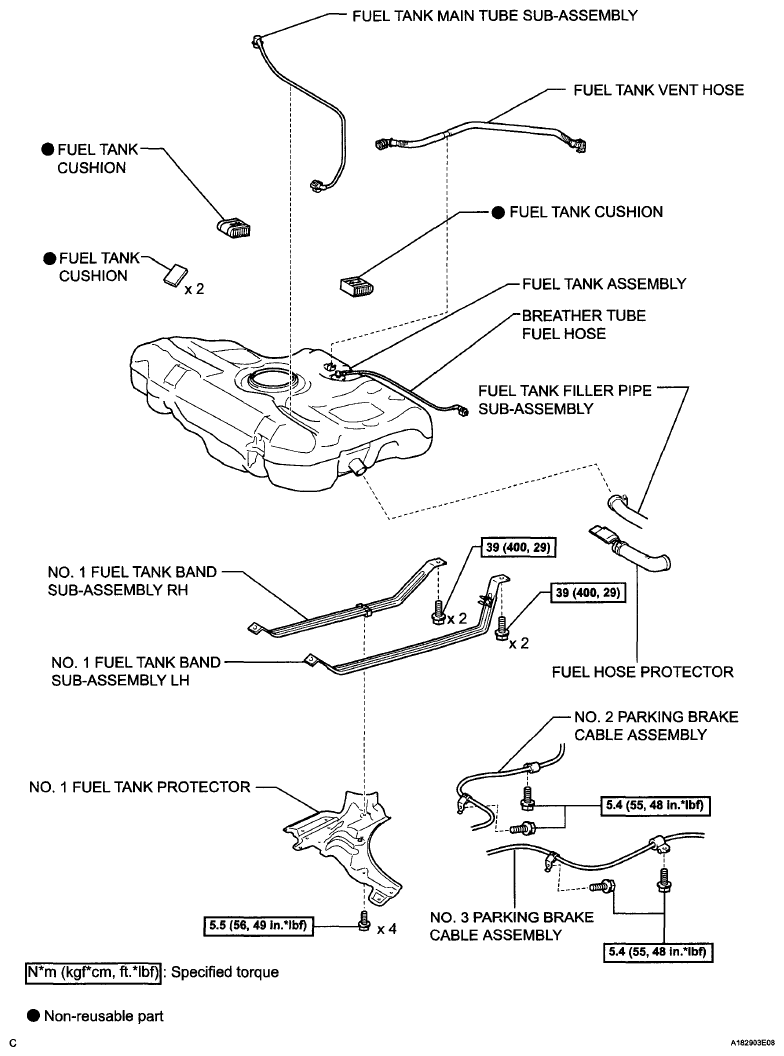

Fig 2: Fuel Tank Replacement Components With Torque Specifications (2 Of 2)
G06009795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
