2AZ-FE 2.4L

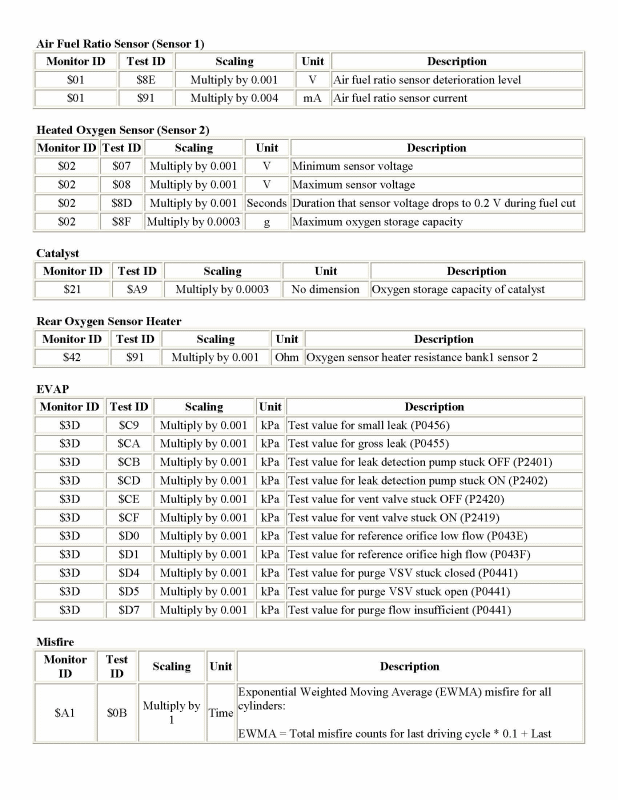

Fig 1: Mode 6 Data For Matrix 2.4L (1 Of 3)
G00526078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

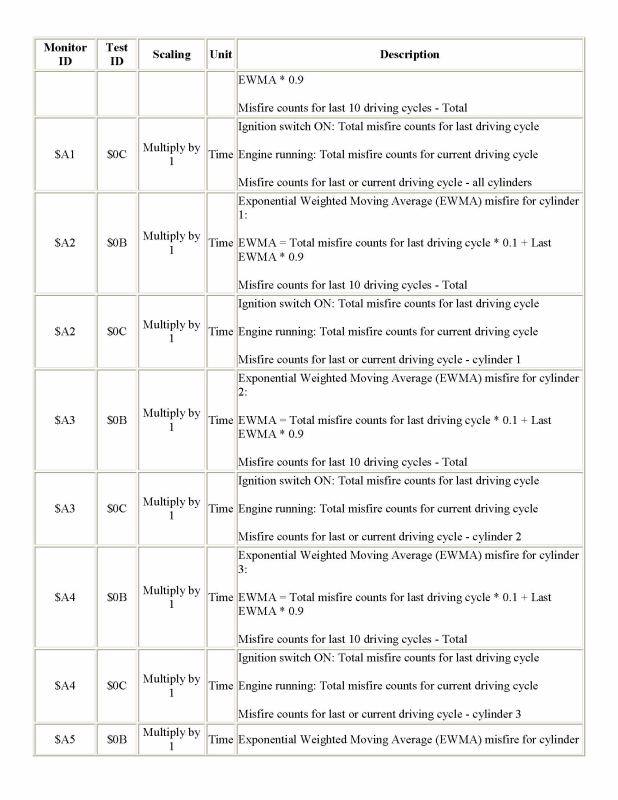

Fig 2: Mode 6 Data For Matrix 2.4L (2 Of 3)
G00526079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

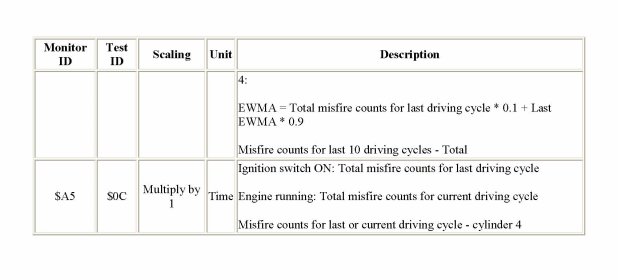

Fig 3: Mode 6 Data For Matrix 2.4L (3 Of 3)
G00526080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
