Front Shock Absorber: Components

Fig 1: Front Shock Absorber Replacement Components With Torque Specifications (1 Of 3)
G06034496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

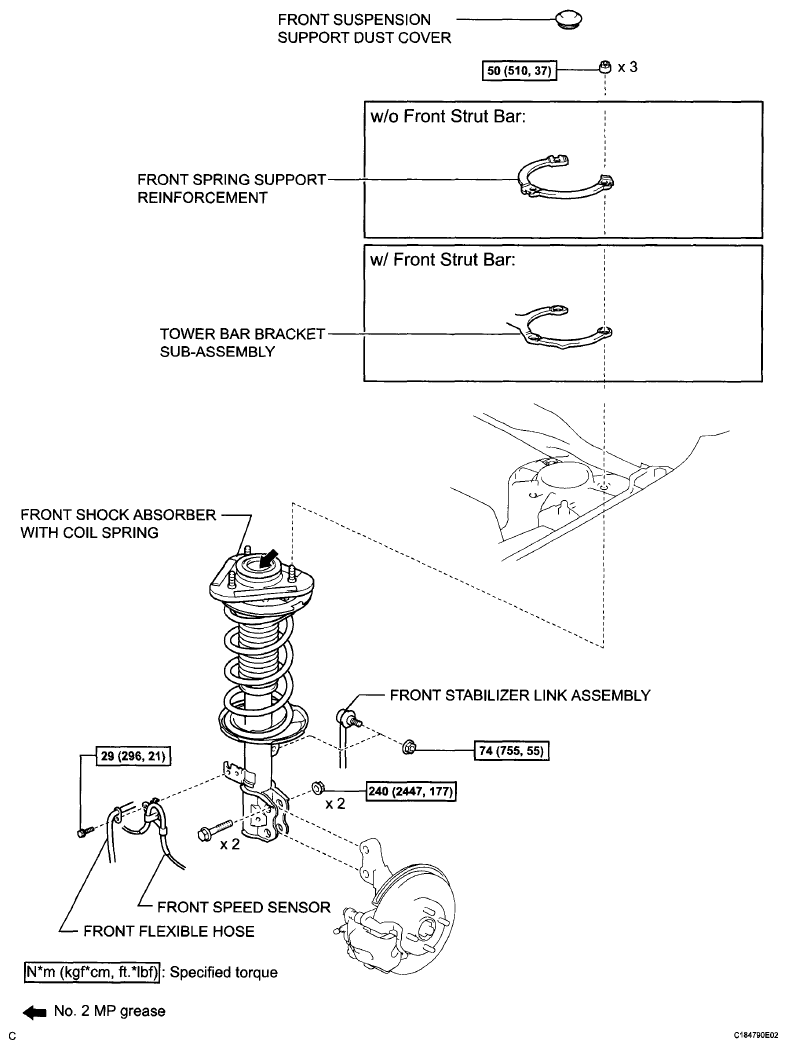

Fig 2: Front Shock Absorber Replacement Components With Torque Specifications (2 Of 3)
G06034510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

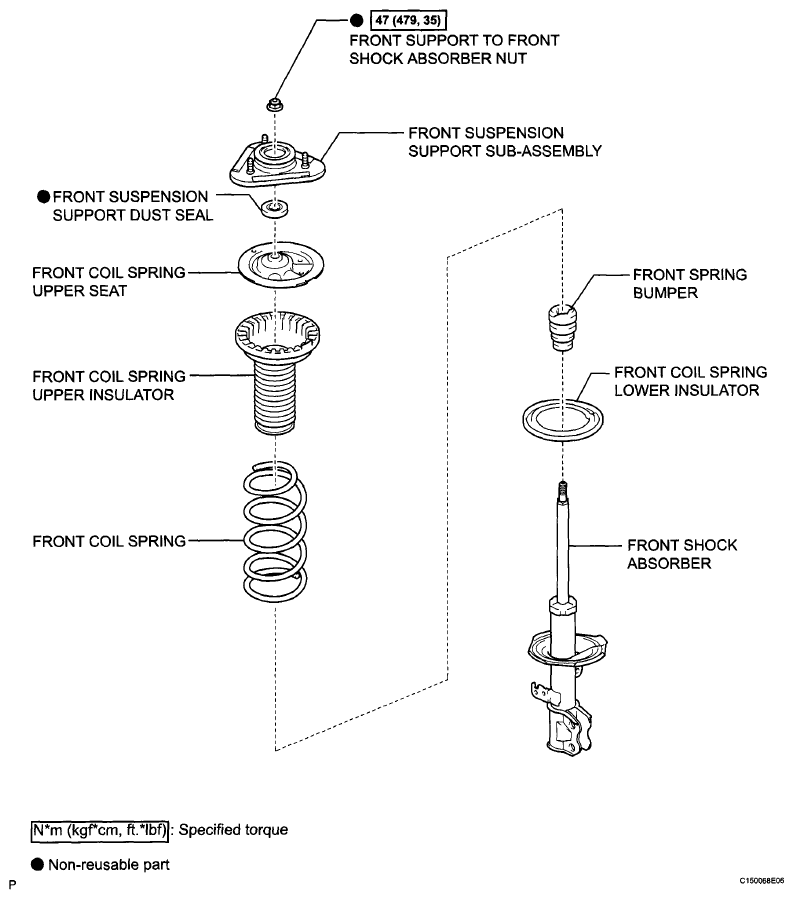

Fig 3: Front Shock Absorber Replacement Components With Torque Specifications (3 Of 3)
G06034511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
