Front Strut Bar: Components

Fig 1: Front Shock Absorber Replacement Components With Torque Specifications (1 Of 3)
G06034496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

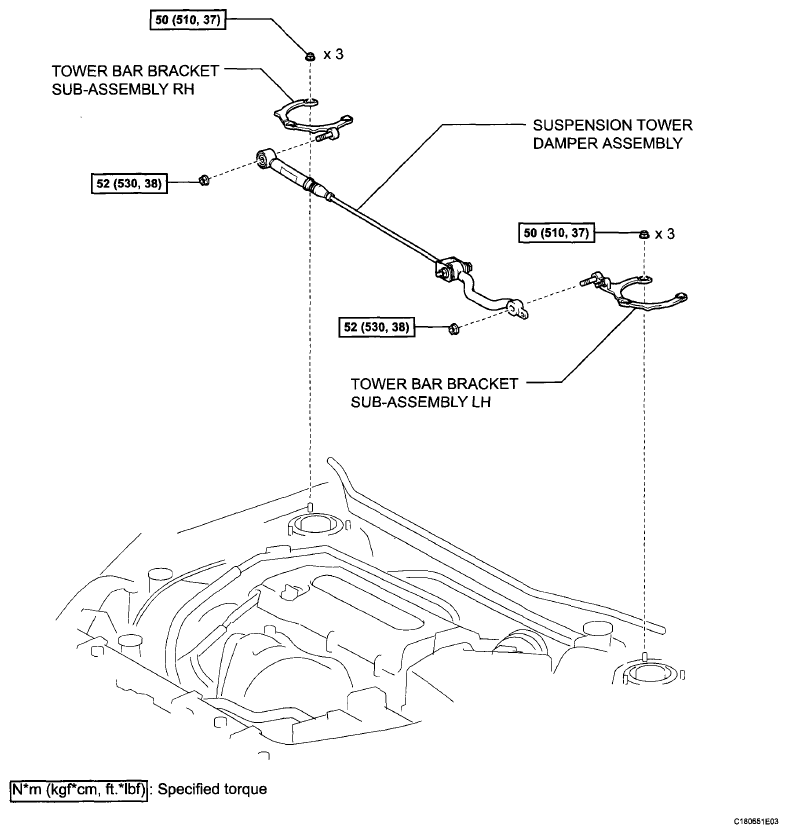

Fig 2: Front Strut Bar Replacement Components With Torque Specifications (2 Of 2)
G06034497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
