Steering Wheel: Components

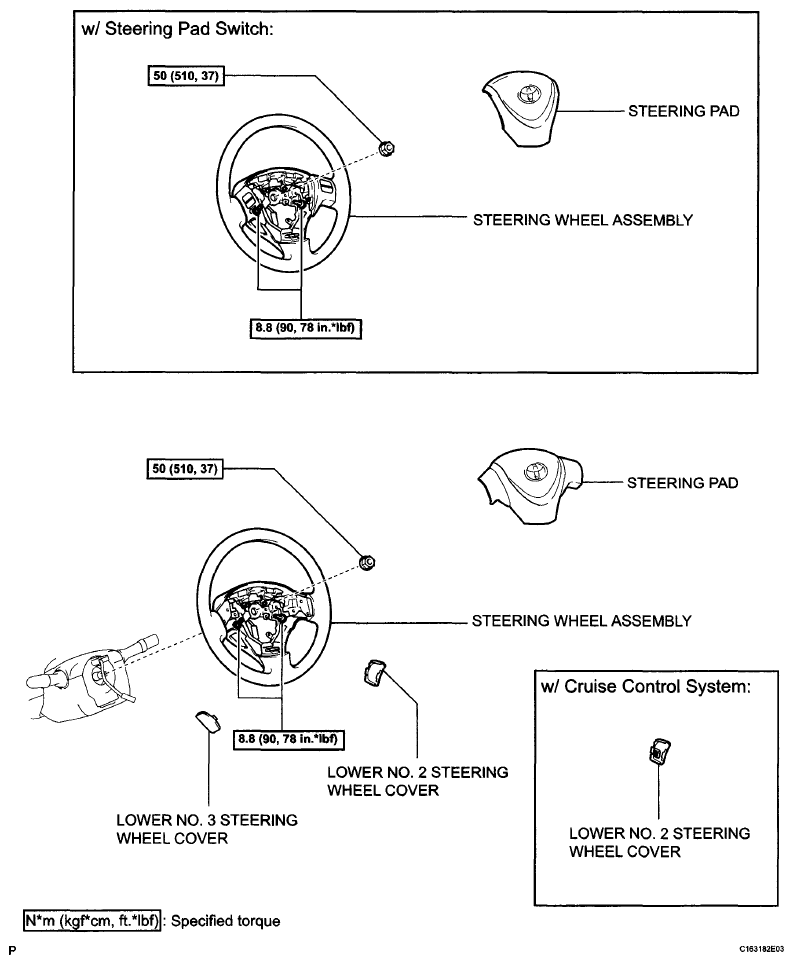

Fig 1: Steering Wheel Replacement Components With Torque Specifications
G06042951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

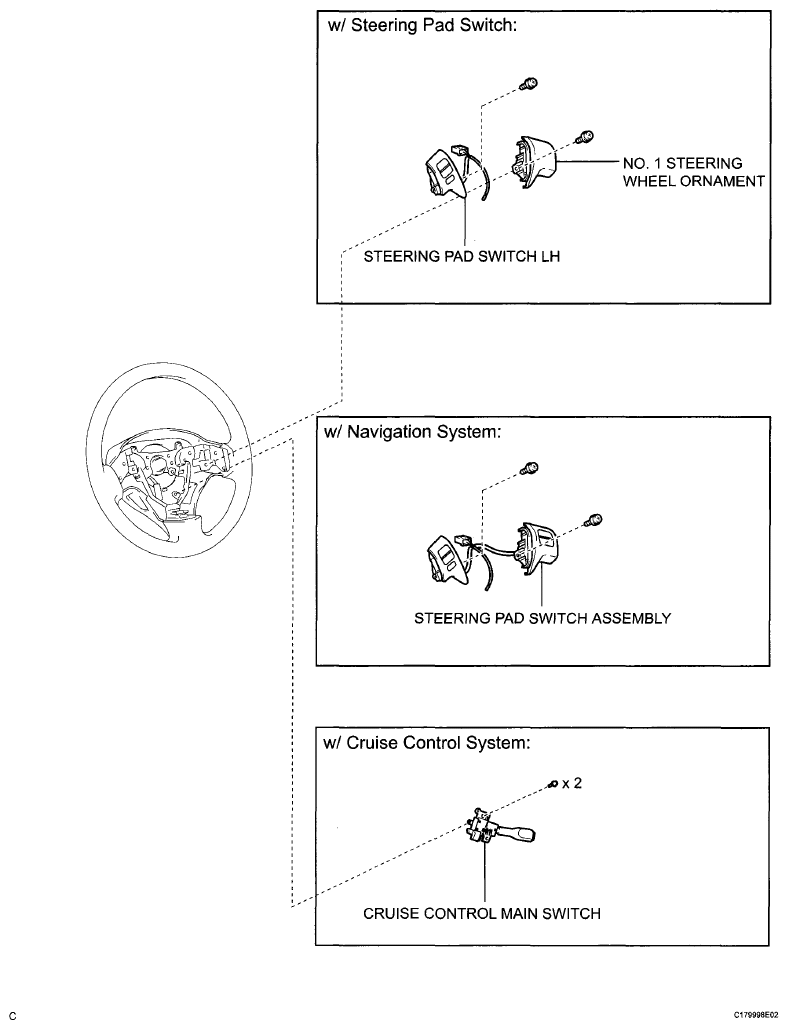

Fig 2: Identifying Steering Pad And Cruise Control Switch Assembly
G06035598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

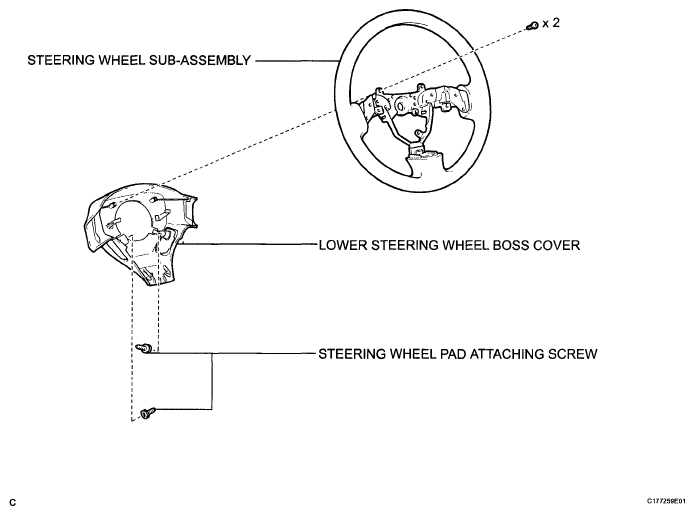

Fig 3: Identifying Lower Steering Wheel Boss Cover And Steering Wheel Pad Attaching Screws
G06010408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
