Air Fuel Ratio Sensor: Components

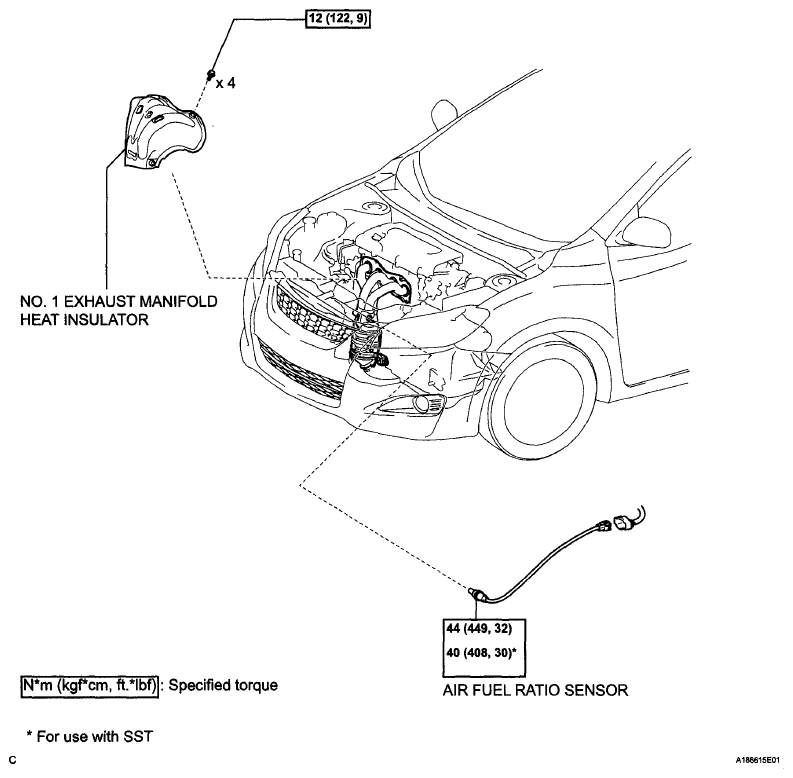

Fig 1: Identifying Air Fuel Ratio Sensor Components

G06040368

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
