Toyota
>>
2009
>>
Matrix XRS, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System (2AZ-FE)
>>
Camshaft Oil Control Valve
>>
Components
Camshaft Oil Control Valve: Components

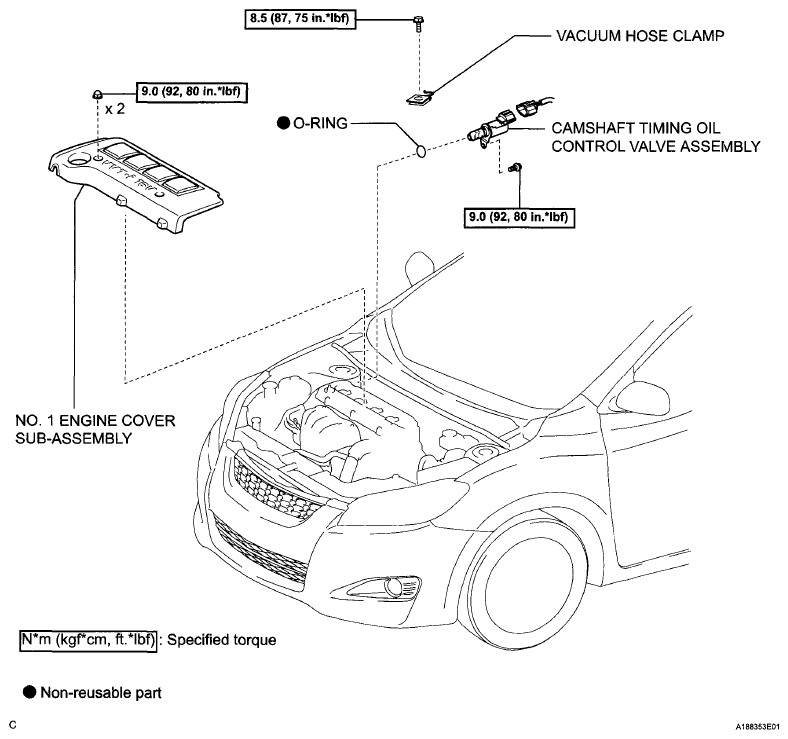

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
