Home >> Toyota >> 2009 >> Matrix XRS, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control System (2AZ-FE) >> Ignition Coil And Spark Plug >> Components

Ignition Coil And Spark Plug: Components

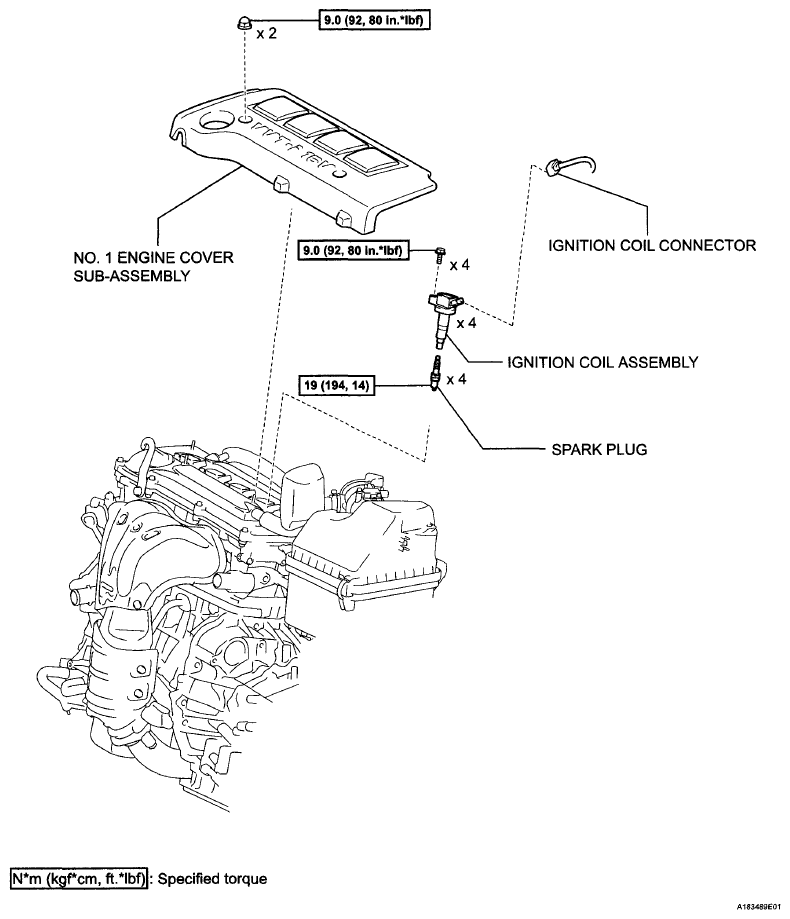

Fig 1: Identifying Ignition Coil And Spark Plug Components

G06040337

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
