Home >> Toyota >> 2009 >> Prius Base >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Clock >> Notes

OEM System Circuits: Clock: Notes

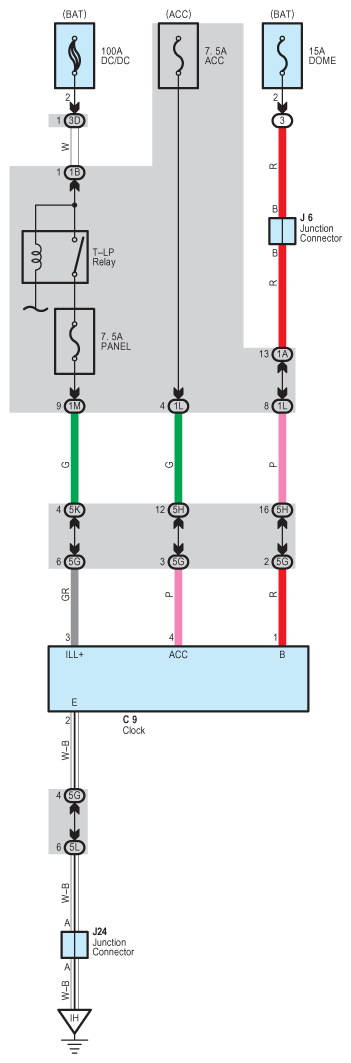

Fig 1: Clock - Circuit Diagram

G07611077

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
