Combination Meter: Notes

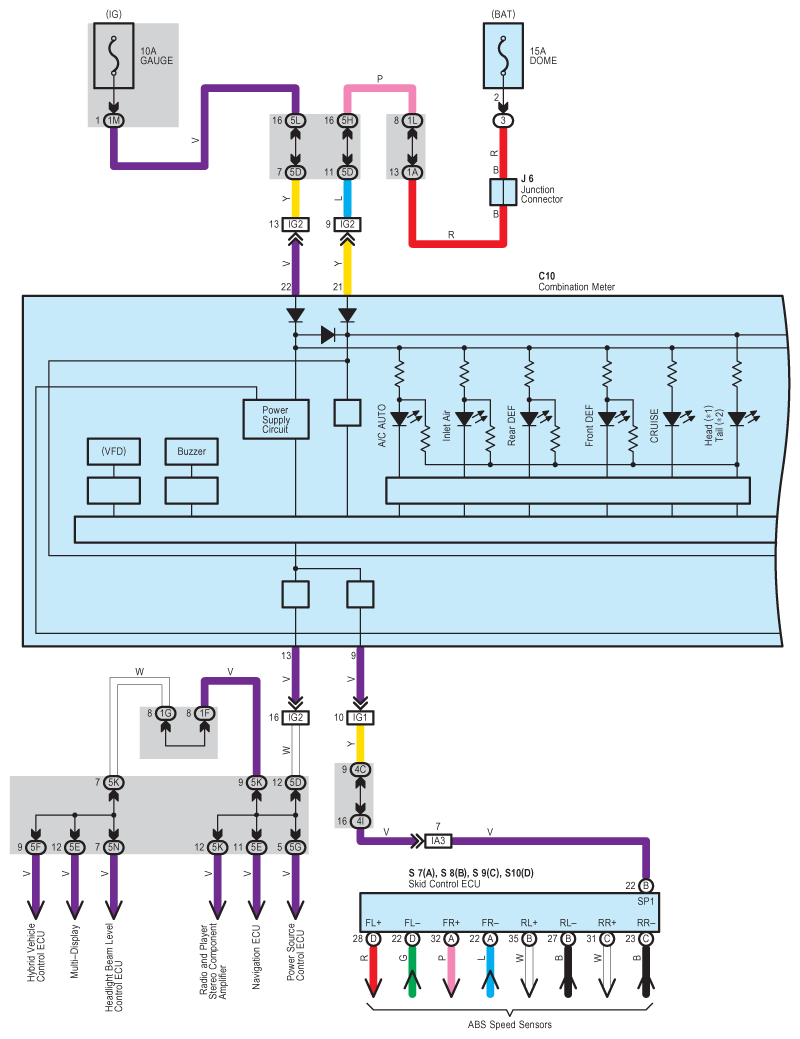

Fig 1: Combination Meter - Circuit Diagram (1 Of 4)
G07611096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

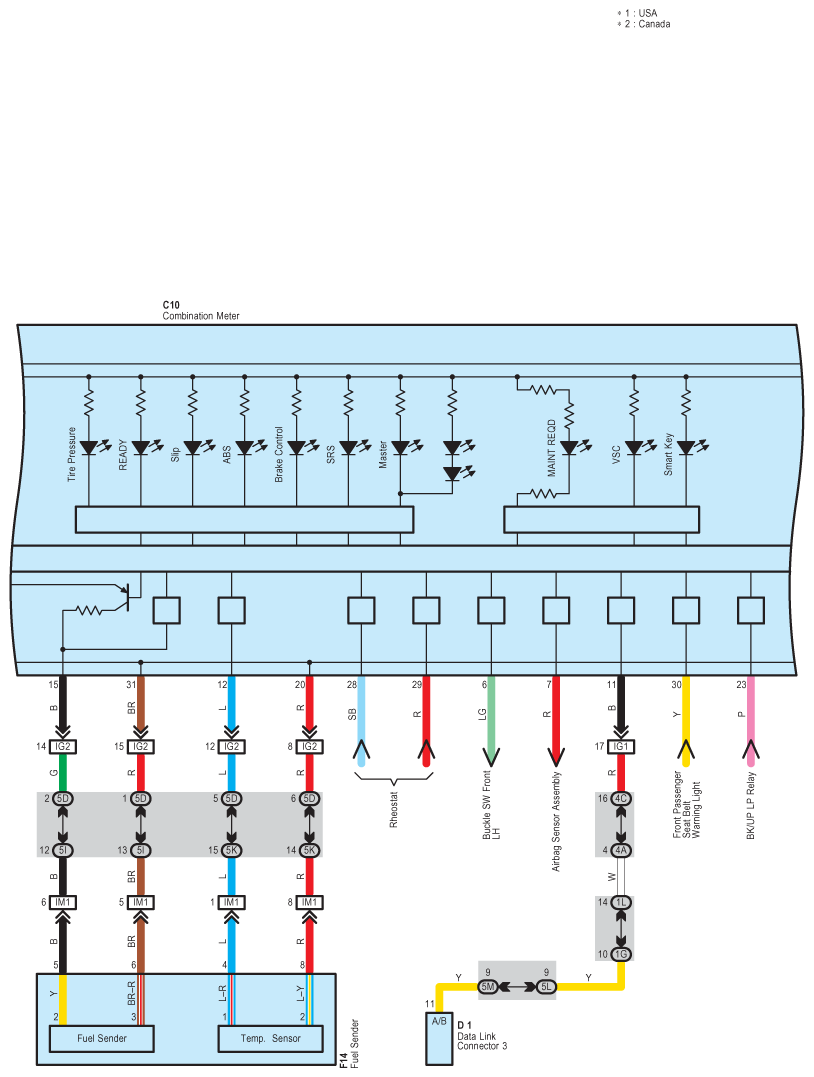

Fig 2: Combination Meter - Circuit Diagram (2 Of 4)
G07611097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

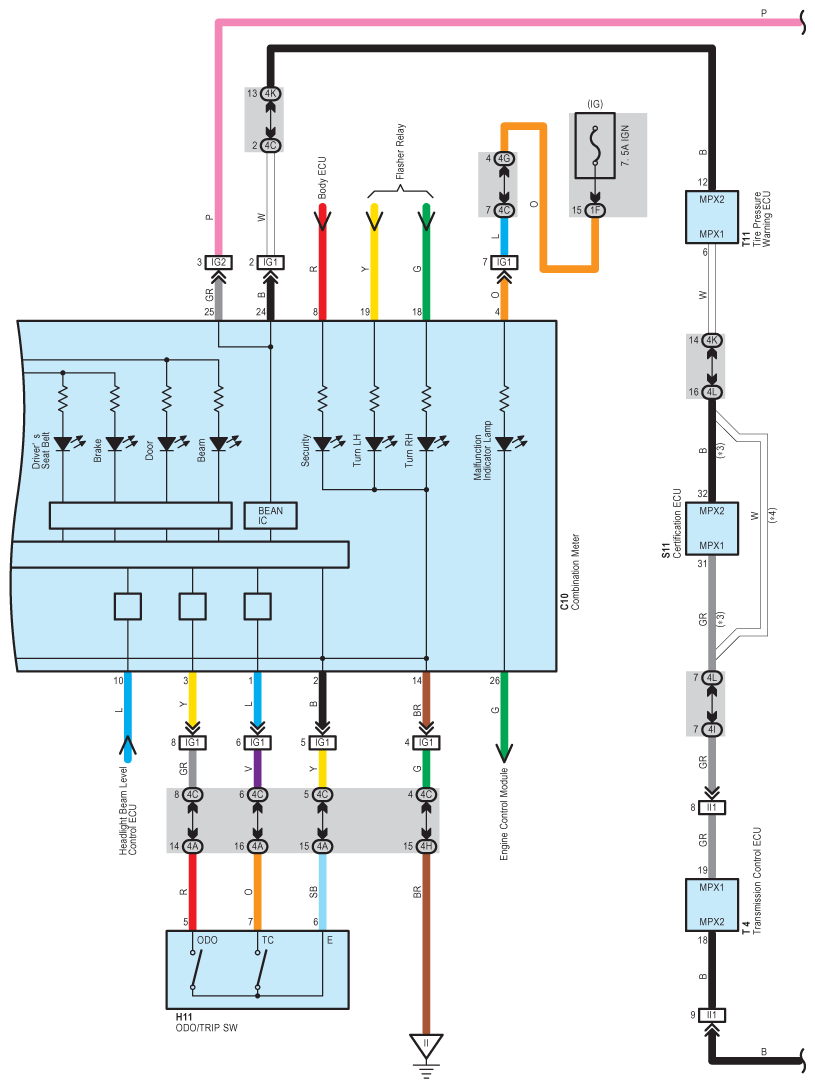

Fig 3: Combination Meter - Circuit Diagram (3 Of 4)
G07611098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

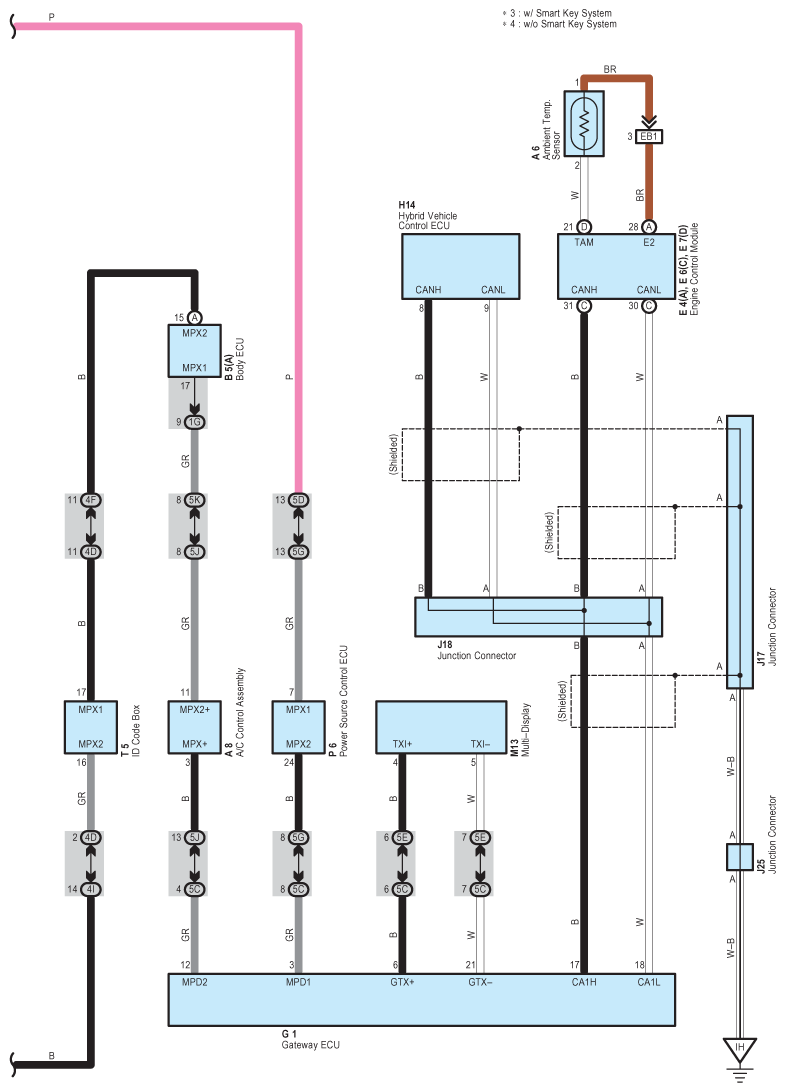

Fig 4: Combination Meter - Circuit Diagram (4 Of 4)
G07611099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
