Front Fog Light: Notes

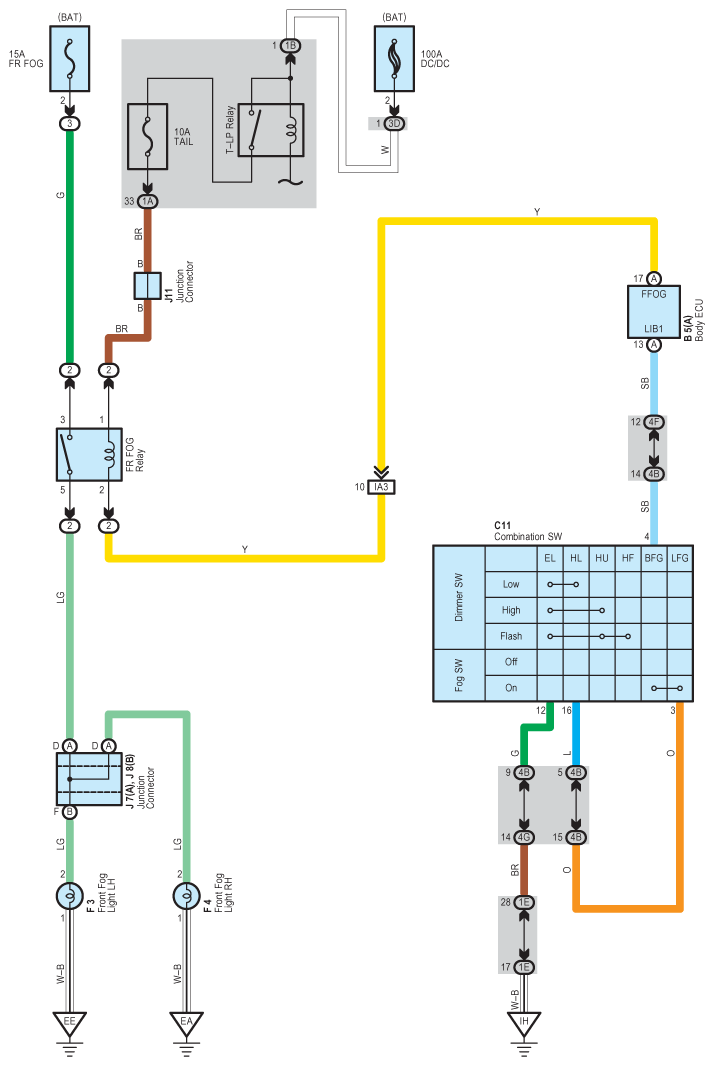

Fig 1: Front Fog Light - Circuit Diagram
G07610977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
