Front Wiper and Washer: Notes

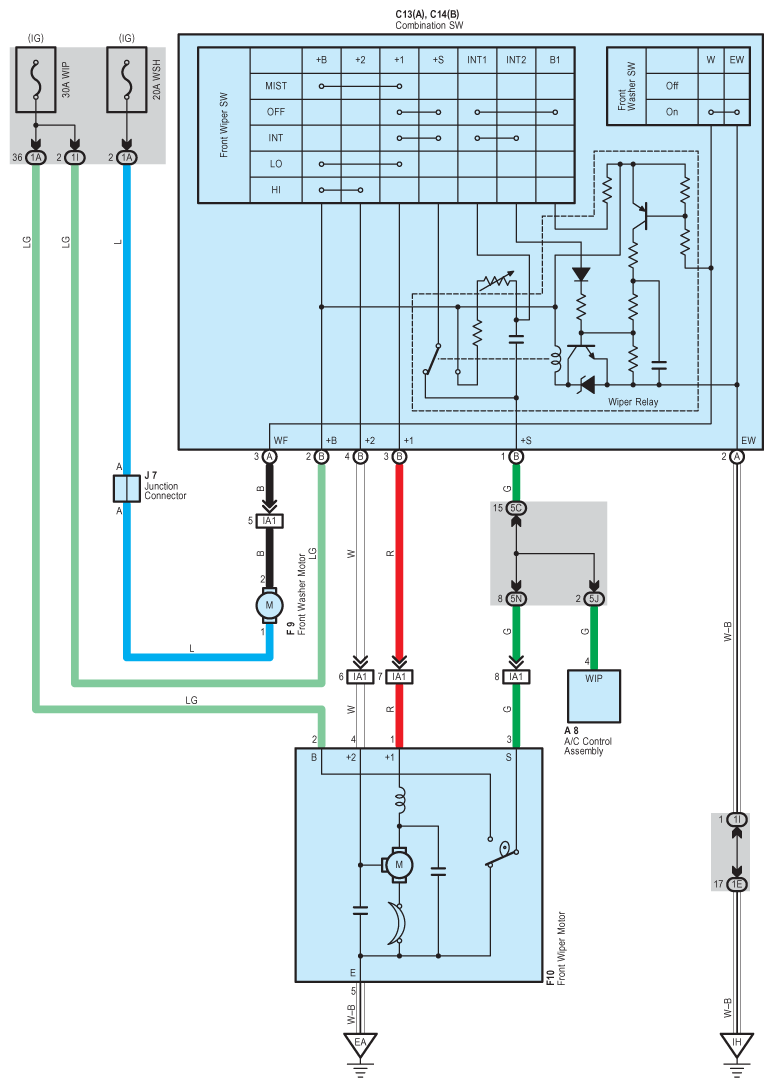

Fig 1: Front Wiper And Washer - Circuit Diagram
G07610997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
