Home >> Toyota >> 2009 >> Prius Base >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Power Window >> Notes

Power Window: Notes

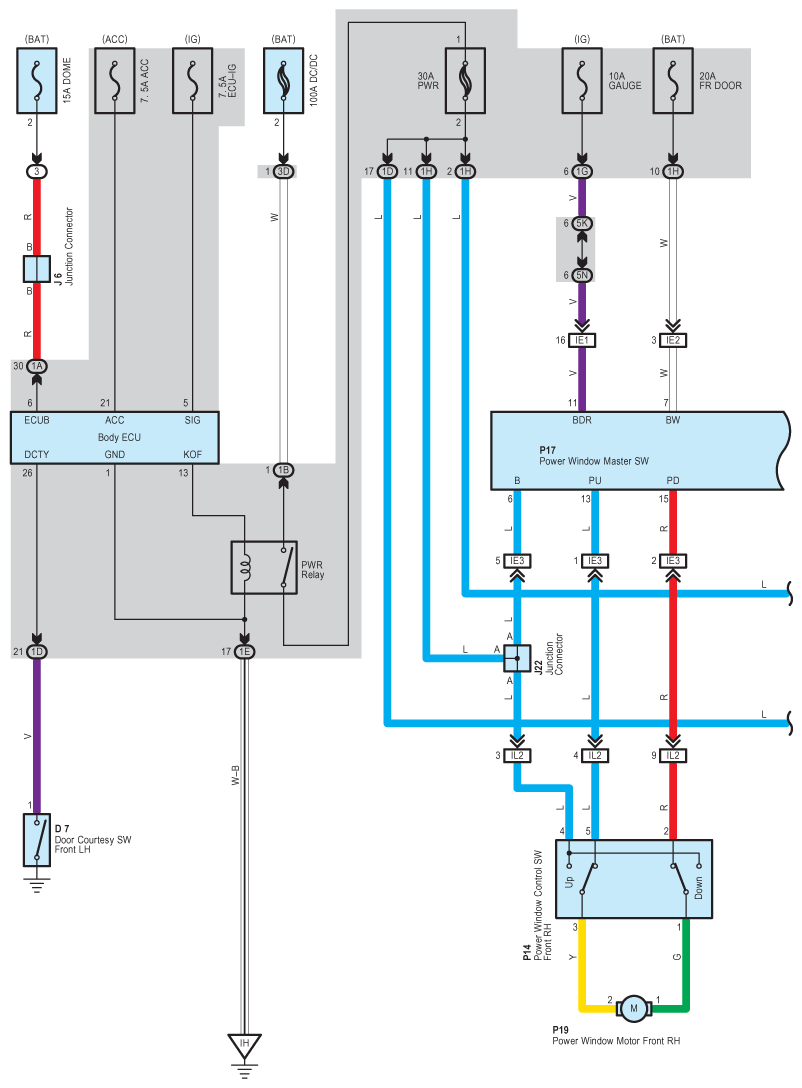

Fig 1: Power Window - Circuit Diagram (1 Of 2)
G07610999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

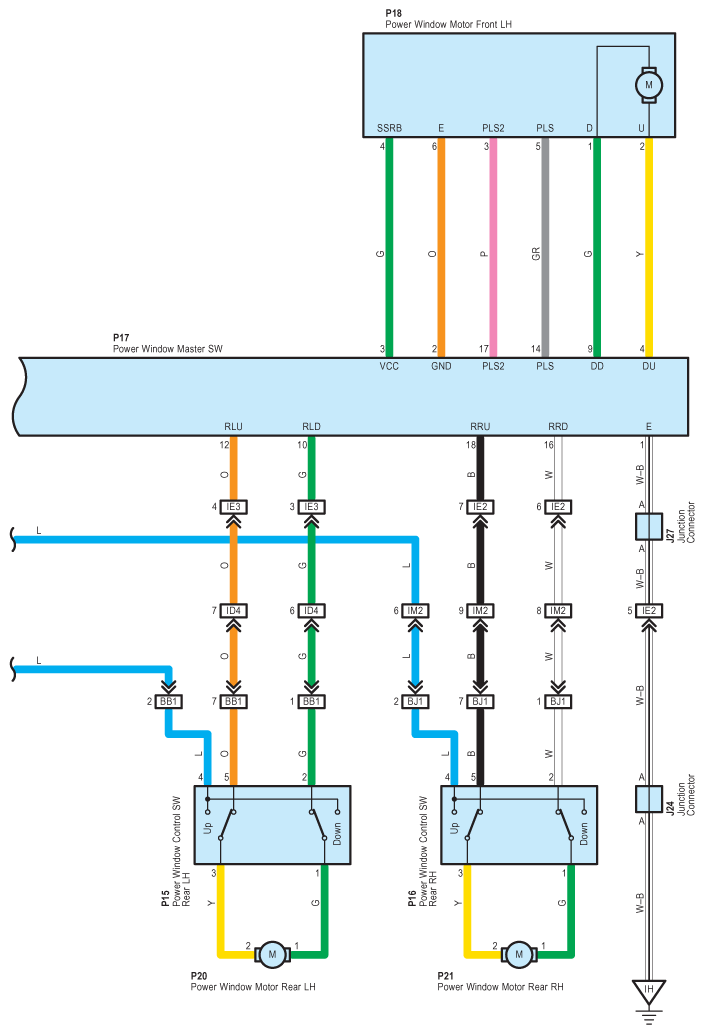

Fig 2: Power Window - Circuit Diagram (2 Of 2)
G07611000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
