Home >> Toyota >> 2009 >> Prius Base >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Seat Beat Warning >> Notes

Seat Beat Warning: Notes

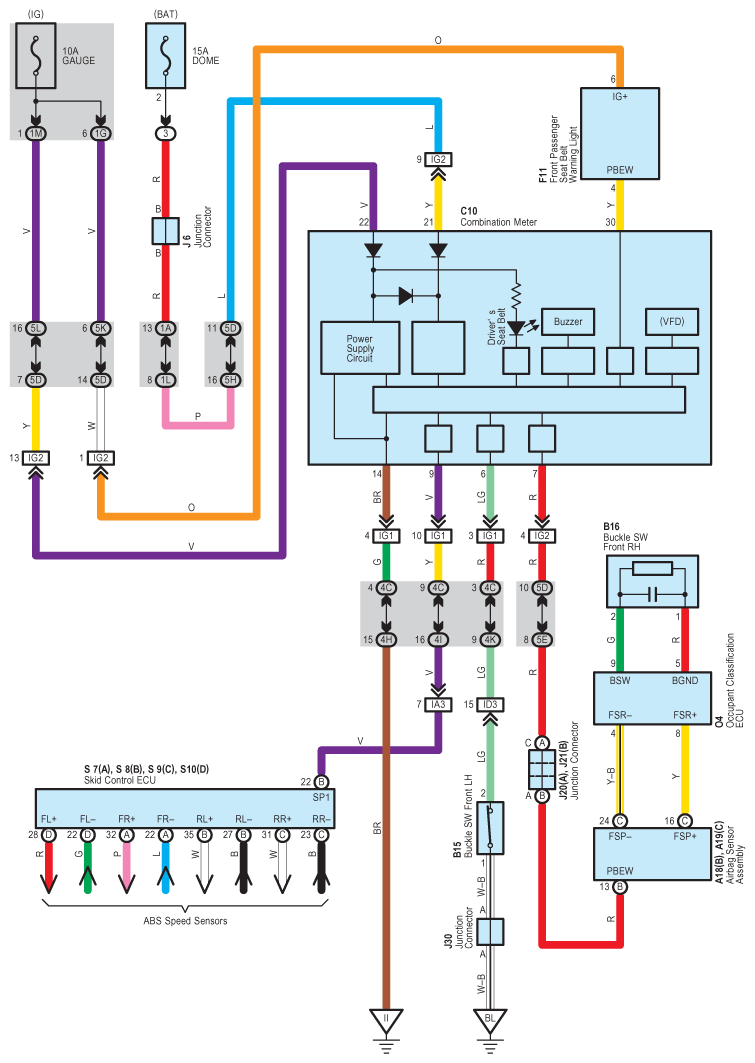

Fig 1: Seat Beat Warning - Circuit Diagram
G07610996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
