Home >> Toyota >> 2009 >> Prius Base >> Repair and Diagnosis >> Electrical >> Horns >> High Pitched Horn >> Components

High Pitched Horn: Components

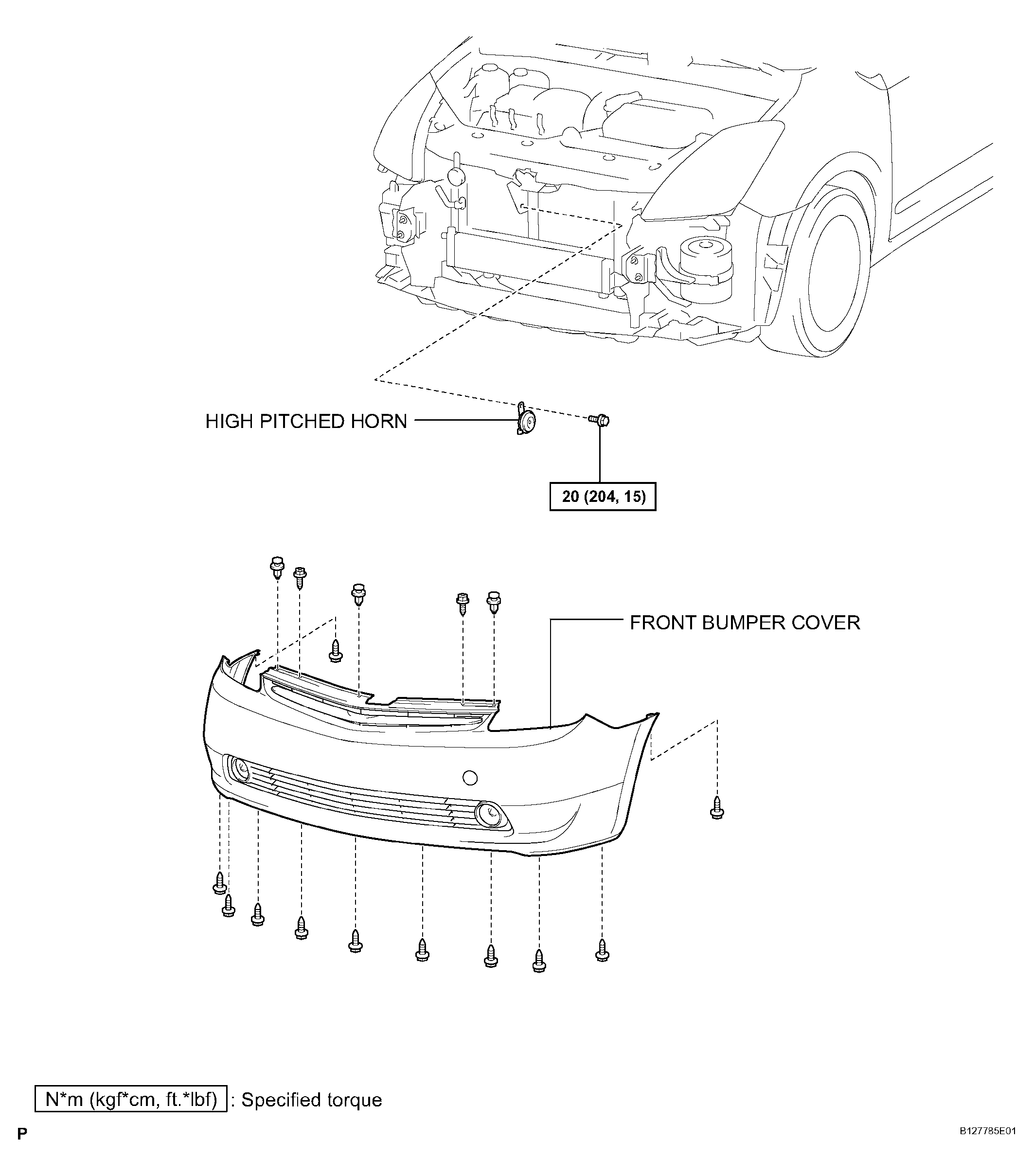

Fig 1: Identifying High Pitched Horn Components

G04476704

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
