Steering Gear: Components

Fig 1: Steering Gear Replacement Components -- With Torque Specification (1 Of 2)
G04474967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

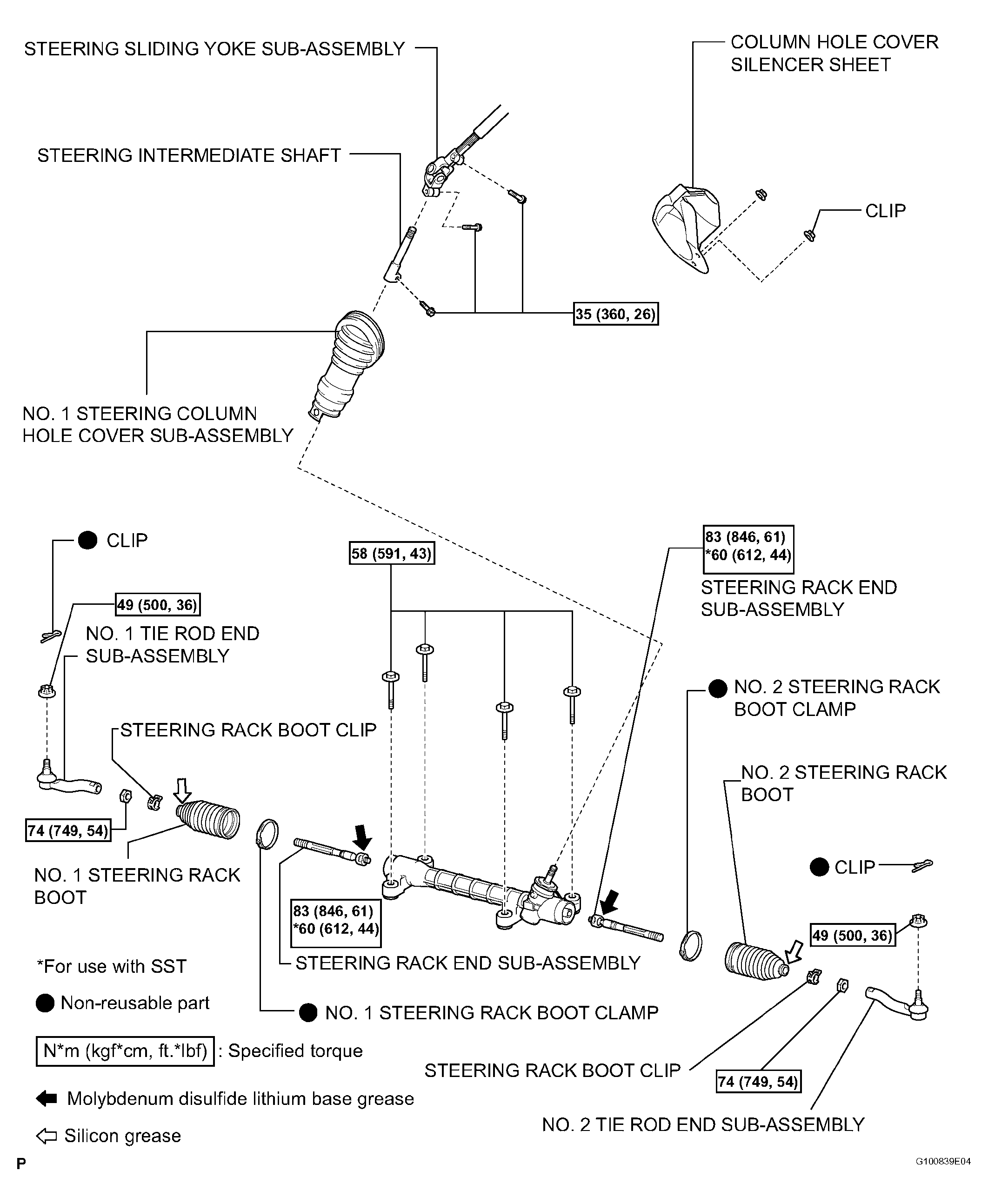

Fig 2: Steering Gear Replacement Components -- With Torque Specification (2 Of 2)
G04474968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
