Front Lower Ball Joint: Components

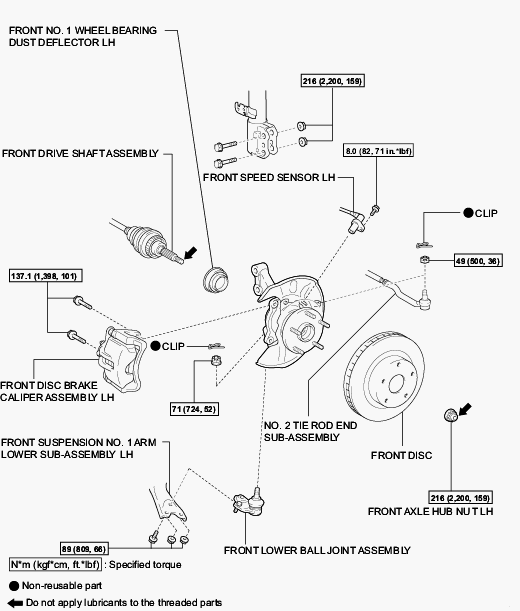

Fig 1: Front Lower Ball Joint Replacement Components -- With Torque Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
