Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

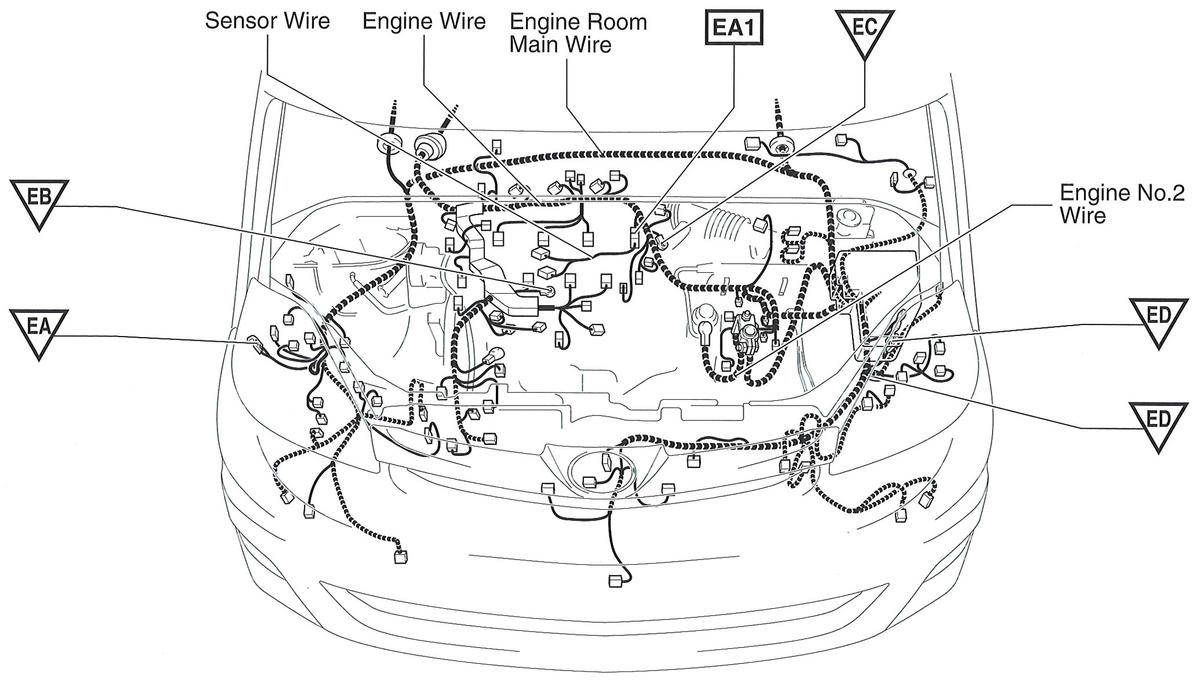

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

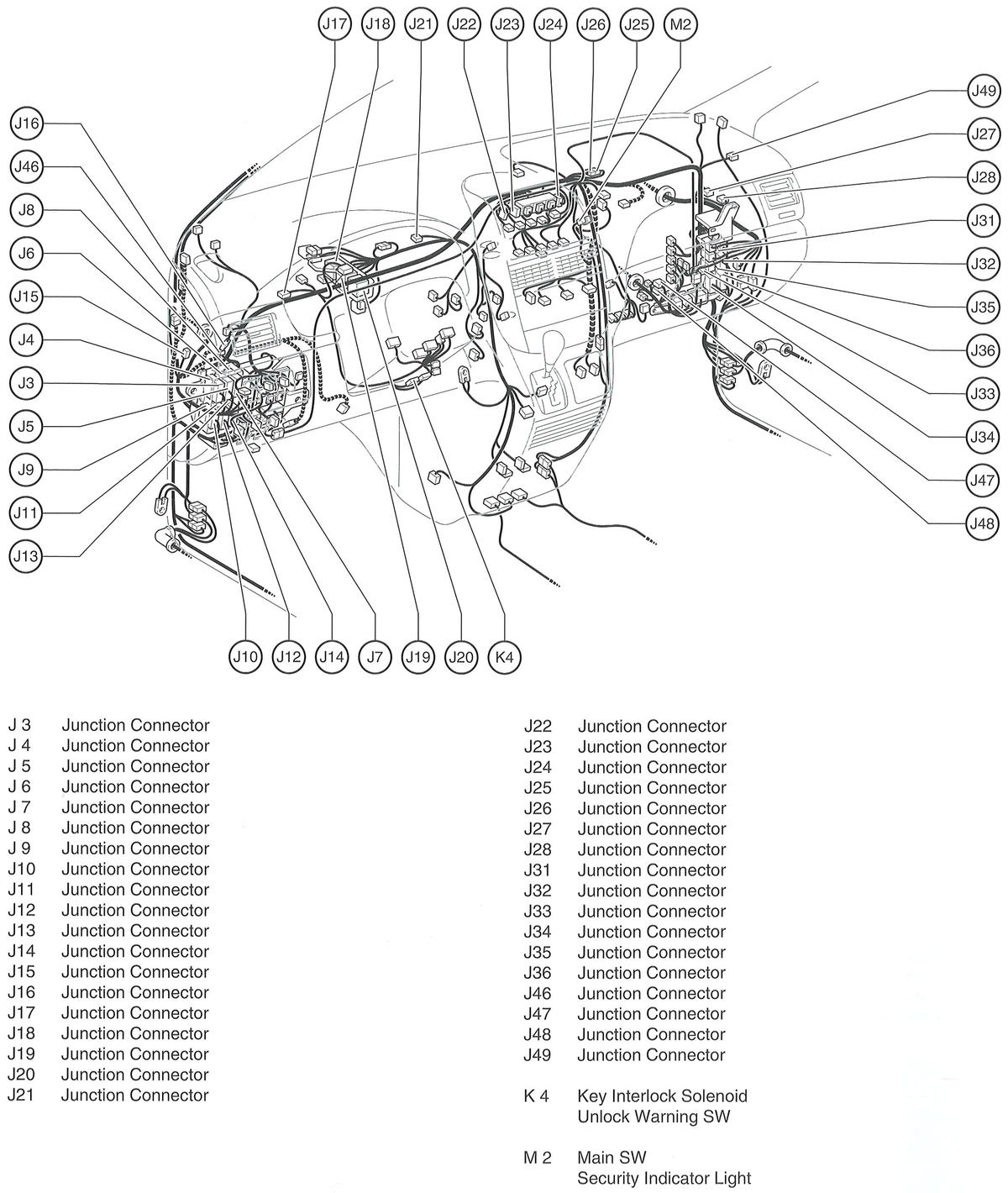

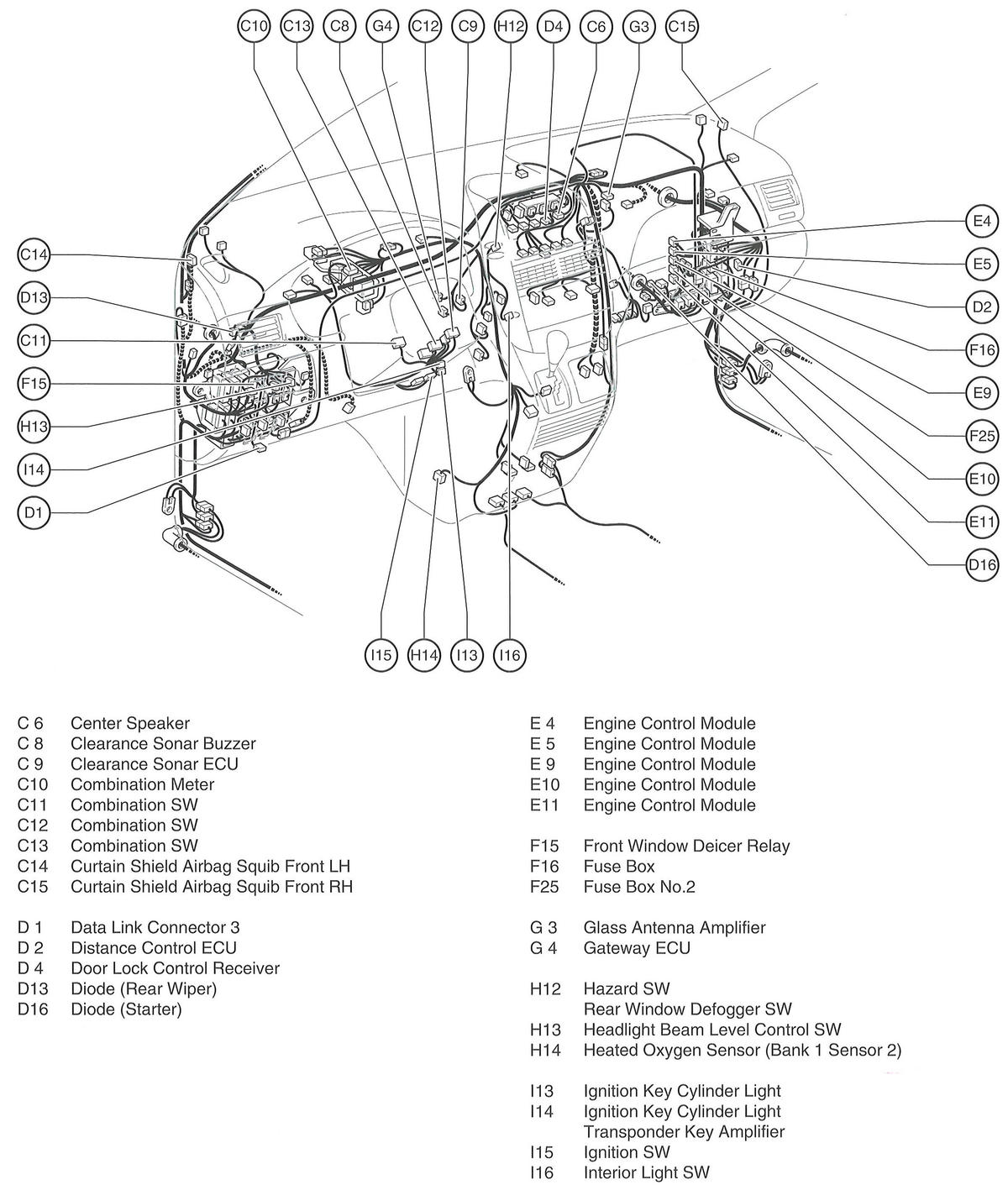

Fig 3: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

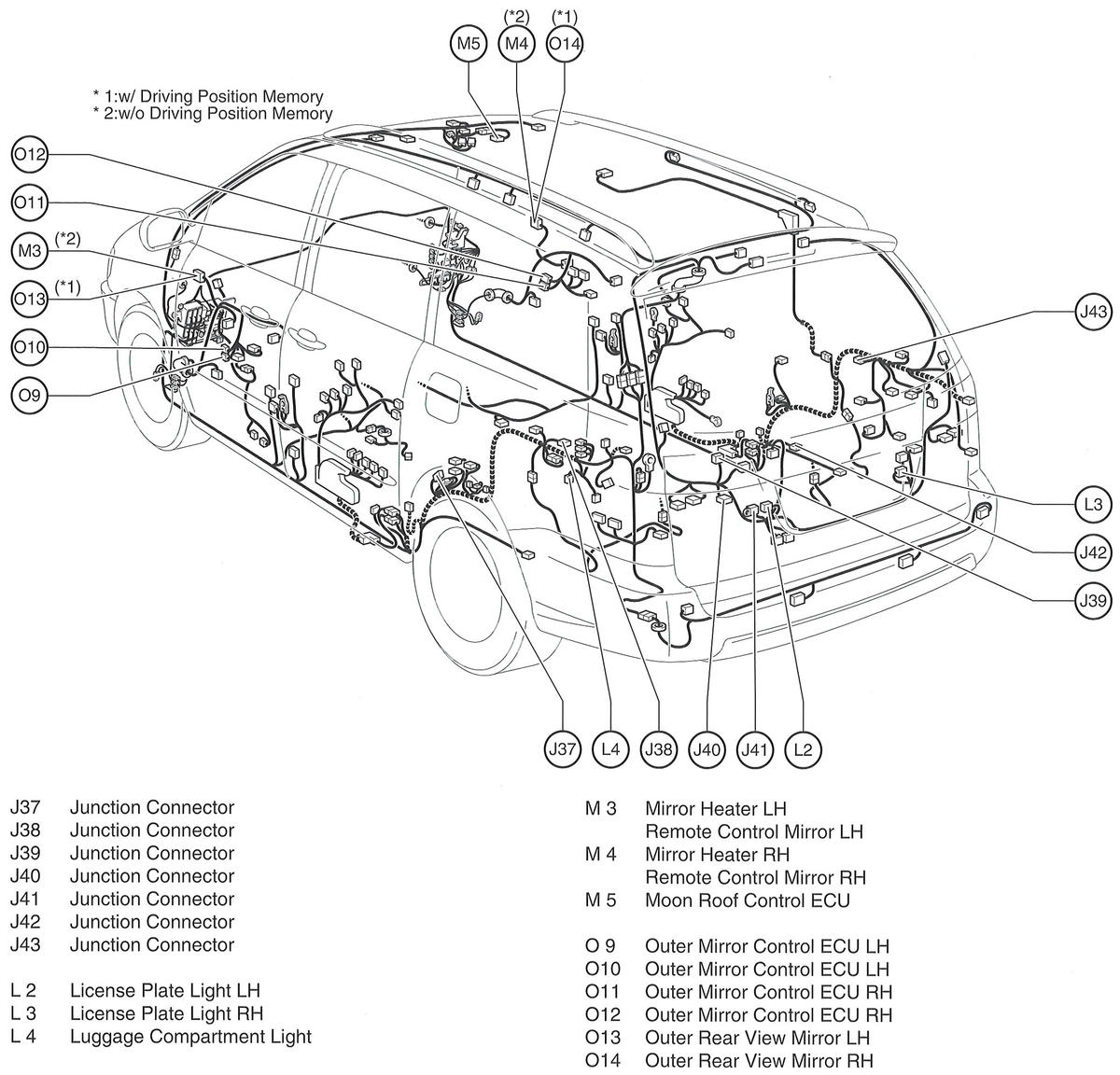

Fig 7: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

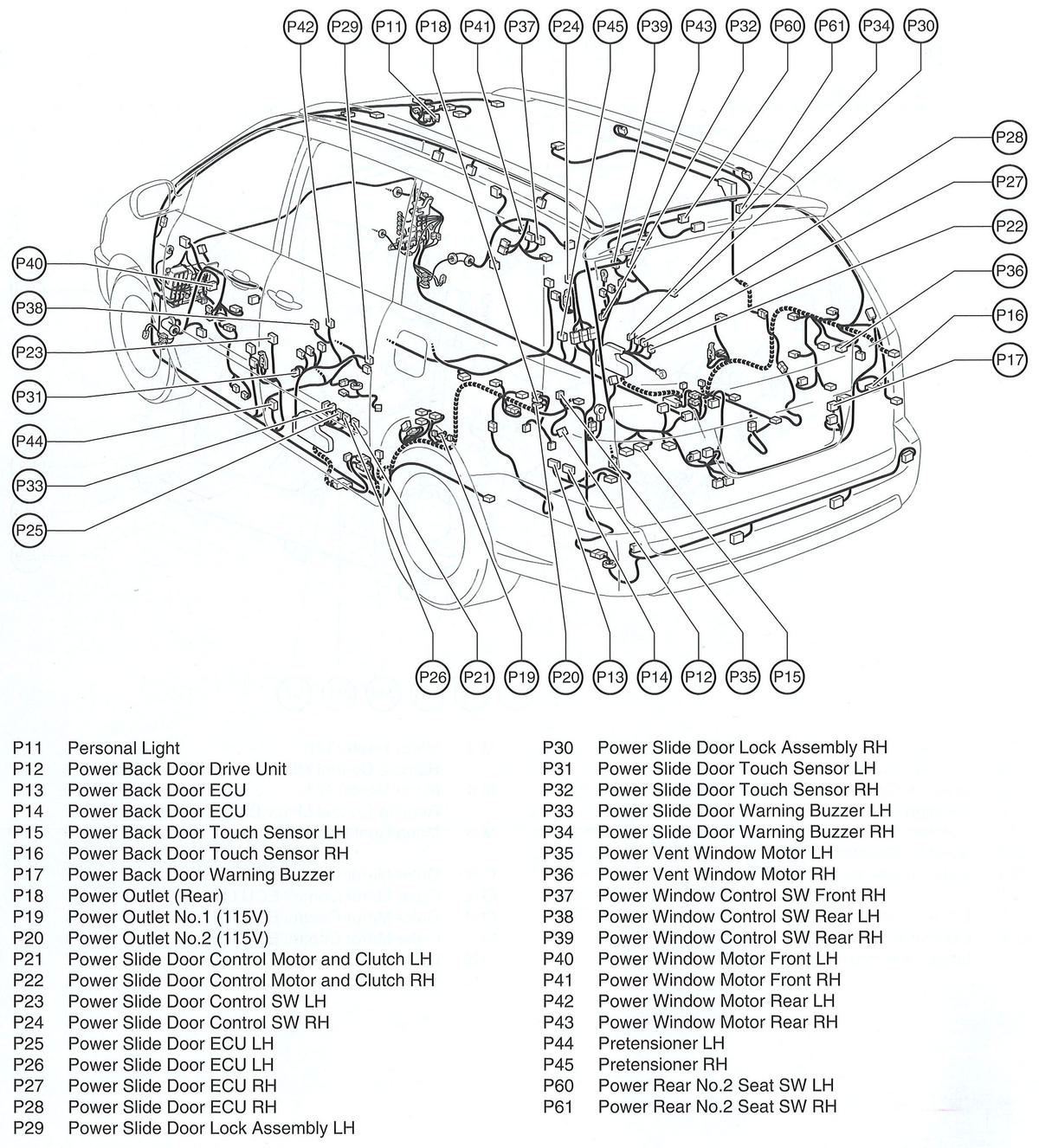

Fig 8: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

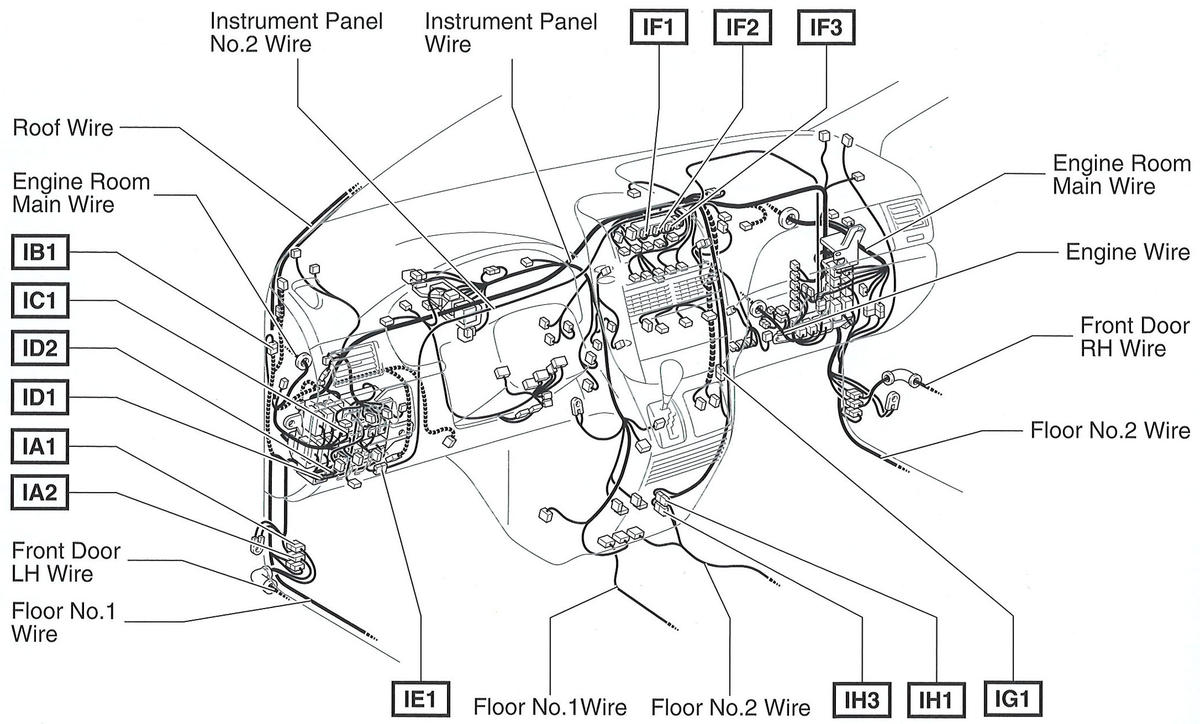

Fig 10: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

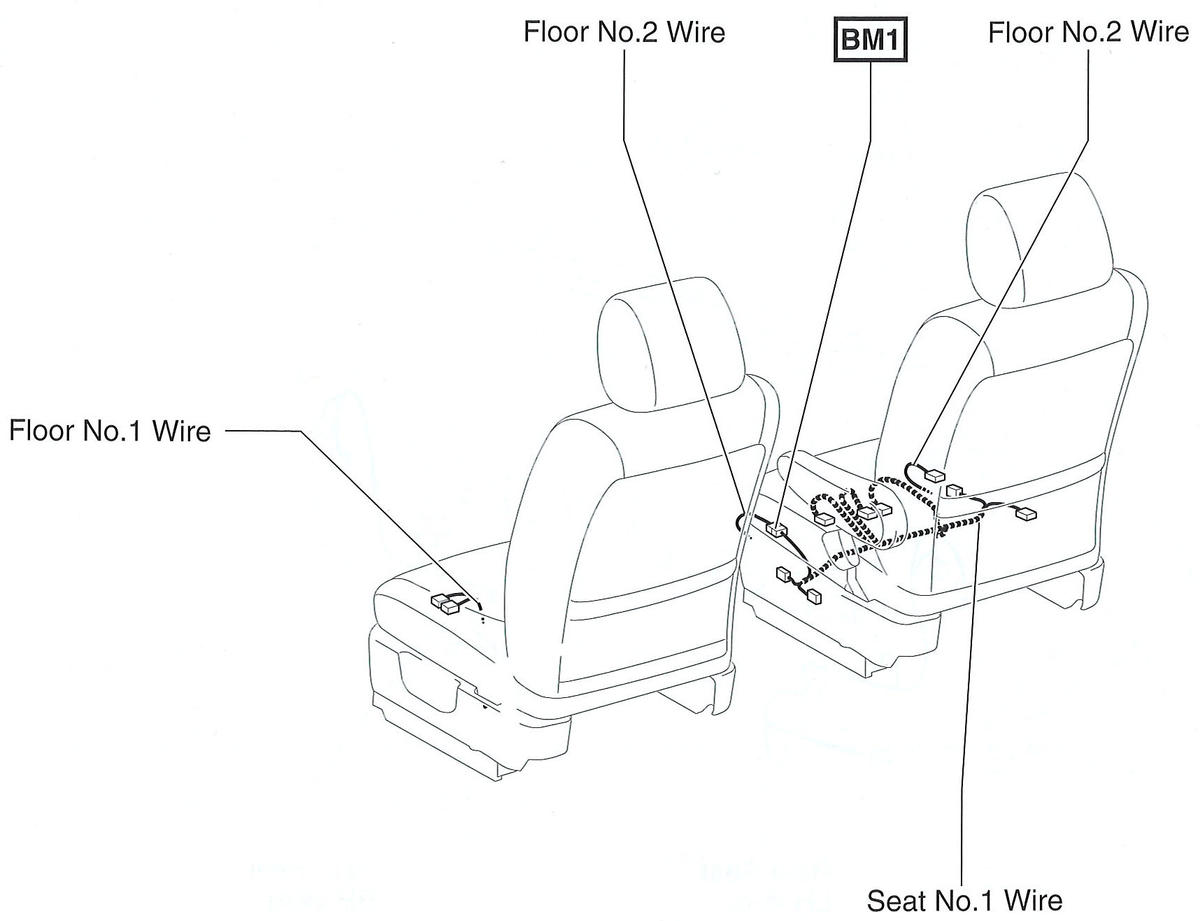

Fig 14: Front Seats

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Engine Room J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: R/B No. 3 (Auto A/C)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: R/B No. 4

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE COMPARTMENT RELAY BLOCK NO. 4 RELAY IDENTIFICATION

RELAY DESCRIPTION
DRL No.3 Relay
DRL No.2 Relay
DRL No.4 Relay

Fig 21: R/B No. 5

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE COMPARTMENT RELAY BLOCK NO. 5 RELAY IDENTIFICATION

RELAY DESCRIPTION
VSC Fail Relay
VSC MTR Relay

Fig 22: R/B No. 6

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE COMPARTMENT RELAY BLOCK NO. 6 RELAY IDENTIFICATION

RELAY DESCRIPTION
BRK Relay
A/F Relay

Fig 23: Driver Side J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRIVER'S SIDE JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Tail Relay
Fog Relay
IG1 Relay
PWR Relay
ACC Relay

Fig 24: Dash

Fig 25: Vehicle Overview

Fig 26: Rear No. 2 Seat

Fig 27: Rear No. 2 Seat

Fig 28: Front Seat W/ Power Seat

Fig 29: Front Seats

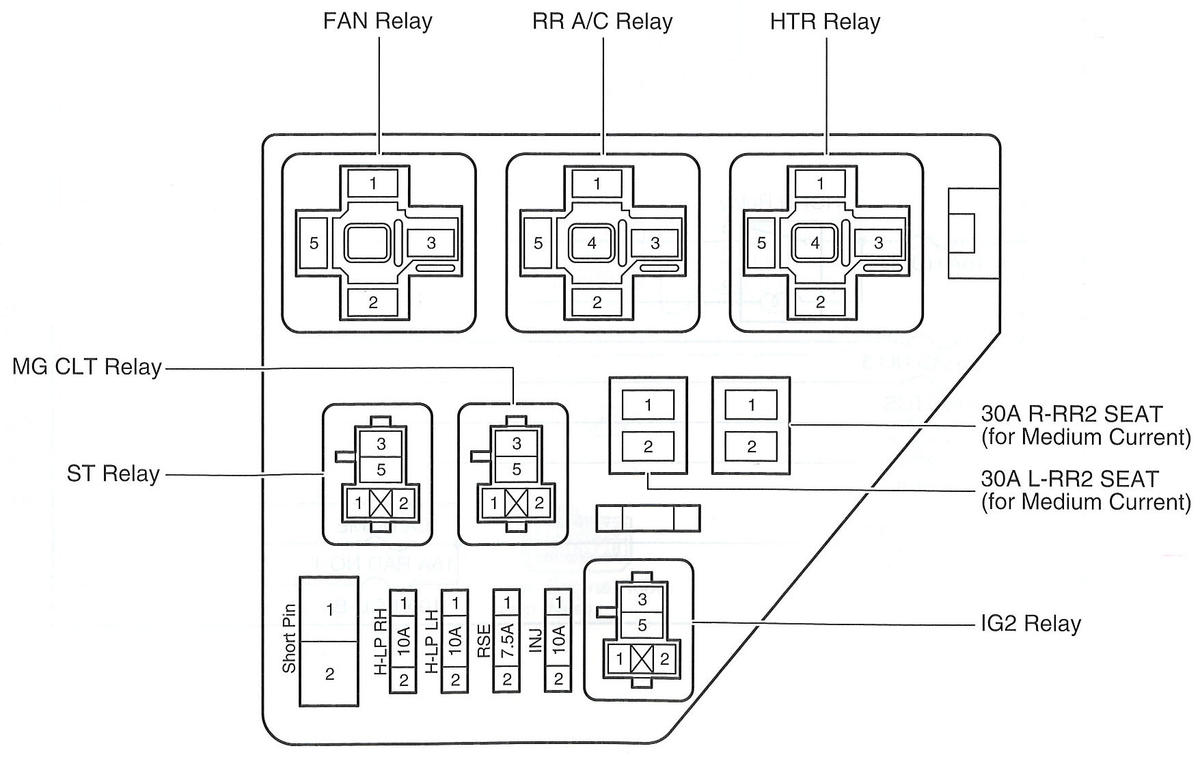

Fig 30: R/B No. 3 (Manual A/C)

Fig 31: R/B No. 7

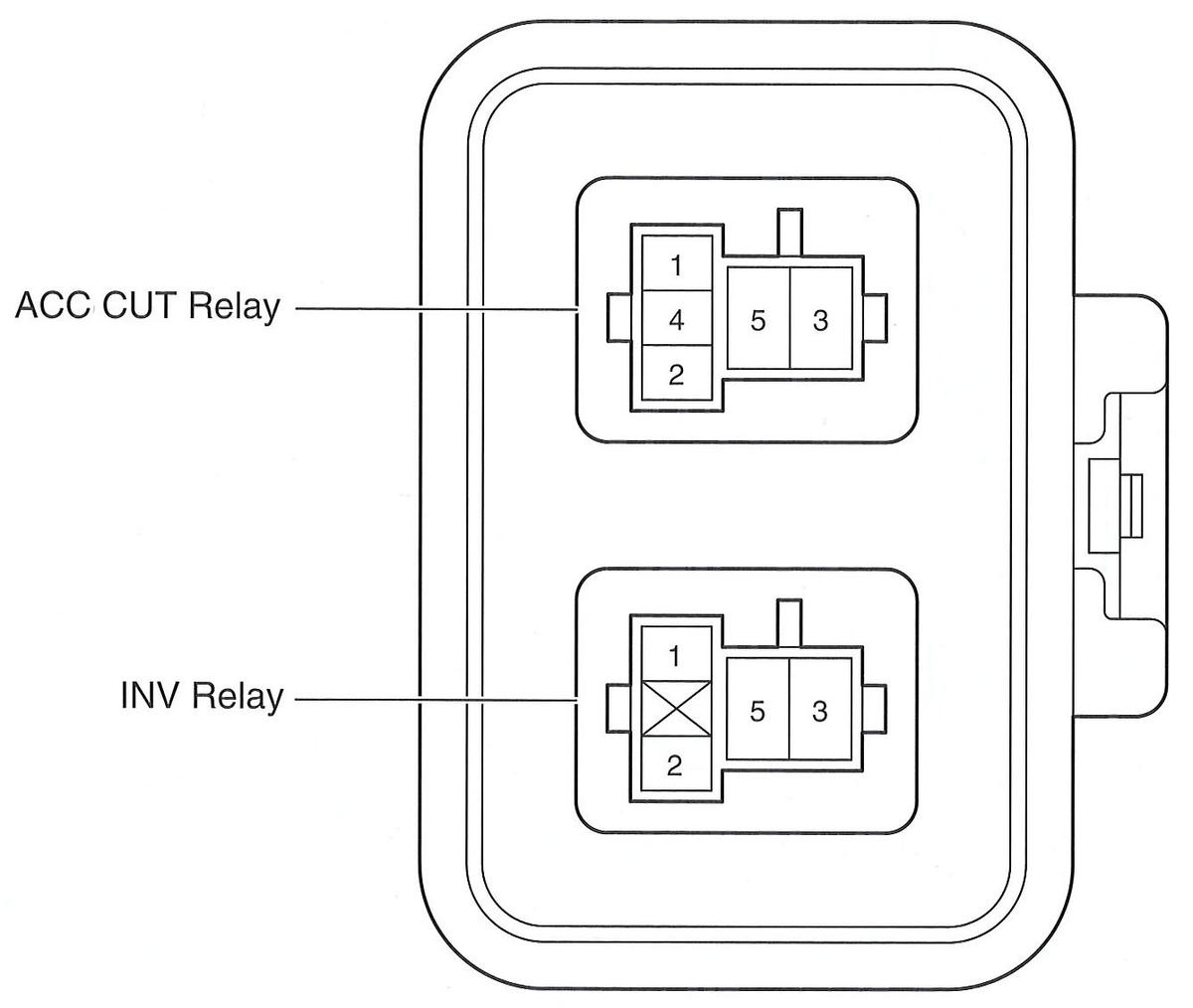

Fig 32: R/B No. 8

Fig 33: Vehicle Overview

Fig 34: Vehicle Overview
